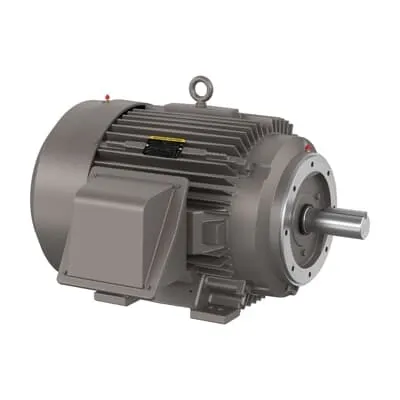

ABB 7BCECR9754T Severe Duty Motor - CSA EEV, 75 HP
Part Number: 7BCECR9754T
Quick Summary
ABB 7BCECR9754T Severe Duty Motor delivers reliable 75 HP performance for demanding mining and crushing applications. Engineers often struggle with uptime and maintenance costs for rugged industrial drives; this motor addresses those pain points with proven durability and long service life. Key certifications include CSA EEV, IP55 protection, and NEMA Premium Efficiency, supporting compliance and efficiency in harsh environments. With compatibility in 230/460 V, TEFC enclosure, and C-face mounting, it enables faster, safer installations. The result is reduced energy waste, lower maintenance, and higher uptime for continuous operation in heavy industry. This combination translates to lower total cost of ownership and greater productivity for daily plant operations.
Product Information
Extended Description
7BCECR9754T ABB: Severe Duty Motor 75 Hp 230 V (CECR9754T)
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
EGAUT001EXPU
Warranty Return
Product under warranty must be returned
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
GBINS001EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
SGIND004EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
USABB014EXPU
Warranty Return
Product under warranty must be returned
ABB Type Designation
75HP,1780RPM,3PH,60HZ,365TC,TEFC,F1
Ambient Temperature
40 °C
Bearing
6313 | Ball
Bearing NDE
6313 | Ball
Brake Present
No
Brand / Label
Baldor-Reliance
Catalog Number
CECR9754T
Certification Agency
CSA EEV
Country of Origin
United States (US)
Customs Tariff Number
85015230
Dimension Diagram
617428-136: Dimension Sheet
Drive End Flange Type
C-Face
Duty Time
60 Min
ETIM 7
EC001851 - Electric motor
Efficiency Level
Premium Efficiency (NEMA 12-12)
Electrical Data
Enclosure Type
TEFC
Frame Material
Iron
Frame Size
365
Frequency (f)
60 Hz
Global Commercial Alias
CECR9754T
Gross Volume
42126 inÂł
Gross Weight
951 lb
IDEA Granular Category Code (IGCC)
1328 >> Multi phase motor AC
IP Class
IP55
Insulation Class
F
Invoice Description
75HP,1780RPM,3PH,60HZ,365TC,TEFC,F1
Made To Order
No
Maximum Speed
3600 r/min
Medium Description
Crusher Severe Duty, 75 HP, 1800 RPM, Frame Size 365Tc, C-Face Mounting, 3 Phase, TEFC Enclosure, 230/460 V, 60 Hz (CECR9754T)
Minimum Order Quantity
1 piece
Motor Base Type
Foot Mounted
Motor Frame Size
365TC
Motor Frame Suffix
TC
Mounting Orientation
Horizontal
Mounting Position
F1
NEMA Design Code
A
Number of Phases
3
Number of Poles
4P
Number of Poles (High)
4
Number of Speeds
Single Speed
Order Multiple
1 piece
Output Power
75 Hp
Power Factor
84 %
Product Name
Crusher Severe Duty
Product Net Depth / Length
42 in
Product Net Height
29.5 in
Product Net Weight
951 lb
Product Net Width
34 in
Product Type
Undefined
Quote Only
No
Rated Current (In)
175 A | 87.5 A
Rated Efficiency
95.40 %
Rated Speed
1780 r/min
Selling Unit of Measure
piece
Service Factor
1.25
Shaft Diameter
2.37 in
Short Description
75 HP, 1800 RPM, Frame Size 365Tc, C-Face, 3 PH, TEFC, 230/460 V
Standards
NEMA
Starting of Motor
Direct On Line
Stocked At (Warehouses)
China | Alabama, United States | Alaska, United States
Synchronous Speed (vsyn)
1800 r/min
Type of Duty
Continuous
UNSPSC
26101115
Voltage Rating
230 V | 460 V
Feature: Severe Duty design yields high torque headroom and robust construction → Business Impact: Reduces unscheduled downtime and maintenance costs → Application: Crushers, conveyors, and other heavy-duty industrial equipment in harsh environments. Feature: TEFC enclosure with IP55 protection → Business Impact: Enhanced dust and moisture resistance lowers failure risk and extends service life → Application: Outdoor and dusty plant floors, mining sites, and material handling. Feature: 75 HP at 230/460 V, 1780 RPM, 60 Hz, 365TC frame → Business Impact: Consistent high-performance operation with energy-efficient speed and torque → Application: Continuous operation in crushers and processing lines. Feature: Premium Efficiency (NEMA) and CSA EEV certification → Business Impact: Lower energy costs and regulatory compliance → Application: Factory floors prioritizing green manufacturing and safety standards. Feature: Direct On Line starting and 1.25 service factor → Business Impact: Quick startup, reliable torque availability, and resilience to load surges → Application: Belt conveyors, crushers, and fans requiring immediate engagement. Feature: C-Face mounting with foot-mounted base → Business Impact: Easy installation and flexible layout planning → Application: Retrofit projects and new builds in constrained plant layouts.
Get a Quick Quote for a ABB 7BCECR9754T
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 7BCECR9754T?
Enquire Now
FAQs
The 7BCECR9754T is a 365TC frame, foot-mounted with C-Face mounting, designed for straightforward retrofit into existing bases. Ensure a level base, solid foundation, and compatible shaft diameter of 2.37 in. Verify 230/460 V supply and a 60 Hz drive system. The unit supports DOL starting and requires appropriate motor controls to handle peak torques during startup. Include proper ventilation for TEFC enclosure and consider alignment tools for a safe, compliant installation.
Plan for 230/460 V dual-voltage operation, 60 Hz frequency, and three-phase power. Rated current is 175 A (In) / 87.5 A (depending on connection). The motor supports direct-on-line starting and has a 1.25 service factor for torque headroom. Ensure compatible VFD or soft-start if soft starting is desired, and confirm wiring protection per IEC/NEC guidelines for safe integration with plant controls.
Yes. The 75 HP, 1780 r/min rating, TEFC enclosure, IP55 protection, and robust 365TC frame are optimized for crusher duty. The design offers high torque at start, reliable performance under continuous operation, and resistance to dust and moisture commonly found in mining sites. CSA EEV certification and premium efficiency support regulatory compliance and energy efficiency in harsh processing environments.
The motor carries CSA EEV certification and IP55 enclosure protection, indicating compliance with electrical safety standards and dust/moisture protection. It aligns with NEMA Premium Efficiency guidelines, ensuring energy efficiency. The TEFC enclosure further contributes to reliability in dusty, high-temperature settings. These features support regulatory compliance, safer operation, and reduced energy usage in demanding industrial applications.
The motor’s Premium Efficiency and CSA EEV certification contribute to lower energy costs over time, while the IP55 TEFC design and 75 HP rating reduce maintenance frequency in harsh environments. Quick installation and 1.25 service factor improve uptime and startup reliability. Combined with robust bearings and a durable frame, users typically see lower maintenance labor, fewer unscheduled outages, and improved overall plant productivity.
