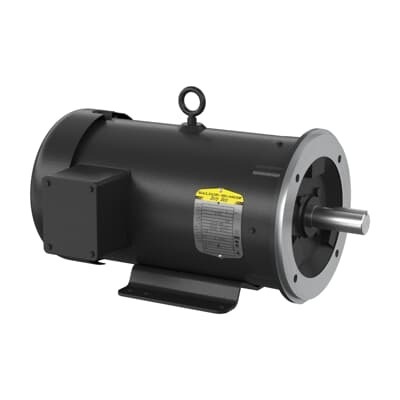

ABB 7BCEDM3615T Motor - 5HP, 230V/460V, TEFC, NEMA Premium
Part Number: 7BCEDM3615T
Quick Summary
ABB 7BCEDM3615T is a severe-duty motor designed for continuous operation in demanding industrial processes. It helps drive heavy loads with reliable torque in applications such as conveyors, pumps, and fans. The challenge for engineers often lies in balancing efficiency, reliability, and regulatory compliance in harsh environments. This model features NEMA Premium efficiency and CSA EEV and UR listings, supporting energy savings and safety. With a foot-mounted base, horizontal mounting, and a TEFC enclosure, installation and service are streamlined. Combining robust construction with widely available spare parts, this motor delivers predictable performance, reduces downtime, and supports favorable total cost of ownership over time.
Product Information
Extended Description
7BCEDM3615T ABB: Severe Duty Motor 5 Hp 230 V (CEDM3615T)
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
EGAUT001EXPU
Warranty Return
Product under warranty must be returned
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
GBINS001EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
SGIND004EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
USABB014EXPU
Warranty Return
Product under warranty must be returned
ABB Type Designation
5HP,1750RPM,3PH,60HZ,184TC,3642M,TE
Ambient Temperature
40 °C
Bearing
6206, Ball
Bearing NDE
6205
Brake Present
No
Brand / Label
Baldor-Reliance®
Catalog Number
CEDM3615T
Certification Agency
CCSA US | CSA EEV | NEMA_PREMIUM | UR
Country of Origin
United States (US)
Customs Tariff Number
85015220
Dimension Diagram
36LYQ736: Dimension Sheet
Drive End Flange Type
C-Face
ETIM 7
EC001851 - Electric motor
Efficiency Level
Premium Efficiency (NEMA 12-12)
Electrical Data
Enclosure Type
TEFC
Frame Material
Steel
Frame Size
184
Frequency (f)
60 Hz
Global Commercial Alias
CEDM3615T
Gross Volume
5274.135 in³
Gross Weight
108 lb
IDEA Granular Category Code (IGCC)
1325 >> General purpose motor AC
Insulation Class
F
Invoice Description
5HP,1750RPM,3PH,60HZ,184TC,3642M,TEFC,F1
Made To Order
No
Maximum Speed
2700 r/min
Medium Description
Dirty Duty Autophoretic, 5 HP, 1800 RPM, Frame Size 184Tc, C-Face Mounting, 3 Phase, TEFC Enclosure, 230/460 V, 60 Hz (CEDM3615T)
Minimum Order Quantity
1 piece
Motor Base Type
Foot Mounted
Motor Frame Size
184TC
Mounting Orientation
Horizontal
Mounting Position
F1
NEMA Design Code
B
Number of Phases
3
Number of Poles
4P
Number of Poles (High)
4
Number of Speeds
single_speed
Order Multiple
1 piece
Output Power
5 Hp
Power Factor
78 %
Product Name
Dirty Duty Autophoretic
Product Net Depth / Length
21.625 in
Product Net Height
15.125 in
Product Net Weight
108 lb
Product Net Width
16.125 in
Product Type
Undefined
Quote Only
No
Rated Current (In)
13.4 A | 6.7 A
Rated Efficiency
89.50 %
Rated Speed
1750 r/min
Selling Unit of Measure
piece
Service Factor
1.15
Shaft Diameter
1.13 in
Short Description
5 HP, 1800 RPM, Frame Size 184Tc, C-Face, 3 PH, TEFC, 230/460 V
Standards
NEMA
Starting of Motor
Direct on line
Stocked At (Warehouses)
China | Alabama, United States | Alaska, United States
Synchronous Speed (vsyn)
1800 r/min
Type of Duty
Continuous
UNSPSC
26101112
Voltage Rating
230 V | 460 V
Feature → Business Impact → Application: The TEFC enclosure and rugged 184TC frame deliver protection against dirt, oil, and heat, extending motor life in dirty duty autophoretic environments; this reduces maintenance costs and downtime for conveyors and pumps. Feature → Business Impact → Application: 5 HP output at 230/460 V with 60 Hz operation provides substantial power for mid-sized drives while preserving efficiency; ideal for batch processing lines and packaging systems where precise speed and torque are essential. Feature → Business Impact → Application: NEMA Premium efficiency plus CSA EEV and UR certification translates to measurable energy savings and regulatory confidence, enabling compliant operation in food, chemical, or textile facilities. Feature → Business Impact → Application: SHafts and mounting are standardized for quick swaps; foot-mounted, C-face drive end, and horizontal orientation simplify installation, alignment, and maintenance in retrofit projects. Feature → Business Impact → Application: Service factor of 1.15 allows capacity headroom for short-term overloads, improving machine uptime in heavy-duty conveyors, fans, and pumps. Feature → Business Impact → Application: Direct-on-line starting provides immediate torque at startup, reducing drive hardware complexity and improving startup reliability in automated lines.
Get a Quick Quote for a ABB 7BCEDM3615T
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 7BCEDM3615T?
Enquire Now
FAQs
Install the 7BCEDM3615T as a foot-mounted, horizontally oriented motor with TEFC enclosure. Use the 184TC frame dimensions and 1.13 in shaft diameter to align couplings precisely. It supports direct mounting to standard bases and C-Face drive ends for straightforward alignment and serviceability.
The motor delivers 5 HP at 230/460 V, 60 Hz, 3-phase with a rated efficiency of 89.50%. Rated current is 13.4 A (line) and 6.7 A (idle/low-load). It has a service factor of 1.15 and an insulation class of F, suitable for continuous operation in demanding environments.
Ideal for heavy-duty conveyors, pumps, fans, and other continuous-process equipment. The 184TC frame, TEFC enclosure, and 4-pole design support reliable torque at 1750 r/min nominal speed, with compatibility for 230/460 V systems and 60 Hz power in harsh industrial settings.
The 7BCEDM3615T is listed for NEMA Premium efficiency and CSA EEV, with UR listing for safety compliance. These certifications support energy savings, regulatory acceptance, and safer operation in regulated facilities.
Robust construction, standardized mounting, and direct-on-line starting reduce installation time and maintenance intervals. NEMA Premium efficiency lowers energy costs, while the 1.15 service factor and durable enclosure reduce downtime, contributing to a favorable total cost of ownership over the motor's life cycle.
