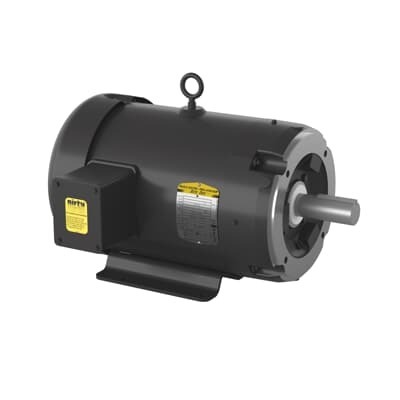

ABB 7BCEDM3708T Motors - 5HP TEFC 230/460V NEMA Premium
Part Number: 7BCEDM3708T
Quick Summary
ABB 7BCEDM3708T is a severe-duty motor designed for demanding 3-phase drives in harsh industrial environments. Engineers often struggle with downtime, maintenance costs, and inconsistent performance when equipment is exposed to dust and heat in dirty-duty settings. It carries critical certifications such as NEMA Premium efficiency, CSA EEV, and UR recognition, underscoring reliability and safety. With dual voltage 230/460 V, TEFC protection, and a compact 215TC footprint, installation is simplified and spare parts are common across Baldor-Reliance ecosystems. This combination supports reliable continuous operation, reduced lifecycle costs, and smoother procurement workflows for plant-wide motor upgrades.
Product Information
Extended Description
7BCEDM3708T ABB: Severe Duty Motor 5 Hp 230 V (CEDM3708T)
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
EGAUT001EXPU
Warranty Return
Product under warranty must be returned
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
GBINS001EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
SGIND004EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
USABB014EXPU
Warranty Return
Product under warranty must be returned
ABB Type Designation
5HP,1165RPM,3PH,60HZ,215TC,3752M,TE
Ambient Temperature
40 °C
Bearing
6307, Sealed Bearing
Bearing NDE
6206
Brake Present
No
Brand / Label
Baldor-Reliance®
Catalog Number
CEDM3708T
Certification Agency
CCSA US | CSA EEV | NEMA_PREMIUM | UR
Country of Origin
United States (US)
Customs Tariff Number
85015220
Dimension Diagram
37LYN854: Dimension Sheet
Drive End Flange Type
C-Face
ETIM 7
EC001851 - Electric motor
Efficiency Level
Premium Efficiency (NEMA 12-12)
Electrical Data
Enclosure Type
TEFC
Frame Material
Steel
Frame Size
215
Frequency (f)
60 Hz
Global Commercial Alias
CEDM3708T
Gross Volume
7561.383 inÂł
Gross Weight
181 lb
IDEA Granular Category Code (IGCC)
1328 >> Multi phase motor AC
Insulation Class
F
Invoice Description
5HP,1165RPM,3PH,60HZ,215TC,3752M,TEFC,F1
Made To Order
No
Maximum Speed
1800 r/min
Medium Description
Dirty Duty Autophoretic, 5 HP, 1200 RPM, Frame Size 215Tc, C-Face Mounting, 3 Phase, TEFC Enclosure, 230/460 V, 60 Hz (CEDM3708T)
Minimum Order Quantity
1 piece
Motor Base Type
Foot Mounted
Motor Frame Size
215TC
Mounting Orientation
Horizontal
Mounting Position
F1
NEMA Design Code
A
Number of Phases
3
Number of Poles
6P
Number of Poles (High)
6
Number of Speeds
single_speed
Order Multiple
1 piece
Output Power
5 Hp
Power Factor
71 %
Product Name
Dirty Duty Autophoretic
Product Net Depth / Length
26.375 in
Product Net Height
17.375 in
Product Net Weight
181 lb
Product Net Width
16.5 in
Product Type
Undefined
Quote Only
No
Rated Current (In)
14.4 A | 7.2 A
Rated Efficiency
89.50 %
Rated Speed
1165 r/min
Selling Unit of Measure
piece
Service Factor
1.15
Shaft Diameter
1.38 in
Short Description
5 HP, 1200 RPM, Frame Size 215Tc, C-Face, 3 PH, TEFC, 230/460 V
Standards
NEMA
Starting of Motor
Direct on line
Stocked At (Warehouses)
China | Alabama, United States | Alaska, United States
Synchronous Speed (vsyn)
1200 r/min
Type of Duty
Continuous
UNSPSC
26101115
Voltage Rating
230 V | 460 V
The TEFC enclosure and rugged steel frame provide robust protection against dust, moisture, and vibration, reducing downtime and maintenance while extending motor life in dirty-duty autophoretic applications. Premium efficiency (NEMA Premium) lowers energy consumption on long-running cycles, delivering tangible operating-cost savings and a faster return on investment for continuous-process lines. Dual voltage support at 230/460 V with 60 Hz input, 3-phase operation, and a 215TC frame simplifies integration into existing installations and minimizes spare-parts inventory, which is particularly valuable for multi-site deployments. Sealed 6307 bearings and an insulation class F design enhance reliability in challenging environments, while the Direct-On-Line starting method and 6-pole, 1165 rpm design support easy commissioning and predictable startup behavior. The horizontal mounting (F1) and footprint compatibility with standard base plates streamline retrofits and new-build projects alike, improving overall project timelines and maintenance planning. With a 5 HP rating and TEFC enclosure, the motor is well-suited for conveyors, mixers, and other heavy-duty drives across manufacturing sectors, delivering proven performance in continuous-duty service.
Get a Quick Quote for a ABB 7BCEDM3708T
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 7BCEDM3708T?
Enquire Now
FAQs
The ABB 7BCEDM3708T is designed for direct-on-line starting with a three-phase 60 Hz supply and a TEFC enclosure. Mount it horizontally on a standard 215TC base, and wire for either 230 V or 460 V per the nameplate. Ensure proper voltage configuration and secure alignment to prevent misalignment that can impact efficiency and bearing life.
This motor carries NEMA Premium efficiency, CSA EEV, and UR recognized certifications, with additional listing references such as CCSA US. These certifications indicate energy efficiency, electrical safety, and compliance with recognized industry standards, helping you meet internal sustainability goals while simplifying regulatory approvals for product installations and audits.
Yes. The 7BCEDM3708T uses a TEFC enclosure and 6307 sealed bearings, designed for dusty and dirty duty conditions. Coupled with a 5 HP rating, 60 Hz operation, and a robust 215TC frame, it provides reliable continuous performance in harsh environments typical of autophoretic or abrasive processes.
Maintenance is minimized by a sealed bearing design and a rugged TEFC enclosure, while standard distributor policies apply for warranty. The data indicates warranty terms require returned units for warranty assessment. Regular inspection of mounting, shaft alignment, and bearing condition is recommended to sustain peak efficiency and prolong motor life.
Expect ROI from premium efficiency reducing energy consumption during long operating cycles, plus lower maintenance due to sealed bearings and durable construction. Dual voltage capability reduces inventory and simplifies upgrades across multiple facilities, while a robust enclosure and frame size support extended service life in continuous-duty applications, delivering predictable total cost of ownership improvements.
