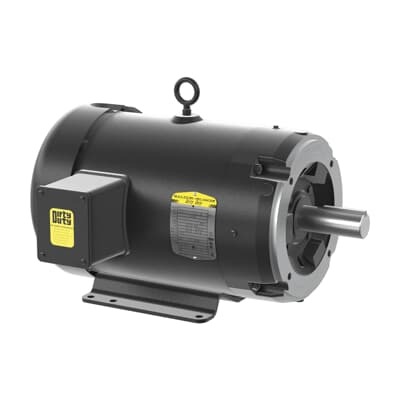

ABB 7BCEDM3709T Motor - Premium Efficiency NEMA A
Part Number: 7BCEDM3709T
Quick Summary
ABB 7BCEDM3709T LV Severe Duty Motor provides high-efficiency three-phase power for demanding industrial drives. Users struggle with energy waste and downtime; this motor reduces both through premium efficiency and robust TEFC design. It meets CSA US, CSA EEV, and UR certifications to support compliance in regulated facilities. Engineered for continuous operation in the US market, it complements energy management initiatives and standardizes maintenance with common frame 213TC. This motor's 2-pole, 3520 r/min rating aligns with typical 60 Hz systems, enabling straightforward integration with standard drives. Designed for continuous operation in US facilities, it supports energy-management initiatives and predictable maintenance cycles.
Product Information
Extended Description
7BCEDM3709T ABB: Severe Duty Motor 7.50 Hp 230 V (CEDM3709T)
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
EGAUT001EXPU
Warranty Return
Product under warranty must be returned
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
GBINS001EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
SGIND004EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
USABB014EXPU
Warranty Return
Product under warranty must be returned
ABB Type Designation
7.5HP,3520RPM,3PH,60HZ,213TC,3728M,
Ambient Temperature
40 °C
Bearing
6307, Sealed Bearing
Bearing NDE
6206
Brake Present
No
Brand / Label
Baldor-Reliance
Catalog Number
CEDM3709T
Certification Agency
CCSA US | CSA EEV | UR
Country of Origin
United States (US)
Customs Tariff Number
85015220
Dimension Diagram
37LYN854: Dimension Sheet
Drive End Flange Type
C-Face
ETIM 7
EC001851 - Electric motor
Efficiency Level
Premium Efficiency (NEMA 12-12)
Electrical Data
Enclosure Type
TEFC
Frame Material
Steel
Frame Size
Undefined
Global Commercial Alias
CEDM3709T
Gross Volume
7561.383 in³
Gross Weight
138 lb
IDEA Granular Category Code (IGCC)
1328 >> Multi phase motor AC
Insulation Class
F
Invoice Description
7.5HP,3520RPM,3PH,60HZ,213TC,3728M,TEFC
Made To Order
No
Maximum Speed
5400 r/min
Medium Description
Frame Size 213Tc, C-Face Mounting, 3 Phase, TEFC Enclosure, (CEDM3709T)
Minimum Order Quantity
1 piece
Motor Base Type
Rigid
Motor Frame Size
213TC
Mounting Orientation
Horizontal
Mounting Position
F1
NEMA Design Code
A
Number of Phases
3
Number of Poles
2P
Number of Poles (High)
2
Number of Speeds
Single Speed
Order Multiple
1 piece
Output Power
7.50 Hp
Power Factor
84 %
Product Name
LV Severe Duty Motors
Product Net Depth / Length
26.375 in
Product Net Height
17.375 in
Product Net Weight
138 lb
Product Net Width
16.5 in
Product Type
Undefined
Quote Only
No
Rated Current (In)
18 A | 9 A
Rated Efficiency
89.50 %
Rated Speed
3520 r/min
Selling Unit of Measure
piece
Service Factor
1.15
Shaft Diameter
1.38 in
Short Description
Frame Size 213Tc, C-Face, 3 PH, TEFC,
Standards
NEMA
Starting of Motor
Direct On Line
Stocked At (Warehouses)
China | Alabama, United States | Alaska, United States
Synchronous Speed (vsyn)
3600 r/min
Type of Duty
Continuous
UNSPSC
26101115
Voltage Rating
230 V | 460 V
Feature → Business Impact → Application: 7.5 HP output delivers ample torque for demanding loads such as conveyors and pumps, enabling reliable process flow and reducing gear train stress. This translates to improved uptime and longer service life in material handling and HVAC applications. Feature → Business Impact → Application: Premium efficiency (89.50%) and 84% power factor lower energy consumption and heat generation, cutting operating costs and improving motor thermal margins in continuous-duty environments. Feature → Business Impact → Application: TEFC enclosure with a steel frame (213TC) and C-face drive end flange provides rugged installation and easy retrofits, minimizing enclosure exposure and simplifying alignment in dusty or humid plants like foundries and packaging lines. Feature → Business Impact → Application: 3-phase, 60 Hz operation at 230/460 V supports flexible electrical sourcing and straightforward integration with existing drives and control panels, reducing wiring complexity in retrofit projects. Feature → Business Impact → Application: Direct On Line starting, 1.15 service factor, and a 2-pole design deliver strong startup torque and headroom for variable loads, improving startup reliability on conveyors and fans. Feature → Business Impact → Application: Stocked at multiple warehouses with 0 day lead time, improving spare-part availability and maintenance planning for critical lines in manufacturing and processing facilities. Additional note: Alignment with NEMA design code A and 40 °C ambient rating supports compliant performance in standard facilities, while a 1.38 in shaft diameter and 1.38 in standard shaft provide compatibility with common couplings and belts.
