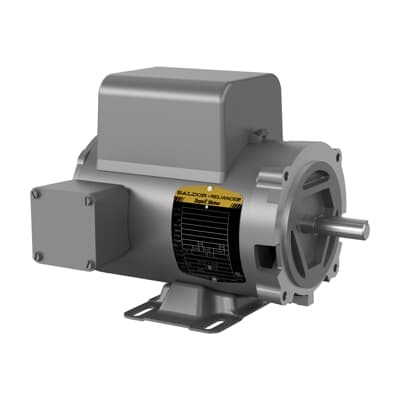

ABB CEL11301 General Purpose Motor - 0.33 HP, 115 V
Part Number: 7BCEL11301
Quick Summary
ABB CEL11301 General Purpose Motor delivers reliable 0.33 HP performance at 115 V for open-frame equipment used in small conveyors, fans, and pumps. For engineers and procurement teams, the challenge is selecting a compact, durable motor that fits tight spaces while delivering steady life in real-world line conditions. This model aligns with recognized standards such as NEMA and UL/cUR safety recognition, supports a 1-phase, 60 Hz supply, and offers a robust 56C frame with C-face mounting for straightforward installation. With open enclosure design and straightforward wiring, it also enables quicker maintenance and easier retrofits, helping OEMs reduce downtime and total cost of ownership without sacrificing performance.
Product Information
Extended Description
7BCEL11301 ABB: General Purpose Motor 0.33 Hp 115 V (CEL11301)
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
EGAUT001EXPU
Warranty Return
Product under warranty must be returned
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
GBINS001EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
SGIND004EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
USABB014EXPU
Warranty Return
Product under warranty must be returned
ABB Type Designation
.33HP,1740RPM,1PH,60HZ,56C,3418LC,O
Ambient Temperature
40 °C
Bearing
6203 | Ball
Bearing NDE
6203 | Ball
Brake Present
No
Brand / Label
Baldor-Reliance
Catalog Number
CEL11301
Certification Agency
C UR US ENERGY
Country of Origin
United States (US)
Customs Tariff Number
85013100
Dimension Diagram
34LYF869: Dimension Sheet
Drive End Flange Type
C-Face
Duty Time
60 Min
ETIM 7
EC001851 - Electric motor
Efficiency Level
2015 Small Motor Standard | Not Regulated / Exempt
Electrical Data
Enclosure Type
OPEN
Frame Material
Steel
Frame Size
56
Frequency (f)
60 Hz
Global Commercial Alias
CEL11301
Gross Volume
2110.969 inÂł
Gross Weight
27 lb
IDEA Granular Category Code (IGCC)
1329 >> Single phase motor AC
Insulation Class
B
Invoice Description
.33HP,1740RPM,1PH,60HZ,56C,3418LC,OPEN,F
Made To Order
No
Medium Description
General Purpose 1PH Open, 0.33 HP, 1800 RPM, Frame Size 56C, C-Face Mounting, 1 Phase, OPEN Enclosure, 115/230 V, 60 Hz (CEL11301)
Minimum Order Quantity
1 piece
Motor Base Type
Foot Mounted
Motor Frame Size
56C
Motor Frame Suffix
C
Mounting Orientation
Horizontal
Mounting Position
F1
NEMA Design Code
N
Number of Phases
1
Number of Poles
4P
Number of Poles (High)
4
Number of Speeds
Single Speed
Order Multiple
1 piece
Output Power
0.33 Hp
Power Factor
85 %
Product Name
General Purpose 1PH Open
Product Net Depth / Length
16.5 in
Product Net Height
11.125 in
Product Net Weight
27 lb
Product Net Width
11.5 in
Product Type
Undefined
Quote Only
No
Rated Current (In)
3.4 A | 1.7 A
Rated Efficiency
72.40 %
Rated Speed
1740 r/min
Selling Unit of Measure
piece
Service Factor
1.35
Shaft Diameter
0.63 in
Short Description
0.33 HP, 1800 RPM, Frame Size 56C, C-Face, 1 PH, OPEN, 115/230 V
Standards
NEMA
Starting of Motor
Direct On Line
Stocked At (Warehouses)
China | Alabama, United States | Alaska, United States
Synchronous Speed (vsyn)
1800 r/min
Type of Duty
Continuous
UNSPSC
26101116
Voltage Rating
115 V | 230 V
Feature → Business Impact → Application: The CEL11301 operates on 1-phase 60 Hz power with 115/230 V flexibility, enabling seamless integration into existing 1PH systems and reducing control hardware requirements. This flexibility translates to lower installation cost and faster commissioning on conveyors, pumps, and fans in light industrial lines. Feature → Business Impact → Application: A 56C frame with C-face mounting and foot-mounted base provides a compact footprint and straightforward mounting compatibility, accelerating retrofit projects and simplifying alignment in cramped control cabinets. Feature → Business Impact → Application: Open enclosure and a rated speed of 1740 r/min support effective cooling and easy access for maintenance, minimizing downtime and improving uptime in continuous operations. Feature → Business Impact → Application: Efficiency of 72.40% and a service factor of 1.35 offer energy savings and reliable performance under short overloads, delivering lower operating costs for continuous-duty applications. Feature → Business Impact → Application: Ball bearings (6203) and insulation class B enhance reliability and vibration resilience, suitable for 40 °C ambient conditions in general manufacturing, reducing failure risk in demanding environments. Feature → Business Impact → Application: Weight around 27 lb and a compact 16.5 in depth fit into existing equipment footprints, enabling quick replacements and simpler shipping logistics during maintenance or part swaps. Long-tail keywords addressed include 1PH motor 60 Hz, 56C frame motor, open motor 115/230 V, C-face mounting motor, foot-mounted motor, NEMA motor, single-phase motor, small industrial motor, energy-efficient motor, general purpose motor.
Get a Quick Quote for a ABB 7BCEL11301
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 7BCEL11301?
Enquire Now
FAQs
Yes. The CEL11301 is designed as a 1-phase, 60 Hz motor compatible with 115/230 V input and a 56C frame. C-face mounting and a foot-mounted base simplify alignment and installation within compact control cabinets or open-machine configurations.
Schedule routine checks for bearing condition (6203 ball bearings) and insulation integrity (Class B). With an open enclosure, ensure adequate cooling and clean ventilation paths. Periodic inspection of shaft and mounting hardware reduces misalignment and vibration-related wear, keeping maintenance cycles predictable.
Yes, it’s a practical replacement for open-frame, 1PH equipment using a 56C frame. Consider confirming shaft diameter (0.63 in) and mounting compatibility, verifying voltage options (115/230 V), and ensuring control wiring supports direct-on-line starting. A close mechanical and electrical match minimizes downtime during swap-outs.
The motor adheres to NEMA standards and carries UL/cUR recognition for safety. While CE marking and IP ratings are not specified in the data, confirming local regulatory requirements is prudent for specific regions or hazardous environments and may require additional protective enclosures or shielding.
Benefits include energy savings from a 72.40% efficiency rating and reduced downtime thanks to robust bearings and reliable construction. The 1.35 service factor supports modest overloads without failure, and the open-frame, 56C design enables faster installation and simpler maintenance, delivering lower operating costs over the motor’s lifespan.
