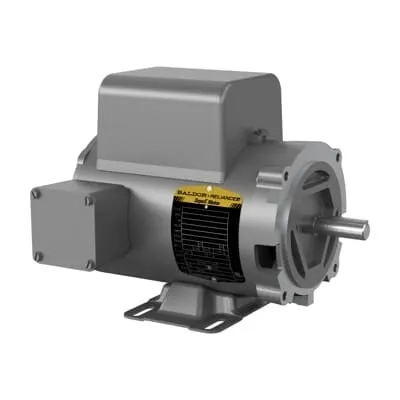

ABB 7BCEL11304 General Purpose Motor - NEMA 56C Open, 1PH
Part Number: 7BCEL11304
Quick Summary
General Purpose Motor ABB 7BCEL11304 powers small machinery in general industrial and equipment applications. If you need a reliable 1-phase solution with an open enclosure for easy serviceability, this unit minimizes downtime. With NEMA design standards and UL recognized certification, plus ready stock across multiple warehouses, it helps shorten procurement cycles. From a business perspective, the 56C frame and C-Face mounting support versatile integration into existing lines, while 115/230 V availability broadens compatibility.
Product Information
Extended Description
7BCEL11304 ABB: General Purpose Motor 0.5 Hp 115 V (CEL11304)
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
EGAUT001EXPU
Warranty Return
Product under warranty must be returned
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
GBINS001EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
SGIND004EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
USABB014EXPU
Warranty Return
Product under warranty must be returned
ABB Type Designation
.5HP,1725RPM,1PH,60HZ,56C,3424LC,OP
Ambient Temperature
40 °C
Bearing
6203 | Ball
Bearing NDE
6203 | Ball
Brake Present
No
Brand / Label
Baldor-Reliance
Catalog Number
CEL11304
Certification Agency
C UR US ENERGY
Country of Origin
United States (US)
Customs Tariff Number
85013100
Dimension Diagram
34LYF867: Dimension Sheet
Drive End Flange Type
C-Face
Duty Time
60 Min
ETIM 7
EC001851 - Electric motor
Efficiency Level
2015 Small Motor Standard | Not Regulated / Exempt
Electrical Data
Enclosure Type
OPEN
Frame Material
Steel
Frame Size
56
Frequency (f)
60 Hz
Global Commercial Alias
CEL11304
Gross Volume
2110.969 inÂł
Gross Weight
32 lb
IDEA Granular Category Code (IGCC)
1329 >> Single phase motor AC
Insulation Class
B
Invoice Description
.5HP,1725RPM,1PH,60HZ,56C,3424LC,OPEN,F1
Made To Order
No
Medium Description
General Purpose 1PH Open, 0.5 HP, 1800 RPM, Frame Size 56C, C-Face Mounting, 1 Phase, OPEN Enclosure, 115/230 V, 60 Hz (CEL11304)
Minimum Order Quantity
1 piece
Motor Base Type
Foot Mounted
Motor Frame Size
56C
Motor Frame Suffix
C
Mounting Orientation
Horizontal
Mounting Position
F1
NEMA Design Code
N
Number of Phases
1
Number of Poles
4P
Number of Poles (High)
4
Number of Speeds
Single Speed
Order Multiple
1 piece
Output Power
0.5 Hp
Power Factor
98 %
Product Name
General Purpose 1PH Open
Product Net Depth / Length
16.5 in
Product Net Height
11.125 in
Product Net Weight
32 lb
Product Net Width
11.5 in
Product Type
Undefined
Quote Only
No
Rated Current (In)
4.7 A | 2.35 A
Rated Efficiency
76.20 %
Rated Speed
1725 r/min
Selling Unit of Measure
piece
Service Factor
1.25
Shaft Diameter
0.63 in
Short Description
0.5 HP, 1800 RPM, Frame Size 56C, C-Face, 1 PH, OPEN, 115/230 V
Standards
NEMA
Starting of Motor
Direct On Line
Stocked At (Warehouses)
China | Alabama, United States | Alaska, United States
Synchronous Speed (vsyn)
1800 r/min
Type of Duty
Continuous
UNSPSC
26101116
Voltage Rating
115 V | 230 V
Voltage flexibility enables operation from common plant supplies, reducing the need for dedicated wiring and enabling simple retrofits across multiple lines. This 1PH 60 Hz motor delivers 0.5 HP at 1725 rpm within a compact 56C frame, supporting compact conveyors, pumps, and fans without demanding specialized drives. The open enclosure and C-Face drive end flange simplify installation and maintenance, allowing quick shaft alignment and gearbox coupling while minimizing downtime. With a nominal efficiency of 76.2% and a 98% power factor, running costs stay predictable and electrical noise is kept to a minimum in open plant environments. Durable 6203 ball bearings and insulation class B provide long service life in typical workshop conditions, and direct-on-line starting keeps control simple for maintenance teams. Stocked at multiple warehouses with 0 day lead time, it offers fast procurement for project kickoffs and spare parts planning.
Get a Quick Quote for a ABB 7BCEL11304
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 7BCEL11304?
Enquire Now
FAQs
Install by selecting the correct voltage (115V or 230V) for your supply, mount the motor on a compatible 56C footprint, and align the C-Face drive end with the gearbox or pulley system. Use foot mounting for a stable base, ensure horizontal orientation, and connect DOL starting as the control method. Verify shaft diameter of 0.63 inches for coupling compatibility and confirm 60 Hz operation before commissioning.
Key specs include 0.5 HP output at 1725 r/min on a 56C frame, supplied at 115V or 230V with 60 Hz, single phase, and 4 poles. Rated current is 4.7 A at one voltage and 2.35 A at the other, with a power factor around 98% and efficiency near 76.2%. Insulation class is B, and starting is Direct On Line.
Yes, the ABB 7BCEL11304 is designed for general purpose open-frame applications such as conveyors, pumps, and fans. Its 56C frame, C-Face mounting, and foot-mounted configuration enable straightforward integration with standard mechanical components. Open enclosure improves cooling, and the DOL start simplifies drive control, making it ideal for straightforward, low-to-moderate load schedules.
The motor is designed to meet NEMA standards and carries UL Recognized Component (UR) energy certification, supporting safe integration into U.S. and international assemblies. It is made in the United States and ships with certification lineage appropriate for general industrial use, providing confidence in compliance for standard manufacturing environments.
Warranty terms specify that the product is covered for warranty returns, with the note that products under warranty must be returned. The unit is stocked across multiple warehouses with 0 day lead time, enabling rapid replacements and minimizing downtime. Routine maintenance centers on standard bearings (6203) and accessible open-frame design for easy inspection and lubrication.
