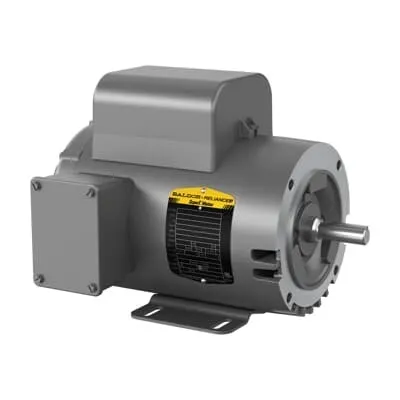

ABB CEL11310 General Purpose Motor - 1PH 115V, 56C
Part Number: 7BCEL11310
Quick Summary
ABB CEL11310 General Purpose Motor is a reliable single-phase motor designed for open-frame equipment in light industrial settings. It delivers 1 HP at 115 V with 1800 rpm on a compact 56C frame, making it ideal for small conveyors, pumps, and fans. A common challenge is selecting a motor that performs reliably under continuous duty in varied ambient conditions; this model supports continuous operation in up to 40 °C environments and offers direct-on-line starting for simple, cost-effective startups. With NEMA design compliance and UR-recognized safety labeling, it aligns with energy standards such as the 2015 Small Motor Standard. For procurement, stock availability across multiple warehouses reduces lead times and simplifies sourcing for OEM assemblies.
Product Information
Extended Description
7BCEL11310 ABB: General Purpose Motor 1 Hp 115 V (CEL11310)
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
EGAUT001EXPU
Warranty Return
Product under warranty must be returned
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
GBINS001EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
SGIND004EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
USABB014EXPU
Warranty Return
Product under warranty must be returned
ABB Type Designation
1HP,1750RPM,1PH,60HZ,56C,3528LC,OPE
Ambient Temperature
40 °C
Bearing
6205 | Ball
Bearing NDE
6203 | Ball
Brake Present
No
Brand / Label
Baldor-Reliance
Catalog Number
CEL11310
Certification Agency
C UR US ENERGY
Country of Origin
United States (US)
Customs Tariff Number
85015100
Dimension Diagram
35LYE021: Dimension Sheet
Drive End Flange Type
C-Face
Duty Time
60 Min
ETIM 7
EC001851 - Electric motor
Efficiency Level
2015 Small Motor Standard | Not Regulated / Exempt
Electrical Data
Enclosure Type
OPEN
Frame Material
Steel
Frame Size
56
Frequency (f)
60 Hz
Global Commercial Alias
CEL11310
Gross Volume
2110.969 in³
Gross Weight
44 lb
IDEA Granular Category Code (IGCC)
1329 >> Single phase motor AC
Insulation Class
F
Invoice Description
1HP,1750RPM,1PH,60HZ,56C,3528LC,OPEN,F1
Made To Order
No
Medium Description
General Purpose 1PH Open, 1 HP, 1800 RPM, Frame Size 56C, C-Face Mounting, 1 Phase, OPEN Enclosure, 115/230 V, 60 Hz (CEL11310)
Minimum Order Quantity
1 piece
Motor Base Type
Foot Mounted
Motor Frame Size
56C
Motor Frame Suffix
C
Mounting Orientation
Horizontal
Mounting Position
F1
NEMA Design Code
L
Number of Phases
1
Number of Poles
4P
Number of Poles (High)
4
Number of Speeds
Single Speed
Order Multiple
1 piece
Output Power
1 Hp
Power Factor
89 %
Product Name
General Purpose 1PH Open
Product Net Depth / Length
16.5 in
Product Net Height
11.125 in
Product Net Weight
44 lb
Product Net Width
11.5 in
Product Type
Undefined
Quote Only
No
Rated Current (In)
8.8 A | 4.4 A
Rated Efficiency
82.60 %
Rated Speed
1750 r/min
Replaced Product ID (OLD)
7B35E021G109
Selling Unit of Measure
piece
Service Factor
1.15
Shaft Diameter
0.63 in
Short Description
1 HP, 1800 RPM, Frame Size 56C, C-Face, 1 PH, OPEN, 115/230 V
Standards
NEMA
Starting of Motor
Direct On Line
Stocked At (Warehouses)
China | Alabama, United States | Alaska, United States
Synchronous Speed (vsyn)
1800 r/min
Type of Duty
Continuous
UNSPSC
26101116
Voltage Rating
115 V | 230 V
Feature: 1 HP, 60 Hz, 115 V single-phase performance. Business Impact: Provides robust, cost-effective power for light industrial tasks without oversized requirements, reducing energy use and total cost of ownership. Application: Ideal for small conveyors, pumps, and fans in manufacturing lines. Feature: 56C frame with C-face mounting and foot-mounted base. Business Impact: Enables easy integration with standard frames and existing equipment, shortening installation time and minimizing custom fabrication. Application: Retrofit projects and OEM builds where space is at a premium. Feature: OPEN enclosure and 40 °C ambient tolerance. Business Impact: Improves heat dissipation and maintenance accessibility, lowering cooling needs and service downtime. Application: Open-floor or semi-exposed installations in warehouses and workshops. Feature: Direct On Line starting and simple wiring. Business Impact: Reduces upfront electrical complexity and startup costs while delivering reliable engagement during line starts. Application: Assembly lines and controlled startup environments. Feature: Insulation Class F and Rated Efficiency 82.60%. Business Impact: Enhances durability and energy efficiency, extending motor life and reducing operating costs over time. Application: Continuous duty applications with steady loads. Feature: Stocked At Warehouses and Global Availability. Business Impact: Shorter lead times and easier procurement for project timelines and maintenance schedules. Application: Global manufacturing facilities and repair depots needing rapid replacement parts.
Get a Quick Quote for a ABB 7BCEL11310
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 7BCEL11310?
Enquire Now
FAQs
CEL11310 uses a standard 56C frame with C-face mounting and a foot-mounted base, enabling straightforward integration with common OEM frames. When installing, align the shaft with existing couplings, secure with compatible mounting bolts, and connect to a 1PH 115V supply for direct-on-line startup. The motor’s open enclosure simplifies cooling and inspection in shared electrical panels.
Key specs include 1 HP output, 115 V nominal, 60 Hz frequency, 4-pole design with a rated speed of 1750 r/min (synchronous 1800 r/min), and a service factor of 1.15. This combination delivers reliable, constant torque for light-duty loads while maintaining efficiency and tolerable current draw of 8.8 A / 4.4 A. These specs support direct-on-line starting and predictable operation within typical 40 °C ambient conditions.
Yes. The motor is designed for open enclosure operation and a rated ambient temperature of up to 40 °C, making it appropriate for continuous duty in open or semi-open industrial spaces. For sustained use, ensure adequate ventilation and avoid excessive enclosure occlusion to maintain motor temperature within design limits.
CEL11310 carries NEMA design compatibility and UR-listed safety labeling, along with ENERGY-related safety certification. These certifications help meet industry safety expectations and facilitate regulatory compliance for light-industrial applications, including conveyors and pumps where recognized safety marks are required for supplier qualifications.
The motor’s F-class insulation and 82.60% rated efficiency support longer life and lower energy costs. Its simple installation, direct-on-line start, and standard 56C frame reduce downtime and spares complexity. With global stock availability, maintenance teams experience faster replacements and reduced downtime, delivering a favorable return on investment for applications with steady loads and moderate duty cycles.
