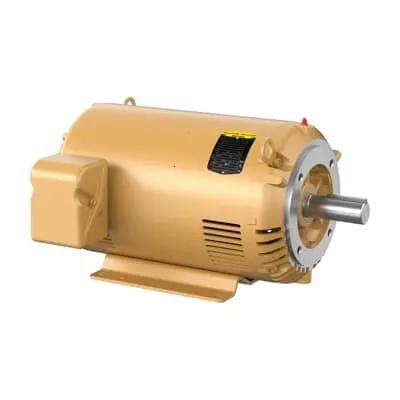

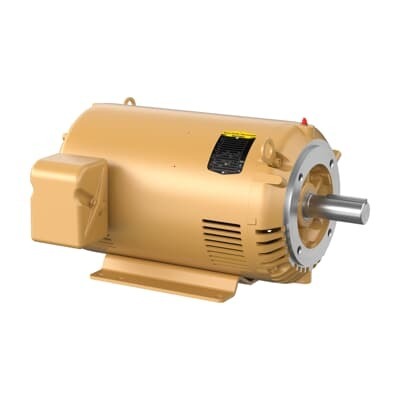

ABB 7BCEM2514T General Purpose Motor - IE3 Premium Efficiency
Part Number: 7BCEM2514T
Quick Summary
ABB 7BCEM2514T General Purpose Motor is a 20 HP, 3-phase, 230/460 V electric motor designed for general purpose open-duty industrial applications. This solution addresses frequent downtime and high energy costs by delivering reliable performance with premium efficiency. Certifications such as CSA, CSA EEV, and UR provide strong safety and compliance assurances for electrical installations in North American facilities, while NEMA standards reinforce compatibility with common motor-driven equipment. With a 60 Hz rating, OPSB enclosure, and foot mounting, the motor integrates smoothly into existing systems and minimizes retrofit complexity. In addition to performance, this model offers robust maintenance features and scalable options to support plant-wide optimization and asset reliability.
Product Information
Extended Description
7BCEM2514T ABB: General Purpose Motor 20 Hp 230 V (CEM2514T)
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
EGAUT001EXPU
Warranty Return
Product under warranty must be returned
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
GBINS001EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
SGIND004EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
USABB014EXPU
Warranty Return
Product under warranty must be returned
ABB Type Designation
20HP,3510RPM,3PH,60HZ,254TC,3928M,O
Altitude
1000 m
Ambient Temperature
40 °C
Bearing
6309 | Ball
Bearing NDE
6208 | Ball
Brake Present
No
Brand / Label
Baldor-Reliance
Catalog Number
CEM2514T
Certification Agency
CSA | CSA EEV | UR
Country of Origin
United States (US)
Customs Tariff Number
85015220
Design
B
Dimension Diagram
39LYD102: Dimension Sheet
Direction of Rotation
Both sides
Drive End Flange Type
C-Face
Duty Time
60 Min
ETIM 7
EC001851 - Electric motor
Efficiency Level
IE3 | Not Regulated / Exempt | Premium Efficiency (NEMA 12-12)
Electrical Data
Enclosure Type
OPSB
Frame Material
Steel
Frame Size
254
Frequency (f)
60 Hz
Global Commercial Alias
CEM2514T
Gross Volume
9651.933 inÂł
Gross Weight
87.997 kg
Horsepower Rating UL/CSA
20.000 Hp
IC Class
OPSB
IDEA Granular Category Code (IGCC)
1328 >> Multi phase motor AC
IE Class Data (50 Hz)
IE Class NA
IE Class Data (60 Hz)
IE Class NA
IM Class
F1
Insulation Class
F
Invoice Description
20HP,3510RPM,3PH,60HZ,254TC,3928M,OPSB,F
Lubrication
Regreasable
Made To Order
No
Medium Description
General Purpose 3PH Open, 20 HP, 3600 RPM, Frame Size 254Tc, C-Face Mounting, 3 Phase, OPSB Enclosure, 230/460 V, 60 Hz (CEM2514T)
Minimum Order Quantity
1 piece
Motor Base Type
Foot Mounted
Motor Frame Size
254TC
Motor Frame Suffix
TC
Mounting Orientation
Horizontal
Mounting Position
F1
NEMA Design Code
A
Number of Phases
3
Number of Poles
2P
Number of Poles (High)
2
Number of Speeds
Single Speed
Order Multiple
1 piece
Output Power
20 Hp
Power Factor
88 %
Product Name
General Purpose 3PH Open
Product Net Depth / Length
27 in
Product Net Height
17.438 in
Product Net Weight
87.997 kg
Product Net Width
20.5 in
Product Type
Undefined
Quote Only
No
Rated Current (In)
47 A | 23.5 A
Rated Efficiency
91 %
Rated Speed
3510 r/min
Selling Unit of Measure
piece
Service Factor
1.15
Service Factor Percentage
1.15 %
Shaft Diameter
1.63 in
Short Description
20 HP, 3600 RPM, Frame Size 254Tc, C-Face, 3 PH, OPSB, 230/460 V
Standards
NEMA
Starting of Motor
Direct On Line
Stocked At (Warehouses)
China | Alabama, United States | Alaska, United States
Synchronous Speed (vsyn)
3600 r/min
Temperature Class Default
--
Two Speed Motor
No
Type of Duty
Continuous
UNSPSC
26101115
Voltage Code
G
Voltage Rating
230 V | 460 V
Feature → Business Impact → Application: Premium IE3 efficiency reduces operating costs on continuous-duty loads such as conveyors, pumps, and fans, delivering measurable energy savings in daily plant operation and a lower total cost of ownership over the motor’s life. This translates to improved throughput and lower energy bills for manufacturing lines and process equipment. Application: Open, general-purpose drive tasks in moderate environments benefit from high-efficiency operation without sacrificing performance. Feature → Business Impact → Application: OPSB enclosure provides reliable operation in light environmental exposure while simplifying enclosure selection for standard facilities, enabling faster installation of new drives and replacements in existing lines. Application: General purpose motors in open environments, including packaging and material handling, benefit from straightforward replacement and compatibility. Feature → Business Impact → Application: Regreasable bearings (6309/6208 Ball) extend service intervals and reduce maintenance costs, increasing uptime for critical equipment like compressors and mixers. Application: Continuous plant processes requiring dependable lubrication cycles and long bearing life. Feature → Business Impact → Application: 254TC frame with C-face mounting and foot-mounted base supports flexible installation and alignment, reducing commissioning time and enabling retrofits in legacy systems. Application: Retrofit projects and new line builds across pumps, fans, and grinders. Feature → Business Impact → Application: 230/460 V dual-voltage capability supports multiple supply configurations, reducing wiring complexity and inventory breadth. Application: Multi-site operations and facilities with varying electrical infrastructure.
Get a Quick Quote for a ABB 7BCEM2514T
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 7BCEM2514T?
Enquire Now
FAQs
The motor is designed for Foot Mounted installation with C-Face flange mounting and a 254TC frame. This combination allows straightforward alignment with existing bases and drives, simplifying retrofits and new installations in conveyors, fans, and pumps.
Yes. It operates on 230/460 V three-phase, 60 Hz power. The motor carries IE3 Premium Efficiency, delivering lower energy consumption on continuous-duty loads while maintaining strong torque and reliable starting characteristics.
The motor carries CSA, CSA EEV, and UR certifications, aligning with North American electrical safety and efficiency requirements. It also adheres to NEMA standards, with an OPSB open enclosure suitable for typical industrial environments.
It uses regreasable ball bearings (6309 and 6208) to extend lubrication intervals, reducing maintenance frequency. With no brake and a continuous duty rating, it supports steady, reliable operation in demanding processes such as pumping and material handling.
Ideal for general-purpose, constant-load tasks such as conveyors, pumps, fans, and compressors. Its OPSB enclosure, robust frame, and dual voltage options make it a versatile replacement and upgrade option across multiple lines and facilities.
