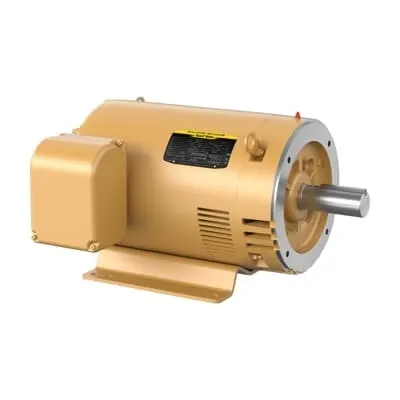

ABB 7BCEM2536T-G Shaft Ground - 30HP 60Hz OPSB Enclosure
Part Number: 7BCEM2536T-G
Quick Summary
ABB 7BCEM2536T-G Shaft Ground is a 30 HP, 1180 RPM, 3PH motor solution for rugged conveyors. It reduces downtime from mounting constraints and mismatched voltages with a dual voltage, C-face compatible design. Certified for CSA EEV, UR, and NEMA Premium efficiency, it also aligns with the OPSB enclosure standard for harsh environments. With 230/460 V operation and a 326TC frame, you gain reliable performance and easier lifecycle costs through energy efficiency. This makes it a strong choice for OEMs and service teams seeking straightforward installation, predictable lead times, and improved total cost of ownership. Its direct-on-line starting and shaft grounding feature reduce mechanical stress, while the OPSB enclosure provides environmental protection. This combination supports safer maintenance and longer service intervals in manufacturing and process industries.
Product Information
Extended Description
7BCEM2536T-G ABB: Shaft Ground 30 Hp 230 V (CEM2536T-G)
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
EGAUT001EXPU
Warranty Return
Product under warranty must be returned
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
GBINS001EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
SGIND004EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
USABB014EXPU
Warranty Return
Product under warranty must be returned
ABB Type Designation
30HP,1180RPM,3PH,60HZ,326TC,OPSB,F1
Ambient Temperature
40 °C
Bearing
6312
Bearing NDE
6309
Brake Present
No
Brand / Label
Baldor-Reliance
Catalog Number
CEM2536T-G
Certification Agency
CSA EEV | NEMA_PREMIUM | UR
Country of Origin
United States (US)
Customs Tariff Number
85015230
Drive End Flange Type
C-Face
Efficiency Level
Premium Efficiency (NEMA 12-12)
Electrical Data
Enclosure Type
OPSB
Frame Material
Steel
Frame Size
Undefined
Frequency (f)
60 Hz
Global Commercial Alias
CEM2536T-G
Gross Volume
18748.226 in³
Gross Weight
482 lb
Insulation Class
H
Invoice Description
30HP,1180RPM,3PH,60HZ,326TC,OPSB,F1
Made To Order
No
Medium Description
Shaft Ground, 30 HP, 1200 RPM, Frame Size 326Tc, C-Face Mounting, 3 Phase, 230/460 V, 60 Hz (CEM2536T-G)
Minimum Order Quantity
1 piece
Motor Base Type
Foot Mounted
Motor Frame Size
326TC
Mounting Orientation
Horizontal
Mounting Position
F1
NEMA Design Code
A
Number of Phases
3
Number of Poles
6P
Number of Poles (High)
6
Number of Speeds
single_speed
Order Multiple
1 piece
Output Power
30 Hp
Power Factor
77 %
Product Name
Shaft Ground
Product Net Depth / Length
33.75 in
Product Net Height
21.625 in
Product Net Weight
482 lb
Product Net Width
25.688 in
Product Type
Undefined
Quote Only
No
Rated Current (In)
78 A | 39 A
Rated Efficiency
93.60 %
Rated Speed
1180 r/min
Selling Unit of Measure
piece
Service Factor
1.15
Shaft Diameter
2.13 in
Shaft Grounding
Shaft Grounding
Short Description
30 HP, 1200 RPM, Frame Size 326Tc, C-Face, 3 PH, 230/460 V
Standards
NEMA
Starting of Motor
Direct on line
Stocked At (Warehouses)
China | Alabama, United States | Alaska, United States
Synchronous Speed (vsyn)
1200 r/min
Type of Duty
Continuous
Voltage Rating
230 V | 460 V
Feature: 30 HP output at 1180 RPM in a 326TC frame with dual voltage 230/460 V. Business Impact: Delivers consistent torque across global installations while simplifying electrical design and stocking needs. Application: Ideal for conveyors and continuous-duty drives in manufacturing facilities. Feature: OPSB enclosure with C-face mounting and foot-mounted base. Business Impact: Enhances environmental protection and installation flexibility, enabling quick retrofits and safer maintenance. Application: Retrofit projects and new builds requiring robust protection in demanding environments. Feature: Shaft grounding integrated into the design. Business Impact: Reduces electrical noise and fault risk at the shaft, increasing uptime and operator safety. Application: Heavy-duty processing lines with challenging grounding conditions. Feature: Direct-on-line starting capability. Business Impact: Simplifies the control scheme and reduces starter equipment costs while delivering reliable inrush performance. Application: Factory floors with standard VFD-free startup or simple control architectures. Feature: Premium efficiency and certifications (NEMA Premium, CSA EEV, UR). Business Impact: Improves energy savings, ensures regulatory compliance, and eases procurement with recognized standards. Application: Applications in regulated industries and systems seeking long-term operating cost reductions.
Get a Quick Quote for a ABB 7BCEM2536T-G
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 7BCEM2536T-G?
Enquire Now
FAQs
The unit supports C-face mounting with a foot-mounted base and fits a 326TC frame. It is designed for 230/460 V operation and is suitable for direct-on-line start in standard industrial control schemes, making retrofits and new installations straightforward.
It is a 3-phase, 60 Hz motor rated at 30 HP with dual voltage capability of 230 V or 460 V. The rated current is approximately 78 A (full load) and 39 A (reduced load), with a synchronous speed of 1200 r/min and a running speed of 1180 r/min.
Yes. It carries CSA EEV, UR, and NEMA Premium certifications, confirming compliance with recognized safety, efficiency, and performance standards for electrical motors used in demanding environments.
Shaft grounding is a configured feature of this model, enhancing electrical safety and reducing shaft-related faults. Routine maintenance focuses on standard bearings (e.g., 6312 / 6309 NDE), inspection of the enclosure, and verifying shaft-ground connections during scheduled outages.
Lead time is listed as 0 day, and the product is stocked at multiple warehouses, including US and international locations, ensuring rapid fulfillment for OEMs and service teams.
