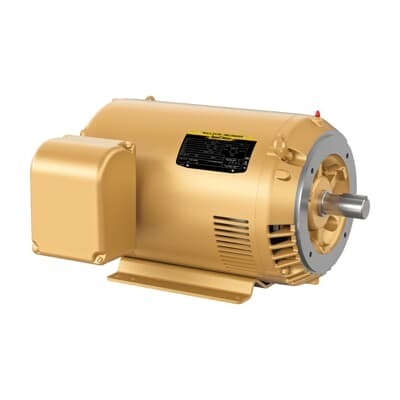

ABB 7BCEM2538T General Purpose Motor - Premium Efficiency
Part Number: 7BCEM2538T
Quick Summary
ABB General Purpose Motor 40 HP delivers reliable three-phase power for conveyors, pumps, and machine tools. When uptime and compatibility challenge your line, this motor's dual voltage (230/460 V) and open OPSB enclosure simplify installation, wiring, and startup. Certified for CSA, CSA EEV, and UR with adherence to NEMA guidelines, it supports safe operation and regulatory compliance in US facilities. Its premium efficiency and robust 286TSC frame fit industrial floors and tight footprints, delivering measurable energy savings. Stocked across multiple warehouses with zero-day lead times, it enables faster procurement and assured performance for mid-market manufacturers pursuing reliability and cost control.
Product Information
Extended Description
7BCEM2538T ABB: General Purpose Motor 40 Hp 230 V (CEM2538T)
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
EGAUT001EXPU
Warranty Return
Product under warranty must be returned
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
GBINS001EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
SGIND004EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
USABB014EXPU
Warranty Return
Product under warranty must be returned
ABB Type Designation
40HP,3530RPM,3PH,60HZ,286TSC,OPSB,F
Ambient Temperature
40 °C
Bearing
6311 | Ball
Bearing NDE
6309 | Ball
Brake Present
No
Brand / Label
Baldor-Reliance
Catalog Number
CEM2538T
Certification Agency
CSA | CSA EEV | UR
Country of Origin
United States (US)
Customs Tariff Number
85015230
Dimension Diagram
40LYE217: Dimension Sheet
Drive End Flange Type
C-Face
Duty Time
60 Min
ETIM 7
EC001851 - Electric motor
Efficiency Level
Premium Efficiency (NEMA 12-12)
Electrical Data
Enclosure Type
OPSB
Frame Material
Steel
Frame Size
286
Frequency (f)
60 Hz
Global Commercial Alias
CEM2538T
Gross Volume
14448.906 in³
Gross Weight
330 lb
IDEA Granular Category Code (IGCC)
1325 >> General purpose motor AC
Insulation Class
F
Invoice Description
40HP,3530RPM,3PH,60HZ,286TSC,OPSB,F1
Made To Order
No
Medium Description
General Purpose 3PH Open, 40 HP, 3600 RPM, Frame Size 286Tsc, C-Face Mounting, 3 Phase, OPSB Enclosure, 230/460 V, 60 Hz (CEM2538T)
Minimum Order Quantity
1 piece
Motor Base Type
Foot Mounted
Motor Frame Size
286TSC
Motor Frame Suffix
TSC
Mounting Orientation
Horizontal
Mounting Position
F1
NEMA Design Code
B
Number of Phases
3
Number of Poles
2P
Number of Poles (High)
2
Number of Speeds
Single Speed
Order Multiple
1 piece
Output Power
40 Hp
Power Factor
89 %
Product Name
General Purpose 3PH Open
Product Net Depth / Length
31 in
Product Net Height
19.625 in
Product Net Weight
330 lb
Product Net Width
23.75 in
Product Type
Undefined
Quote Only
No
Rated Current (In)
92 A | 46 A
Rated Efficiency
92.40 %
Rated Speed
3530 r/min
Selling Unit of Measure
piece
Service Factor
1.15
Shaft Diameter
1.63 in
Short Description
40 HP, 3600 RPM, Frame Size 286Tsc, C-Face, 3 PH, OPSB, 230/460 V
Standards
NEMA
Starting of Motor
Direct On Line
Stocked At (Warehouses)
China | Alabama, United States | Alaska, United States
Synchronous Speed (vsyn)
3600 r/min
Type of Duty
Continuous
UNSPSC
26101112
Voltage Rating
230 V | 460 V
Premium Efficiency is matched with a 92.40% rated efficiency and an 89% power factor, delivering tangible reductions in operating costs for continuous-duty applications such as conveyors and pumps. The business impact is lower energy bills and cooler running temperatures, translating to longer motor life and less cooling load in the plant. This motor supports 60 Hz operation with a nominal speed of 3530 r/min on a 286TSC frame, enabling seamless replacement in existing lines while preserving mechanical footprints and alignment. Dual voltage flexibility (230 V / 460 V) reduces spare parts and enables global installations without rewiring, improving procurement resilience and project scheduling. The OPSB enclosure plus C-Face mounting simplify retrofits and new builds, providing safer access and straightforward alignment with standard foot-mounted or horizontal configurations. Direct On Line starting minimizes control complexity and startup time, helping you achieve quick commissioning and predictable ramp-ups. Regulatory compatibility is reinforced by NEMA design code B, Insulation Class F, and certifications (CSA, CSA EEV, UR), ensuring compliance across US-based facilities and customers with strict safety requirements. Stocking at multiple warehouses combined with 0-day lead time reduces downtime and accelerates project timelines, supporting fast deployments in both new builds and machine upgrades.
Get a Quick Quote for a ABB 7BCEM2538T
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 7BCEM2538T?
Enquire Now
FAQs
This motor is designed for C-Face drive end flange mounting with foot mounting options and a horizontal orientation (Mounting Position F1). It fits the 286TSC frame and uses a shaft diameter of 1.63 in, simplifying bolt-on installation and alignment with existing equipment.
The motor operates on 230 V or 460 V, at 60 Hz, delivering 40 HP with a rated speed of 3530 r/min. It features Premium Efficiency with a rated efficiency of 92.40% and a power factor of 89%, suitable for energy-conscious industrial applications.
Yes. It is rated for Continuous duty, features Insulation Class F, and a NEMA Design B. The OPSB enclosure plus robust frame design support reliable operation in demanding environments with standard maintenance practices.
The motor is certified by CSA, CSA EEV, and UR, and adheres to NEMA design guidelines. These certifications support safety compliance and regulatory acceptance in applicable US facilities and contractor specifications.
Lead Time is listed as 0 day, and the product is actively stocked across multiple warehouses, enabling rapid procurement and minimizing project downtime.
