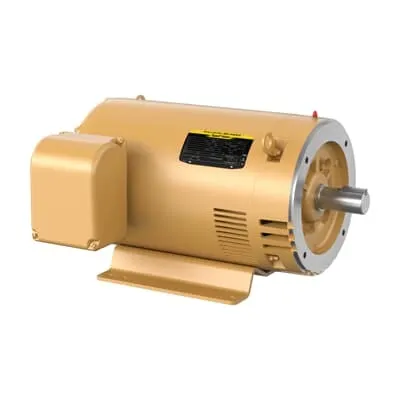

ABB 7BCEM2542T General Purpose Motor - OPSB Enclosure
Part Number: 7BCEM2542T
Quick Summary
General Purpose Motor 7BCEM2542T delivers reliable 50 HP performance for general-purpose drives in industrial equipment. Engineers often face downtime from mismatched enclosures or inefficient cooling, especially in open plant environments. This motor carries CSA, CSA EEV, and UR certifications, plus NEMA design alignment and premium efficiency, offering compliance and long-term reliability. With a 60 Hz, dual-voltage 230/460 V supply and OPSB enclosure, it fits open, three-phase systems while reducing spare-part complexity. Designed for distributors and maintenance teams, it supports quick installs, predictable performance, and lower total cost of ownership in general industrial applications.
Product Information
Extended Description
7BCEM2542T ABB: General Purpose Motor 50 Hp 230 V (CEM2542T)
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
EGAUT001EXPU
Warranty Return
Product under warranty must be returned
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
GBINS001EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
SGIND004EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
USABB014EXPU
Warranty Return
Product under warranty must be returned
ABB Type Designation
50HP,3525RPM,3PH,60HZ,324TSC,OPSB,F
Ambient Temperature
40 °C
Bearing
6312 | Ball
Bearing NDE
6309 | Ball
Brake Present
No
Brand / Label
Baldor-Reliance
Catalog Number
CEM2542T
Certification Agency
CSA | CSA EEV | UR
Country of Origin
United States (US)
Customs Tariff Number
85015230
Dimension Diagram
40LYE218: Dimension Sheet
Drive End Flange Type
C-Face
Duty Time
60 Min
ETIM 7
EC001851 - Electric motor
Efficiency Level
Premium Efficiency (NEMA 12-12)
Electrical Data
Enclosure Type
OPSB
Frame Material
Steel
Frame Size
324
Frequency (f)
60 Hz
Global Commercial Alias
CEM2542T
Gross Volume
14448.906 inÂł
Gross Weight
375 lb
IDEA Granular Category Code (IGCC)
1328 >> Multi phase motor AC
Insulation Class
F
Invoice Description
50HP,3525RPM,3PH,60HZ,324TSC,OPSB,F1
Made To Order
No
Medium Description
General Purpose 3PH Open, 50 HP, 3600 RPM, Frame Size 324Tsc, C-Face Mounting, 3 Phase, OPSB Enclosure, 230/460 V, 60 Hz (CEM2542T)
Minimum Order Quantity
1 piece
Motor Base Type
Foot Mounted
Motor Frame Size
324TSC
Motor Frame Suffix
TSC
Mounting Orientation
Horizontal
Mounting Position
F1
NEMA Design Code
A
Number of Phases
3
Number of Poles
2P
Number of Poles (High)
2
Number of Speeds
Single Speed
Order Multiple
1 piece
Output Power
50 Hp
Power Factor
90 %
Product Name
General Purpose 3PH Open
Product Net Depth / Length
31 in
Product Net Height
19.625 in
Product Net Weight
375 lb
Product Net Width
23.75 in
Product Type
Undefined
Quote Only
No
Rated Current (In)
112 A | 56 A
Rated Efficiency
93 %
Rated Speed
3525 r/min
Selling Unit of Measure
piece
Service Factor
1.15
Shaft Diameter
1.88 in
Short Description
50 HP, 3600 RPM, Frame Size 324Tsc, C-Face, 3 PH, OPSB, 230/460 V
Standards
NEMA
Starting of Motor
Direct On Line
Stocked At (Warehouses)
China | Alabama, United States | Alaska, United States
Synchronous Speed (vsyn)
3600 r/min
Type of Duty
Continuous
UNSPSC
26101115
Voltage Rating
230 V | 460 V
Feature: 50 HP output at 3525 rpm, 60 Hz operation. Business Impact: Delivers robust torque and reliability for continuous duty in pumps, fans, and conveyors, reducing downtime and energy waste. Application: Ideal for general industrial machinery requiring dependable open-frame performance with high efficiency. Feature: Dual voltage 230/460 V and direct on line starting. Business Impact: Flexible integration with existing electrical infrastructures, minimizing rework and drive compatibility concerns. Application: Open systems and retrofit projects across manufacturing lines. Feature: OPSB enclosure with C-Face mounting on a 324TSC frame. Business Impact: Enhanced protection in challenging environments and straightforward installation in horizontal, foot-mounted configurations. Application: Open-area installations in packaging, material handling, and processing facilities. Feature: Insulation Class F and Premium Efficiency (NEMA 12-12). Business Impact: Longer insulation life under elevated temperatures and lower energy costs due to superior efficiency. Application: Continuous-duty conveyors, fans, and pumps in temperature-controlled or harsh surroundings. Feature: Bearings 6312 / 6309 Ball, Shaft 1.88 in, Service Factor 1.15. Business Impact: Reduced maintenance intervals and improved reliability under peak loads and misalignment; supports longer bearing life. Application: Heavy-duty mechanical systems with varying torque demands. Feature: Frame Size 324TSC, Weight 375 lb, Mounting Orientation Horizontal, Mounting Position F1. Business Impact: Predictable footprint and easy replacement in standard motor bays; simplifies installation and spare-part planning. Application: Retrofit projects and new line builds where standardization matters. Feature: Regulatory and stock coverage with CSA, CSA EEV, UR certifications and multi-warehouse stocking. Business Impact: Streamlined compliance and faster procurement, minimizing project delays. Application: Global manufacturing facilities and service centers seeking certified open-motor solutions.
Get a Quick Quote for a ABB 7BCEM2542T
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 7BCEM2542T?
Enquire Now
FAQs
The 7BCEM2542T is designed for dual voltage operation at 230/460 V and 60 Hz, supporting direct on line starting. Its 324TSC frame with C-Face mounting ensures straightforward replacement in standard industrial bays and drives, reducing reconfiguration time and enabling seamless integration with existing 3-phase systems across pumps, fans, and conveyors.
This motor uses a C-Face drive-end flange and is configured for horizontal, foot-mounted installation in a 324TSC frame. The OPSB enclosure provides robust protection in open or harsh environments. Dimensional compatibility is supported by the dimension sheet 40LYE218, and the unit weighs 375 lb, aiding planning for handling and mounting in production lines.
Yes. It is specified for continuous duty with a service factor of 1.15 and a NEMA design code A, making it well-suited for steady operation in pumps, fans, and conveyors. With 50 HP output, 3525 r/min, and a direct-on-line starting method, it delivers reliable performance while simplifying drive selection for continuous-running equipment.
The 7BCEM2542T carries CSA, CSA EEV, and UR certifications, aligning with regulatory and safety standards for industrial equipment. It also carries NEMA-standard design considerations and operates at 60 Hz. These certifications simplify procurement for regulated facilities and help ensure safe, compliant operation across diverse manufacturing sites.
With a rated efficiency of 93% and premium efficiency designation, the motor reduces energy costs over its lifecycle. Bearings are ball types (6312 and 6309), insulation class F, and Direct On Line starting minimizes drive complexity. Combined with stocked availability and short lead times, this translates to lower maintenance costs and faster project ROI.
