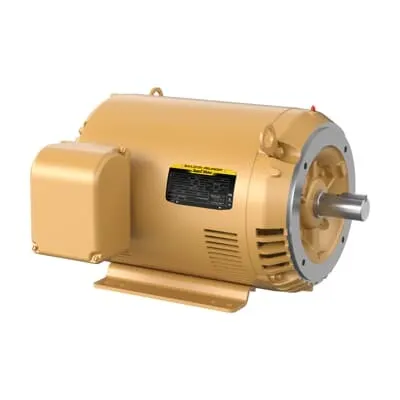

ABB General Purpose Motor 7BCEM2546T - OPSB Enclosure
Part Number: 7BCEM2546T
Quick Summary
ABB General Purpose Motor 7BCEM2546T is a 60 HP, three-phase open motor for general industrial drives. Engineers often wrestle with downtime and mismatches when enclosures or mounting don’t align with existing systems. It carries CSA, CSA EEV, and UR certifications to satisfy North American electrical safety and equipment approvals. Paired with Premium Efficiency and a rugged OPSB enclosure, the 326TSC frame delivers reliable performance, easy installation, and long service life across diverse manufacturing environments. This combination supports predictable maintenance planning and reduces total cost of ownership.
Product Information
Extended Description
7BCEM2546T ABB: General Purpose Motor 60 Hp 230 V (CEM2546T)
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
EGAUT001EXPU
Warranty Return
Product under warranty must be returned
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
GBINS001EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
SGIND004EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
USABB014EXPU
Warranty Return
Product under warranty must be returned
ABB Type Designation
60HP,3540RPM,3PH,60HZ,326TSC,OPSB,F
Ambient Temperature
40 °C
Bearing
6312 | Ball
Bearing NDE
6311 | Ball
Brake Present
No
Brand / Label
Baldor-Reliance
Catalog Number
CEM2546T
Certification Agency
CSA | CSA EEV | UR
Country of Origin
United States (US)
Customs Tariff Number
85015230
Dimension Diagram
42LYF069: Dimension Sheet
Drive End Flange Type
C-Face
Duty Time
60 Min
ETIM 7
EC001851 - Electric motor
Efficiency Level
Premium Efficiency (NEMA 12-12)
Electrical Data
Enclosure Type
OPSB
Frame Material
Steel
Frame Size
326
Frequency (f)
60 Hz
Global Commercial Alias
CEM2546T
Gross Volume
14448.906 in³
Gross Weight
472 lb
IDEA Granular Category Code (IGCC)
1328 >> Multi phase motor AC
Insulation Class
F
Invoice Description
60HP,3540RPM,3PH,60HZ,326TSC,OPSB,F1
Made To Order
No
Medium Description
General Purpose 3PH Open, 60 HP, 3600 RPM, Frame Size 326Tsc, C-Face Mounting, 3 Phase, OPSB Enclosure, 230/460 V, 60 Hz (CEM2546T)
Minimum Order Quantity
1 piece
Motor Base Type
Foot Mounted
Motor Frame Size
326TSC
Motor Frame Suffix
TSC
Mounting Orientation
Horizontal
Mounting Position
F1
NEMA Design Code
A
Number of Phases
3
Number of Poles
2P
Number of Poles (High)
2
Number of Speeds
Single Speed
Order Multiple
1 piece
Output Power
60 Hp
Power Factor
89 %
Product Name
General Purpose 3PH Open
Product Net Depth / Length
31 in
Product Net Height
19.625 in
Product Net Weight
472 lb
Product Net Width
23.75 in
Product Type
Undefined
Quote Only
No
Rated Current (In)
136 A | 68 A
Rated Efficiency
93.60 %
Rated Speed
3540 r/min
Selling Unit of Measure
piece
Service Factor
1.15
Shaft Diameter
1.88 in
Short Description
60 HP, 3600 RPM, Frame Size 326Tsc, C-Face, 3 PH, OPSB, 230/460 V
Standards
NEMA
Starting of Motor
Direct On Line
Stocked At (Warehouses)
China | Alabama, United States | Alaska, United States
Synchronous Speed (vsyn)
3600 r/min
Type of Duty
Continuous
UNSPSC
26101115
Voltage Rating
230 V | 460 V
326TSC frame with C-Face drive-end flange and foot-mounted base provides a robust mounting platform, enabling quick installation and dependable alignment. This power-dense footprint reduces space requirements and streamlines mechanical integration with common conveyor, pump, and fan assemblies. Applications include general purpose drives in packaging, material handling, and process equipment. OPSB enclosure offers enhanced protection for open plant environments, helping meet safety and installation standards while simplifying wiring from field devices. The result is lower enclosure-related downtime and easier compliance during retrofits in manufacturing floors. Premium Efficiency with a 0.89 power factor and 93.60% efficiency translates to measurable energy savings and smoother electrical performance, reducing operating costs and transformer or starter sizing in new builds. The motor’s dual voltage rating of 230/460 V and 60 Hz enables straightforward compatibility with existing electrical distributions and drives, minimizing wiring changes and spare-part inventories. With Direct On Line starting capability and a 1.15 service factor, it delivers reliable startup and sustained performance for continuous duty applications like pumps and fans. CSA, CSA EEV, and UR certifications provide regulatory assurance for installations in diverse sectors, from packaging to automotive assembly lines. At 472 lb weight and 6312 ball bearings, the unit is built for durability and long service intervals, while the C-Face mounting and shaft diameter of 1.88 in support durable couplings and easy alignment with standard gearbox or belt drives. In short, this motor blends proven ABB reliability with practical field installability for a wide range of general purpose drives.
Get a Quick Quote for a ABB 7BCEM2546T
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 7BCEM2546T?
Enquire Now
FAQs
The 7BCEM2546T is a 60 HP, 3-phase motor rated for 230/460 V at 60 Hz with a nominal speed of 3540 r/min, designed for straightforward integration with standard VFDs and soft starters. Its Direct On Line starting option supports flexible deployment in both fixed-speed and variable-speed configurations, reducing engineering time and simplifying commissioning on conveyors, mixers, or pumps.
Key specs include 60 HP, 3540 r/min synchronous speed, 3 phases, 60 Hz, dual voltage 230/460 V, power factor around 0.89, and efficiency at 93.60%. Frame size is 326TSC with a shaft diameter of 1.88 inches. The motor operates under a service factor of 1.15 and is designed for continuous duty with OPSB enclosure.
Yes. It is rated for Continuous duty with a service factor of 1.15, configured for horizontal mounting (F1) and C-Face drive-end flange. The combination of premium efficiency, durable frame construction, and robust bearings (6312 ball) supports long, uninterrupted operation in demanding manufacturing lines, with straightforward maintenance planning.
The motor carries CSA, CSA EEV, and UR certifications, providing recognized electrical safety and equipment approvals for North American markets. These certifications facilitate compliance during audits, enable broader distribution, and reduce the risk of non-conformance in regulated environments such as food processing, packaging, and automotive assembly.
Lead time is listed as 0 days, and stock is available across multiple warehouses (examples include EGAUT001EXPU, GBINS001EXPU, SGIND004EXPU, USABB014EXPU). This enables rapid fulfillment for urgent production needs while maintaining regional support and consistent supply during peak demand.
