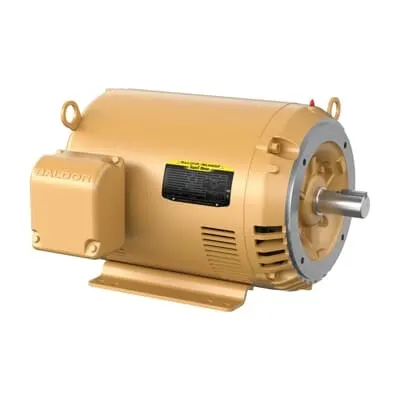

ABB 7BCEM2546T-G Motor - OPSB, 60 HP, 230/460V
Part Number: 7BCEM2546T-G
Quick Summary
Shaft Ground motor ABB delivers reliable 60 HP drive performance for industrial manufacturing. Maintenance teams want dependable grounding, minimal downtime, and easy sourcing; this model addresses shaft grounding, direct-on-line starting, and rapid availability. It carries certifications and efficiency benefits that matter in regulated plants, including NEMA Premium efficiency, CSA EEV, and UR recognition. With OPSB enclosure, 326TSC frame, and dual voltage options, it aligns with standard industrial installations while reducing total cost of ownership. For OEMs and service providers, the combination of stock accessibility and proven performance translates into faster project timelines and lower lifecycle risk.
Product Information
Extended Description
7BCEM2546T-G ABB: Shaft Ground 60 Hp 230 V (CEM2546T-G)
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
EGAUT001EXPU
Warranty Return
Product under warranty must be returned
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
GBINS001EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
SGIND004EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
USABB014EXPU
Warranty Return
Product under warranty must be returned
ABB Type Designation
60HP,3545RPM,3PH,60HZ,326TSC,OPSB,F
Ambient Temperature
40 °C
Bearing
6312
Bearing NDE
6311
Brake Present
No
Brand / Label
Baldor-Reliance
Catalog Number
CEM2546T-G
Certification Agency
CSA EEV | NEMA_PREMIUM | UR
Country of Origin
United States (US)
Customs Tariff Number
85015230
Drive End Flange Type
C-Face
Efficiency Level
Premium Efficiency (NEMA 12-12)
Electrical Data
Enclosure Type
OPSB
Frame Material
Steel
Frame Size
326
Frequency (f)
60 Hz
Global Commercial Alias
CEM2546T-G
Gross Volume
14448.906 in³
Gross Weight
489 lb
Insulation Class
H
Invoice Description
60HP,3545RPM,3PH,60HZ,326TSC,OPSB,F1
Made To Order
No
Medium Description
Shaft Ground, 60 HP, 3600 RPM, Frame Size 326Tsc, C-Face Mounting, 3 Phase, OPSB Enclosure, 230/460 V, 60 Hz (CEM2546T-G)
Minimum Order Quantity
1 piece
Motor Base Type
Foot Mounted
Motor Frame Size
326TSC
Mounting Orientation
Horizontal
Mounting Position
F1
NEMA Design Code
A
Number of Phases
3
Number of Poles
2P
Number of Poles (High)
2
Number of Speeds
single_speed
Order Multiple
1 piece
Output Power
60 Hp
Power Factor
89 %
Product Name
Shaft Ground
Product Net Depth / Length
31 in
Product Net Height
19.625 in
Product Net Weight
489 lb
Product Net Width
23.75 in
Product Type
Undefined
Quote Only
No
Rated Current (In)
136 A | 68 A
Rated Efficiency
93.60 %
Rated Speed
3540 r/min
Selling Unit of Measure
piece
Service Factor
1.15
Shaft Diameter
1.88 in
Shaft Grounding
Shaft Grounding
Short Description
60 HP, 3600 RPM, Frame Size 326Tsc, C-Face, 3 PH, OPSB, 230/460 V
Standards
NEMA
Starting of Motor
Direct on line
Stocked At (Warehouses)
China | Alabama, United States | Alaska, United States
Synchronous Speed (vsyn)
3600 r/min
Type of Duty
Continuous
Voltage Rating
230 V | 460 V
Feature → Business Impact → Application: Shaft Grounding and 60 HP output deliver reliable, consistent torque with improved EMI control, extending bearing life and reducing downtime in continuous processes. This supports machine tools, pumps, and conveyors in demanding facilities while lowering maintenance costs. Feature → Application: OPSB enclosure and 326TSC frame provide rugged protection and footprint stability in harsh environments, simplifying retrofit and new installations across packaging lines and metal forming operations. Feature → Application: NEMA Premium Efficiency rating and 93.60% efficiency translate to tangible energy savings and cooler operation, reducing operating costs in long-running processes like extruders and mixers. Feature → Application: Direct-on-Line starting enables straightforward control schemes and reduced soft-start hardware, improving reliability in line-start scenarios and avoiding unnecessary capital expenditure. Feature → Application: Immediate 0-day lead time and stock locations enable rapid procurement and faster project timelines, supporting spare parts strategy and mission-critical replacements for OEMs and service teams.
Get a Quick Quote for a ABB 7BCEM2546T-G
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 7BCEM2546T-G?
Enquire Now
FAQs
The 7BCEM2546T-G is a 3‑phase, 60 HP motor with OPSB enclosure and 326TSC frame, designed for horizontal, foot-mounted installation. It pairs with standard US electrical supplies (230/460 V) and direct-on-line starts, making it suitable for conveyors, pumps, and process equipment across manufacturing environments.
This model supports 230 V and 460 V three-phase operation and uses a 326TSC frame. The frame size, combined with OPSB enclosure, provides compatibility with common coupling and mounting arrangements while delivering robust protection in demanding production lines.
The motor carries NEMA Premium Efficiency, CSA EEV, and UR certifications, reflecting top-tier energy performance and regulatory compliance. Efficiency is rated at 93.60%, supporting lower operating costs in continuous-duty applications typical of industry standards and OEM specifications.
OPSB is an open drip enclosure designed for moderate environmental protection with straightforward maintenance access. The 326TSC frame size aligns with standard foot-mounted bases and allows straightforward coupling to belts or gears. Ensure correct shaft diameter (1.88 in) and mounting position (F1) to achieve optimal alignment and vibration control.
The model is listed with 0 day lead time and is stocked at multiple warehouses, including US and international locations. This enables rapid procurement, minimal downtime for replacements, and flexible supply chain management for urgent production requirements.
