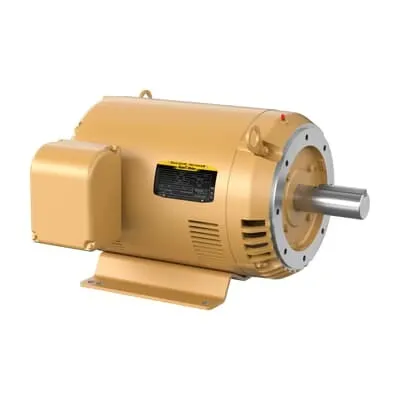

ABB 7BCEM2547T General Purpose Motor - 60HP OPSB
Part Number: 7BCEM2547T
Quick Summary
ABB 7BCEM2547T General Purpose Motor delivers reliable 60 HP three-phase power for open-drive applications in industrial facilities. Engineers often struggle with compatibility, installation downtime, and rising energy costs when upgrading motors. This model carries premium efficiency IE3 and robust safety certifications, including CSA, UR, and CSA EEV, helping you meet regulatory requirements with confidence. Its open, general-purpose design supports common equipment like pumps, fans, and conveyors, reducing spare-part complexity. With stock kept across multiple warehouses and a US-origin supply chain, you gain faster project timelines and lower carrying costs, while a proven 364TC frame and C-Face mounting simplify retrofit and future scalability.
Product Information
Extended Description
7BCEM2547T ABB: General Purpose Motor 60 Hp 230 V (CEM2547T)
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
EGAUT001EXPU
Warranty Return
Product under warranty must be returned
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
GBINS001EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
SGIND004EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
USABB014EXPU
Warranty Return
Product under warranty must be returned
ABB Type Designation
60HP,1775RPM,3PH,60HZ,364TC,4278M,O
Altitude
1000 m
Ambient Temperature
40 °C
Bearing
6313 | Ball
Bearing NDE
6311 | Ball
Brake Present
No
Brand / Label
Baldor-Reliance
Catalog Number
CEM2547T
Certification Agency
CSA | CSA EEV | UR
Country of Origin
United States (US)
Customs Tariff Number
85015230
Design
B
Dimension Diagram
42LYF095: Dimension Sheet
Direction of Rotation
Both sides
Drive End Flange Type
C-Face
Duty Time
60 Min
ETIM 7
EC001851 - Electric motor
Efficiency Level
IE3 | Not Regulated / Exempt | Premium Efficiency (NEMA 12-12)
Electrical Data
Enclosure Type
OPSB
Frame Material
Steel
Frame Size
364
Frequency (f)
60 Hz
Global Commercial Alias
CEM2547T
Gross Volume
18748.226 inÂł
Gross Weight
542 lb
Horsepower Rating UL/CSA
60.000 Hp
IC Class
OPSB
IDEA Granular Category Code (IGCC)
1328 >> Multi phase motor AC
IE Class Data (50 Hz)
IE Class NA
IE Class Data (60 Hz)
IE Class NA
IM Class
F1
Insulation Class
F
Invoice Description
60HP,1775RPM,3PH,60HZ,364TC,4278M,OPSB,F
Lubrication
Regreasable
Made To Order
No
Medium Description
General Purpose 3PH Open, 60 HP, 1800 RPM, Frame Size 364Tc, C-Face Mounting, 3 Phase, OPSB Enclosure, 230/460 V, 60 Hz (CEM2547T)
Minimum Order Quantity
1 piece
Motor Base Type
Foot Mounted
Motor Frame Size
364TC
Motor Frame Suffix
TC
Mounting Orientation
Horizontal
Mounting Position
F1
NEMA Design Code
A
Number of Phases
3
Number of Poles
4P
Number of Poles (High)
4
Number of Speeds
Single Speed
Order Multiple
1 piece
Output Power
60 Hp
Power Factor
87 %
Product Name
General Purpose 3PH Open
Product Net Depth / Length
33.75 in
Product Net Height
21.625 in
Product Net Weight
542 lb
Product Net Width
25.688 in
Product Type
Undefined
Quote Only
No
Rated Current (In)
136 A | 68 A
Rated Efficiency
95 %
Rated Speed
1775 r/min
Replaced Product ID (OLD)
7B42F095W587G1
Selling Unit of Measure
piece
Service Factor
1.15
Service Factor Percentage
1.15 %
Shaft Diameter
2.38 in
Short Description
60 HP, 1800 RPM, Frame Size 364Tc, C-Face, 3 PH, OPSB, 230/460 V
Standards
NEMA
Starting of Motor
Direct On Line
Stocked At (Warehouses)
China | Alabama, United States | Alaska, United States
Synchronous Speed (vsyn)
1800 r/min
Temperature Class Default
--
Two Speed Motor
No
Type of Duty
Continuous
UNSPSC
26101115
Voltage Code
G
Voltage Rating
230 V | 460 V
60 HP, 1775 rpm open motor with 364TC frame and C-face mounting delivers compact power for retrofit projects. This configuration reduces mounting clearance concerns and enables straightforward alignment with existing couplings, minimizing downtime. It is well-suited for pumps, fans, and conveyors in continuous-process environments. IE3 premium efficiency reduces energy consumption under load, delivering measurable cost savings over the motor’s life. With insulation class F and a service factor of 1.15, it tolerates temporary overloads without sacrificing reliability, improving uptime in demanding facilities. OPSB enclosure provides rugged protection in variable environments and supports direct-on-line starting for immediate response to demand spikes. The 230/460 V 3-phase voltage code ensures compatibility with common plant electrical systems and minimizes transformer needs. Foot-mounted design and C-face mounting simplify installation and alignment with existing equipment. Lubrication is regreasable, facilitating maintenance cycles and extending bearing life. Certifications to CSA, UR and CSA EEV standards, aligned with NEMA design practices, support regulatory compliance. Stocked at multiple warehouses with 0-day lead time and a minimum order of 1 piece helps avoid project delays and supports fast procurement.
Get a Quick Quote for a ABB 7BCEM2547T
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 7BCEM2547T?
Enquire Now
FAQs
This motor uses a 364TC frame with C-face mounting and a foot-mounted base, enabling straightforward retrofits alongside standard open-drive equipment. Direct-on-line starting and the OPSB enclosure simplify wiring and protection in typical factory environments, while the 230/460 V voltage rating minimizes transformer usage and wiring changes during installation.
Key specs include 60 HP output, 1775 r/min rated speed, 3-phase operation at 60 Hz, 364TC frame, and a service factor of 1.15. Insulation class F and IE3 efficiency support reliability and energy savings, with a 2.38 in shaft diameter and ball bearings (6313 and 6311) for long bearing life in continuous-duty applications.
Yes. The model aligns with Baldor-Reliance family conventions (Global Commercial Alias CEM2547T and related catalog numbers) and supports interchangeability with existing 60 HP, 1775 RPM, 364TC, 3PH, OPSB installations. This minimizes drive controls modifications and reduces downtime during retrofit projects.
The motor carries CSA and UR certifications with CSA EEV recognition, aligning with North American electrical safety and energy compliance. It adheres to NEMA design practices and uses an OPSB enclosure suitable for industrial environments requiring rugged protection and reliable performance.
Regreasable lubrication and a robust steel frame reduce maintenance frequency and bearing wear, while IE3 efficiency lowers energy costs over time. 0-day lead times and multi-warehouse stocking streamline procurement, minimizing downtime and accelerating project ROI for continuous-load equipment like pumps and conveyors.
