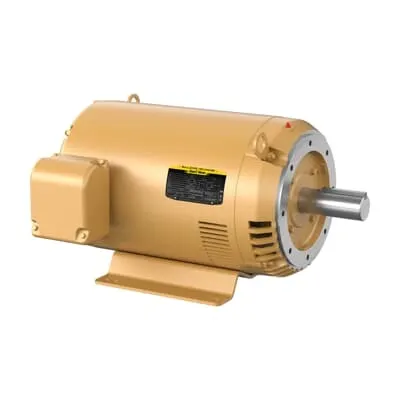

ABB 7BCEM2547T-G Shaft Ground - 60HP, 1775RPM, OPSB
Part Number: 7BCEM2547T-G
Quick Summary
ABB 7BCEM2547T-G Shaft Ground drives reliable motor performance for heavy industrial conveyors. OEMs often confront downtime and compatibility gaps with 60 Hz, 230/460 V systems, so a plug‑and‑play solution reduces project delays. It carries CSA, CSA EEV, and UR certifications alongside a NEMA-standard OPSB enclosure for safer, compliant operation. With premium efficiency and a robust mechanical package, it delivers energy savings, easier installation, and lower maintenance costs for industrial drive applications. Designed for OPSB, 364TC frame, C-Face mounting, and 230/460 V flexibility, it fits a wide range of OEMs and retrofits. This combination of performance, compliance, and reliability helps engineering teams meet production targets while managing long-term total cost of ownership.
Product Information
Extended Description
7BCEM2547T-G ABB: Shaft Ground 60 Hp 230 V (CEM2547T-G)
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
EGAUT001EXPU
Warranty Return
Product under warranty must be returned
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
GBINS001EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
SGIND004EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
USABB014EXPU
Warranty Return
Product under warranty must be returned
ABB Type Designation
60HP,1775RPM,3PH,60HZ,364TC,OPSB,F1
Ambient Temperature
40 °C
Bearing
6313 | Ball
Bearing NDE
6311 | Ball
Brake Present
No
Brand / Label
Baldor-Reliance
Catalog Number
CEM2547T-G
Certification Agency
CSA | CSA EEV | UR
Country of Origin
United States (US)
Customs Tariff Number
85015230
Dimension Diagram
42LY-000-019: Dimension Sheet
Drive End Flange Type
C-Face
Duty Time
60 Min
ETIM 7
EC001851 - Electric motor
Efficiency Level
Premium Efficiency (NEMA 12-12)
Electrical Data
Enclosure Type
OPSB
Frame Material
Steel
Frame Size
364
Frequency (f)
60 Hz
Global Commercial Alias
CEM2547T-G
Gross Volume
24317.313 in³
Gross Weight
565 lb
IDEA Granular Category Code (IGCC)
1318 >> Heating and cooling system motor AC
Insulation Class
H
Invoice Description
60HP,1775RPM,3PH,60HZ,364TC,OPSB,F1
Made To Order
No
Medium Description
Shaft Ground, 60 HP, 1800 RPM, Frame Size 364Tc, C-Face Mounting, 3 Phase, OPSB Enclosure, 230/460 V, 60 Hz (CEM2547T-G)
Minimum Order Quantity
1 piece
Motor Base Type
Foot Mounted
Motor Frame Size
364TC
Motor Frame Suffix
TC
Mounting Orientation
Horizontal
Mounting Position
F1
NEMA Design Code
A
Number of Phases
3
Number of Poles
4P
Number of Poles (High)
4
Number of Speeds
Single Speed
Order Multiple
1 piece
Output Power
60 Hp
Power Factor
87 %
Product Name
Shaft Ground
Product Net Depth / Length
43.25 in
Product Net Height
21.625 in
Product Net Weight
565 lb
Product Net Width
26 in
Product Type
Undefined
Quote Only
No
Rated Current (In)
136 A | 68 A
Rated Efficiency
95 %
Rated Speed
1775 r/min
Selling Unit of Measure
piece
Service Factor
1.15
Shaft Diameter
2.38 in
Shaft Grounding
Shaft Grounding
Short Description
60 HP, 1800 RPM, Frame Size 364Tc, C-Face, 3 PH, OPSB, 230/460 V
Standards
NEMA
Starting of Motor
Direct On Line
Stocked At (Warehouses)
China | Alabama, United States | Alaska, United States
Synchronous Speed (vsyn)
1800 r/min
Type of Duty
Continuous
UNSPSC
26101105
Voltage Rating
230 V | 460 V
Shaft Ground configuration improves grounding reliability and fault clarity, reducing unplanned downtime and safeguarding personnel on live equipment. This grounding approach minimizes ground faults and electrical noise, increasing uptime for conveyors, pumps, and processing lines. Ideal for continuous industrial duty in metal, food, and chemical facilities where grounding integrity matters. Dual voltage compatibility of 230/460 V with 60 Hz operation offers flexible power for global sites. Simplifies procurement with a single motor that supports plants across regions, lowering spare-part inventories. Suitable for 3-phase drives in OEM lines and retrofits that serve mixed-voltage utilities. OPSB enclosure, C-Face mounting, and 364TC frame deliver rugged protection and straightforward installation. Enhances environmental durability and reduces alignment challenges during retrofit projects. Well suited for foot-mounted conveyors, mixers, and processing equipment in demanding environments. Premium Efficiency rated at 95% improves energy use and reduces cooling needs. This translates to measurable energy savings and lower heat loads in control rooms and equipment rooms. Effective for continuous duty in packaging, water treatment, and HVAC systems. Direct On Line starting with a 1.15 service factor supports robust, reliable startups and torque headroom. Reduces soft-start requirements and minimizes stress on drive systems, improving lifecycle and uptime. Ideal for high-inertia loads such as fans, pumps, and mixers in manufacturing lines. Certifications and stock availability ensure compliance and fast delivery. CSA, CSA EEV, and UR approvals meet regulatory requirements, while multiple warehouses support rapid deployment and 0 day lead times for active projects.
Get a Quick Quote for a ABB 7BCEM2547T-G
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 7BCEM2547T-G?
Enquire Now
FAQs
The 7BCEM2547T-G is designed for OPSB enclosure with a C-Face drive end flange and foot-mounted base. It supports horizontal mounting in the F1 orientation and uses the 364TC frame, enabling straightforward installation on conveyors, pumps, and mixers. This combination reduces alignment issues and accelerates commissioning in new builds or retrofits.
This is a 3-phase motor rated for 60 Hz operation with dual voltage capability of 230 V or 460 V. The rated speed is 1775 r/min, delivering 60 HP of output. Typical operating current is 136 A at 230 V and 68 A at 460 V, with a power factor around 0.87 and efficiency at 95%, suitable for mixed-voltage plants and international installations.
Yes. The motor is specified for continuous duty and supports Direct On Line (DOL) starting, offering immediate torque for high-inertia loads while maintaining reliability. A service factor of 1.15 provides additional torque headroom, making it well-suited for pumps, fans, and conveyors that require robust startups without complex soft-start solutions.
It carries CSA, CSA EEV, and UR certifications, ensuring electrical safety and compliance for North American facilities. The design adheres to NEMA standards and carries a premium efficiency rating. These certifications support safe operation, regulatory alignment, and easier auditability in regulated industries.
Lead time is listed as 0 day in the supplier data, and the motor is stocked at multiple warehouses (US, CN, GB, SG). Minimum order quantity is 1 piece, enabling rapid deployment for urgent projects and easy scalability across varying plant footprints.
