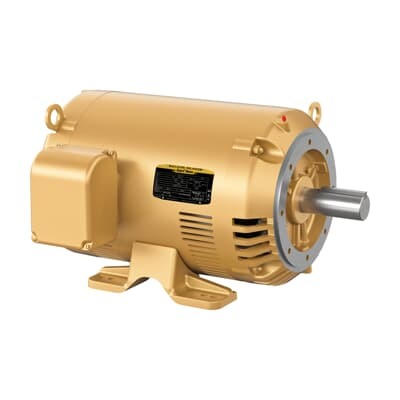

ABB 7BCEM2551T General Motor - OPSB Enclosure 60 Hz
Part Number: 7BCEM2551T
Quick Summary
ABB 7BCEM2551T General Motor is a 75 HP, 3-phase open motor ideal for general purpose applications. Uptime and energy costs are common pain points in industrial drives, and this model delivers reliable performance under demanding loads. It carries CSA, CSA EEV, and UR certifications, along with a NEMA B design and an OPSB enclosure for enhanced safety and compliance. With 230/460 V, 60 Hz operation, a 365TC frame, and C-face mounting, it installs quickly and fits standard drives. Coupled with premium efficiency IE2 and a service factor of 1.15, it helps reduce energy use while protecting against overload. In practice, this combination translates to lower maintenance, easier sourcing, and stronger ROI for general process equipment.
Product Information
Extended Description
7BCEM2551T ABB: General Purpose Motor 75 Hp 230 V (CEM2551T)
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
EGAUT001EXPU
Warranty Return
Product under warranty must be returned
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
GBINS001EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
SGIND004EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
USABB014EXPU
Warranty Return
Product under warranty must be returned
ABB Type Designation
75HP,1775RPM,3PH,60HZ,365TC,4462M,O
Altitude
1000 m
Ambient Temperature
40 °C
Bearing
6313 | Ball
Bearing NDE
6312 | Ball
Brake Present
No
Brand / Label
Baldor-Reliance
Catalog Number
CEM2551T
Certification Agency
CSA | CSA EEV | UR
Country of Origin
United States (US)
Customs Tariff Number
85015230
Design
B
Dimension Diagram
44LYD052: Dimension Sheet
Direction of Rotation
Both sides
Drive End Flange Type
C-Face
Duty Time
60 Min
ETIM 7
EC001851 - Electric motor
Efficiency Level
IE2 | Not Regulated / Exempt | Premium Efficiency (NEMA 12-12)
Electrical Data
Enclosure Type
OPSB
Frame Material
Steel
Frame Size
365
Frequency (f)
60 Hz
Global Commercial Alias
CEM2551T
Gross Volume
33833.008 inÂł
Gross Weight
457 lb
Horsepower Rating UL/CSA
75.000 Hp
IC Class
OPSB
IDEA Granular Category Code (IGCC)
1325 >> General purpose motor AC
IE Class Data (50 Hz)
IE Class NA
IE Class Data (60 Hz)
IE Class NA
IM Class
F1
Insulation Class
F
Invoice Description
75HP,1775RPM,3PH,60HZ,365TC,4462M,OPSB,F
Lubrication
Regreasable
Made To Order
No
Medium Description
General Purpose 3PH Open, 75 HP, 1800 RPM, Frame Size 365Tc, C-Face Mounting, 3 Phase, OPSB Enclosure, 230/460 V, 60 Hz (CEM2551T)
Minimum Order Quantity
1 piece
Motor Base Type
Foot Mounted
Motor Frame Size
365TC
Motor Frame Suffix
TC
Mounting Orientation
Horizontal
Mounting Position
F1
NEMA Design Code
B
Number of Phases
3
Number of Poles
4P
Number of Poles (High)
4
Number of Speeds
Single Speed
Order Multiple
1 piece
Output Power
75 Hp
Power Factor
85 %
Product Name
General Purpose 3PH Open
Product Net Depth / Length
40.625 in
Product Net Height
25.625 in
Product Net Weight
457 lb
Product Net Width
32.5 in
Product Type
Undefined
Quote Only
No
Rated Current (In)
170 A | 85 A
Rated Efficiency
95 %
Rated Speed
1775 r/min
Selling Unit of Measure
piece
Service Factor
1.15
Service Factor Percentage
1.15 %
Shaft Diameter
2.38 in
Short Description
75 HP, 1800 RPM, Frame Size 365Tc, C-Face, 3 PH, OPSB, 230/460 V
Standards
NEMA
Starting of Motor
Direct On Line
Stocked At (Warehouses)
China | Alabama, United States | Alaska, United States
Synchronous Speed (vsyn)
1800 r/min
Temperature Class Default
--
Two Speed Motor
No
Type of Duty
Continuous
UNSPSC
26101112
Voltage Code
G
Voltage Rating
230 V | 460 V
The 75 HP output and 1775 r/min rated speed deliver robust general purpose performance for conveyors, pumps, and fans, reducing cycle times and extending equipment life. The OPSB enclosure provides enhanced protection in indoor environments, helping you meet safety and regulatory requirements while minimizing indoor corrosion or contamination risks. The 365TC frame with foot mounting and C-face drive end flange enables straightforward installation, alignment, and compatibility with existing bases and couplings, cutting commissioning time. Premium IE2 efficiency lowers energy consumption across continuous operations, contributing to lower total cost of ownership and better sustainability metrics. A service factor of 1.15 adds tolerance for overloads and short-term surge conditions, improving equipment reliability under varying loads. Certifications including CSA, CSA EEV, and UR, plus NEMA design B, support regulatory compliance across North American facilities and supplier audits.
Get a Quick Quote for a ABB 7BCEM2551T
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 7BCEM2551T?
Enquire Now
FAQs
Install the motor on a flat, rigid base using the 365TC frame’s feet or mounting surface. Align the shaft with the driven equipment, ensure proper belt or coupling clearances, and secure the C-face drive end flange. Use appropriate fasteners and verify electrical connections match 230/460 V, 60 Hz, 3-phase supply. The OPSB enclosure provides protected access, simplifying field wiring and servicing.
The motor delivers 75 HP with a rated speed of 1775 r/min at 230/460 V and 60 Hz. It is a 3-phase device with a service factor of 1.15, insulation class F, and IE2 efficiency. Rated current sits around 170 A shaded (high) and 85 A (low) depending on voltage, with a 365TC frame and shaft diameter of 2.38 inches.
Yes. The design supports continuous duty with a 60 minute duty rating and a service factor of 1.15, which provides overload tolerance during peak loads. The OPSB enclosure and 365TC frame aid reliable operation in typical conveyor and pump installations, while the 230/460 V, 60 Hz configuration aligns with common plant power systems.
This motor carries CSA, CSA EEV, and UR certifications, indicating compliance with stringent North American electrical safety and reliability standards. It also references a NEMA B design and general purpose motor classification, which supports predictable performance in regulated manufacturing environments and simplifies supplier qualification and audits.
The C-Face drive end flange and 365TC frame offer straightforward mounting compatibility with standard bases, couplings, and motor bells. This reduces retrofit complexity, shortens commissioning times, and improves vibration damping and alignment accuracy—critical factors for durable performance in general purpose open motors used across conveyors, fans, and pumps.
