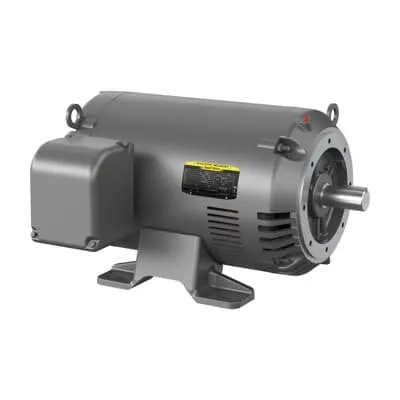

ABB 7BCEM2554T-4 General Purpose Motor - CSA EEV NEMA_PREMIUM UR
Part Number: 7BCEM2554T-4
Quick Summary
ABB 7BCEM2554T-4 General Purpose Motor is a 125 HP, 460 V three-phase motor designed for continuous operation in general industrial drives such as pumps and conveyors. When uptime is critical, stock variability and long lead times can derail maintenance schedules. This motor carries NEMA Premium Efficiency, CSA EEV, and UR listings to meet stringent performance and safety standards. By combining immediate availability with high-efficiency operation, it delivers tangible business value through reduced energy costs, dependable supply, and streamlined procurement for electrical components and industrial motors.
Product Information
Extended Description
7BCEM2554T-4 ABB: General Purpose Motor 125 Hp 460 V (CEM2554T-4)
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
EGAUT001EXPU
Warranty Return
Product under warranty must be returned
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
GBINS001EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
SGIND004EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
USABB014EXPU
Warranty Return
Product under warranty must be returned
ABB Type Designation
125HP,3540RPM,3PH,60HZ,404TSC,4476M
Ambient Temperature
40 °C
Bearing
6313
Bearing NDE
6312
Brake Present
No
Brand / Label
Baldor-Reliance
Catalog Number
CEM2554T-4
Certification Agency
CSA EEV | NEMA_PREMIUM | UR
Country of Origin
United States (US)
Customs Tariff Number
85015381
Drive End Flange Type
C-Face
Efficiency Level
Premium Efficiency (NEMA 12-12)
Electrical Data
Enclosure Type
OPSB
Frame Material
Steel
Frame Size
Undefined
Frequency (f)
60 Hz
Global Commercial Alias
CEM2554T-4
Gross Volume
33833.008 in³
Gross Weight
590 lb
Insulation Class
F
Invoice Description
125HP,3540RPM,3PH,60HZ,404TSC,4476M,OPSB
Made To Order
No
Medium Description
General Purpose 3PH Open, 125 HP, 3600 RPM, Frame Size 404Tsc, C-Face Mounting, 3 Phase, 460 V, 60 Hz (CEM2554T-4)
Minimum Order Quantity
1 piece
Motor Base Type
Foot Mounted
Motor Frame Size
404TSC
Mounting Orientation
Horizontal
Mounting Position
F1
NEMA Design Code
B
Number of Phases
3
Number of Poles
2P
Number of Poles (High)
2
Number of Speeds
single_speed
Order Multiple
1 piece
Output Power
125 Hp
Power Factor
88 %
Product Name
General Purpose 3PH Open
Product Net Depth / Length
40.625 in
Product Net Height
25.625 in
Product Net Weight
590 lb
Product Net Width
32.5 in
Product Type
Undefined
Quote Only
No
Rated Current (In)
143 A
Rated Efficiency
94.10 %
Rated Speed
3540 r/min
Selling Unit of Measure
piece
Service Factor
1.15
Shaft Diameter
2.13 in
Short Description
125 HP, 3600 RPM, Frame Size 404Tsc, C-Face, 3 PH, 460 V
Standards
NEMA
Starting of Motor
Wye Start - Delta Run
Stocked At (Warehouses)
China | Alabama, United States | Alaska, United States
Synchronous Speed (vsyn)
3600 r/min
Type of Duty
Continuous
Voltage Rating
460 V
The 125 HP, 460 V rating delivers robust torque for load-start and peak-demand scenarios, enabling reliableStart-Stop cycling in demanding applications. Business impact: improved process control and reduced energy waste due to a measured efficiency of 94.10% and a solid power factor of 0.88. Applications include pumps, fans, and conveyors in manufacturing and materials handling, where consistent speed and dependable operation translate to lower operating costs. The 3540 r/min rated speed (with a 3600 r/min synchronous speed) supports typical open-drive configurations, while 3-phase, 60 Hz operation simplifies electrical design and compatibility with common plant power systems. The Wye-Delta starting capability and NEMA design B classification help ensure smooth acceleration, protection, and broad installability across legacy systems.
Get a Quick Quote for a ABB 7BCEM2554T-4
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 7BCEM2554T-4?
Enquire Now
FAQs
Yes. The unit uses a 404TSC frame and C-Face mounting designed for horizontal, foot-mounted installation. It aligns with common Baldor-Reliance configurations, supports standard shaft dimensions (2.13 in), and is compatible with typical motor bases and bolting patterns used in open drip-proof enclosures. Verify alignment and coupling margins to ensure efficient belt or pulley drive connections.
Key specs include 125 HP output, 460 V, 3-phase, 60 Hz operation, rated speed of 3540 r/min, and a synchronous speed of 3600 r/min. Rated current is about 143 A, with a power factor of 0.88 and efficiency around 94.1%. The motor uses a Wye-Delta starting method and is built to NEMA Design B with OPSB enclosure for general industrial environments.
Yes. This motor is designed for continuous duty with a 1.15 service factor, robust steel frame construction, and an OPSB enclosure that protects against typical shop contaminants. Its premium efficiency and reliable start characteristics reduce wear on drive systems, while stock availability minimizes downtime during scheduled maintenance or sudden line changes.
The motor carries NEMA Premium Efficiency, CSA EEV, and UR listings. These certifications verify energy efficiency, safety compliance, and reliability for critical industrial applications. Meeting these standards helps with regulatory compliance, lowers operating costs through reduced energy use, and simplifies procurement by ensuring vendor and product qualification for responsible sourcing.
Plan for periodic inspection of the 404TSC frame, shaft alignment, and mounting hardware to prevent vibration-induced wear. The 125 HP, 460 V configuration benefits from the high-efficiency rating, yielding measurable energy savings over time. With 0-day lead times and multiple stocking warehouses, ROI is improved through lower downtime, faster replenishment, and consistent performance across plant lines.
