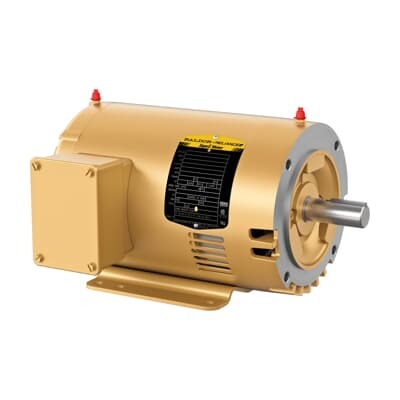

ABB 7BCEM3158T General Purpose Motor - OPSB Enclosure
Part Number: 7BCEM3158T
Quick Summary
General Purpose Motor provides a reliable 3 HP drive for conveyors and pumps in industrial facilities. Engineers often struggle to balance open-frame performance with the protection required for harsher environments. This ABB design supports IE2 premium efficiency, a NEMA design B profile, and an OPSB enclosure, with CSA, UR, and CSA EEV certifications, delivering robust performance across diverse duty cycles. With 230/460 V three‑phase capability and a 143TC frame, it enables scalable automation while reducing total cost of ownership through improved reliability and lower energy use. For integrators and procurement teams, this motor aligns standardization with dependable service life and predictable maintenance.
Product Information
Extended Description
7BCEM3158T ABB: General Purpose Motor 3 Hp 230 V (CEM3158T)
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
EGAUT001EXPU
Warranty Return
Product under warranty must be returned
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
GBINS001EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
SGIND004EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
USABB014EXPU
Warranty Return
Product under warranty must be returned
ABB Type Designation
3HP,3450RPM,3PH,60HZ,145TC,3530M,OP
Altitude
1000 m
Ambient Temperature
40 °C
Bearing
6205 | Ball
Bearing NDE
6203 | Ball
Brake Present
No
Brand / Label
Baldor-Reliance
Catalog Number
CEM3158T
Certification Agency
CSA | CSA EEV | UR
Country of Origin
United States (US)
Customs Tariff Number
85015220
Design
B
Dimension Diagram
35LYTT865: Dimension Sheet
Direction of Rotation
Both sides
Drive End Flange Type
C-Face
Duty Time
60 Min
ETIM 7
EC001851 - Electric motor
Efficiency Level
2015 Small Motor Standard | IE2 | Premium Efficiency (NEMA 12-12)
Electrical Data
Enclosure Type
OPSB
Frame Material
Steel
Frame Size
143
Frequency (f)
60 Hz
Global Commercial Alias
CEM3158T
Gross Volume
3496.049 inÂł
Gross Weight
46 lb
Horsepower Rating UL/CSA
3.000 Hp
IC Class
OPSB
IDEA Granular Category Code (IGCC)
1325 >> General purpose motor AC
IE Class Data (50 Hz)
IE Class NA
IE Class Data (60 Hz)
IE Class NA
IM Class
F1
Insulation Class
F
Invoice Description
3HP,3450RPM,3PH,60HZ,145TC,3530M,OPSB,F1
Lubrication
Regreasable
Made To Order
No
Medium Description
General Purpose 3PH Open, 3 HP, 3600 RPM, Frame Size 143Tc, C-Face Mounting, 3 Phase, OPSB Enclosure, 230/460 V, 60 Hz (CEM3158T)
Minimum Order Quantity
1 piece
Motor Base Type
Foot Mounted
Motor Frame Size
143TC
Motor Frame Suffix
TC
Mounting Orientation
Horizontal
Mounting Position
F1
NEMA Design Code
B
Number of Phases
3
Number of Poles
2P
Number of Poles (High)
2
Number of Speeds
Single Speed
Order Multiple
1 piece
Output Power
3 Hp
Power Factor
87 %
Product Name
General Purpose 3PH Open
Product Net Depth / Length
19.375 in
Product Net Height
13.123 in
Product Net Weight
46 lb
Product Net Width
13.75 in
Product Type
Undefined
Quote Only
No
Rated Current (In)
7.6 A | 3.8 A
Rated Efficiency
85.50 %
Rated Speed
3450 r/min
Replaced Product ID (OLD)
7B35TT865P988G1
RoHS Information
RoHS Compliant
Selling Unit of Measure
piece
Service Factor
1.15
Service Factor Percentage
1.15 %
Shaft Diameter
0.88 in
Short Description
3 HP, 3600 RPM, Frame Size 143Tc, C-Face, 3 PH, OPSB, 230/460 V
Standards
NEMA
Starting of Motor
Direct On Line
Stocked At (Warehouses)
China | Alabama, United States | Alaska, United States
Synchronous Speed (vsyn)
3600 r/min
Temperature Class Default
--
Two Speed Motor
No
Type of Duty
Continuous
UNSPSC
26101112
Voltage Code
K
Voltage Rating
230 V | 460 V
Feature → Business Impact → Application: 3 HP, 3450 rpm, 60 Hz, 230/460 V three‑phase operation enables consistent torque delivery for conveyors, pumps, and general machinery, reducing startup shocks and improving line throughput. This aligns with the need for reliable open-frame performance or OPSB enclosed protection in washdown or dusty environments, minimizing downtime and maintenance costs for industrial facilities. Feature → Business Impact → Application: 143TC frame with C‑Face mounting and foot mounting provides straightforward installation and interchangeability across existing equipment footprints, accelerating commissioning and spare parts planning. Feature → Business Impact → Application: IE2 premium efficiency reduces energy consumption on light to moderate load profiles, delivering measurable cost savings over the motor’s lifecycle while supporting sustainability initiatives. Feature → Business Impact → Application: Regreasable bearings (6205 | Ball; 6203 | Ball) and an insulation class F increase service intervals and resistance to heat, extending motor life in high-temperature environments and reducing replacement cycles in continuous duty setups. Feature → Business Impact → Application: OPSB enclosure and operating up to 40 °C ambient, with a 1000 m altitude rating, enhance reliability in harsh plants and outdoor installations, facilitating safer operation in challenging atmospheres. Feature → Business Impact → Application: Direct On Line starting and 60 Min duty rating enable quick ramp-up for line starts and easy control integration, supporting simple drive compatibility with existing VFDs or soft-start systems in automation schemes.
Get a Quick Quote for a ABB 7BCEM3158T
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 7BCEM3158T?
Enquire Now
FAQs
The 7BCEM3158T uses a 143TC frame and supports both C‑Face and foot mounting configurations, enabling straightforward replacement in existing equipment footprints. Its horizontal mounting orientation simplifies alignment with conveyors, pumps, and general machinery, while the open/open‑frame to OPSB options provide installation flexibility in lean facilities where space and accessibility are critical.
OPSB enclosure combines protection against dust and moisture with ease of maintenance. The motor’s 60 Hz operation at 230/460 V, combined with a 40 °C ambient rating and 1000 m altitude capability, ensures reliable performance in challenging environments. The enclosure choice helps protect bearings and windings, reducing maintenance frequency and extending service life in harsh settings.
Yes. This motor is designed for 3‑phase power at 60 Hz, with dual voltage 230 V / 460 V capability and a 3‑pole, 2‑pole configuration. It provides 3 HP at 3450 rpm and Direct On Line starting, making it compatible with standard plant electrical infrastructure and easy to integrate with existing VFD controls or direct line feeds.
The motor carries NEMA‑related design features and IE2 premium efficiency. It is certified under CSA, CSA EEV, and UR, aligning with multiple U.S. and Canadian regulatory frameworks. The combination of these certifications supports compliance for industrial equipment, electrical safety, and energy efficiency in North American installations.
IE2 premium efficiency reduces energy draw across typical load profiles, lowering operating costs over the motor’s life. The regreasable bearings support longer intervals between service, while the robust 60 Min duty rating and durable 143TC frame minimize replacement frequency. Overall, the motor delivers lower total cost of ownership through energy savings, fewer maintenance cycles, and extended service life.
