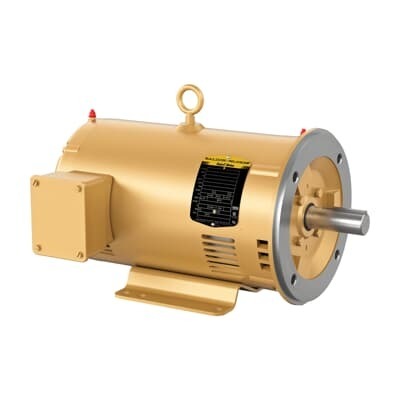

ABB 7BCEM3218T General Purpose Motor - IE3 Premium
Part Number: 7BCEM3218T
Quick Summary
ABB 7BCEM3218T General Purpose Motor provides reliable 5 HP open-drive power for general machinery across manufacturing lines. Engineers often confront compatibility gaps when upgrading to new drives, including matching voltage, enclosure, and mounting footprints. This motor is backed by CSA, CSA EEV, and UR certifications for electrical safety and global acceptance, while its NEMA-based design aligns with common industrial standards. With an OPSB enclosure and a 184TC frame, it delivers rugged performance in demanding environments. By combining premium efficiency with straightforward installation, it helps reduce energy costs and supports straightforward upgrades, making it a solid choice for OEMs, maintenance teams, and systems integrators pursuing uptime and cost containment.
Product Information
Extended Description
7BCEM3218T ABB: General Purpose Motor 5 Hp 230 V (CEM3218T)
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
EGAUT001EXPU
Warranty Return
Product under warranty must be returned
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
GBINS001EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
SGIND004EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
USABB014EXPU
Warranty Return
Product under warranty must be returned
ABB Type Designation
5HP,1750RPM,3PH,60HZ,184TC,3640M,OP
Altitude
1000 m
Ambient Temperature
40 °C
Bearing
6206 | Ball
Bearing NDE
6205 | Ball
Brake Present
No
Brand / Label
Baldor-Reliance
Catalog Number
CEM3218T
Certification Agency
CSA | CSA EEV | UR
Country of Origin
United States (US)
Customs Tariff Number
85015220
Design
B
Dimension Diagram
36LYB102: Dimension Sheet
Direction of Rotation
Both sides
Drive End Flange Type
C-Face
Duty Time
60 Min
ETIM 7
EC001851 - Electric motor
Efficiency Level
IE3 | Not Regulated / Exempt | Premium Efficiency (NEMA 12-12)
Electrical Data
Enclosure Type
OPSB
Frame Material
Steel
Frame Size
184
Frequency (f)
60 Hz
Global Commercial Alias
CEM3218T
Gross Volume
5274.135 inÂł
Gross Weight
87 lb
Horsepower Rating UL/CSA
5.000 Hp
IC Class
OPSB
IDEA Granular Category Code (IGCC)
1325 >> General purpose motor AC
IE Class Data (50 Hz)
IE Class NA
IE Class Data (60 Hz)
IE Class NA
IM Class
F1
Insulation Class
F
Invoice Description
5HP,1750RPM,3PH,60HZ,184TC,3640M,OPSB,F1
Lubrication
Regreasable
Made To Order
No
Medium Description
General Purpose 3PH Open, 5 HP, 1800 RPM, Frame Size 184Tc, C-Face Mounting, 3 Phase, OPSB Enclosure, 230/460 V, 60 Hz (CEM3218T)
Minimum Order Quantity
1 piece
Motor Base Type
Foot Mounted
Motor Frame Size
184TC
Motor Frame Suffix
TC
Mounting Orientation
Horizontal
Mounting Position
F1
NEMA Design Code
B
Number of Phases
3
Number of Poles
4P
Number of Poles (High)
4
Number of Speeds
Single Speed
Order Multiple
1 piece
Output Power
5 Hp
Power Factor
80 %
Product Name
General Purpose 3PH Open
Product Net Depth / Length
21.625 in
Product Net Height
15.125 in
Product Net Weight
87 lb
Product Net Width
16.125 in
Product Type
Undefined
Quote Only
No
Rated Current (In)
13.2 A | 6.6 A
Rated Efficiency
89.50 %
Rated Speed
1750 r/min
Replaced Product ID (OLD)
7B36B102S270G1
Selling Unit of Measure
piece
Service Factor
1.15
Service Factor Percentage
1.15 %
Shaft Diameter
1.13 in
Short Description
5 HP, 1800 RPM, Frame Size 184Tc, C-Face, 3 PH, OPSB, 230/460 V
Standards
NEMA
Starting of Motor
Direct On Line
Stocked At (Warehouses)
China | Alabama, United States | Alaska, United States
Synchronous Speed (vsyn)
1800 r/min
Temperature Class Default
--
Two Speed Motor
No
Type of Duty
Continuous
UNSPSC
26101112
Voltage Code
J
Voltage Rating
230 V | 460 V
Feature: The motor delivers 5 HP output at 1750 rpm, which provides sufficient torque for general purpose loads; Business Impact: Enables reliable operation with minimal drive changes; Application: conveyors, pumps, fans in food & beverage, packaging, and general manufacturing. Feature: 3-phase 60 Hz operation at 230/460 V; Business Impact: simplifies electrical design and reduces wiring complexity; Application: retrofit projects using standard plant power. Feature: IE3 Premium Efficiency rating; Business Impact: lower energy consumption and long-term operating cost savings; Application: high-duty cycles and continuous operation. Feature: OPSB enclosure; Business Impact: robust protection against dust and moisture in open plant environments; Application: outdoor or harsh indoor settings. Feature: 184TC frame with C-face mounting; Business Impact: standard footprint for quick replacement and compatible gearboxes; Application: OEM-driven machine retrofits. Feature: Direct On Line starting; Business Impact: simplified motor control and reduced start-up hardware; Application: light to moderate motor loads in automation lines. Additional Context: Bearings 6206/6205 Ball, Insulation Class F, Service Factor 1.15, and 1.13 in shaft diameter contribute to reliability; ROI is improved through reduced maintenance and energy efficiency.
Get a Quick Quote for a ABB 7BCEM3218T
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 7BCEM3218T?
Enquire Now
FAQs
The motor supports 230 and 460 V in 3‑phase, 60 Hz service and uses a standard 184TC frame with C‑face mounting and a foot-mounted base, enabling straightforward retrofits and seamless integration with existing plant power.
Key specs include 5 HP output, rated speed 1750 r/min, synchronous speed 1800 r/min, voltage 230/460 V, 60 Hz, insulation class F, service factor 1.15, and efficiency IE3 with a 0.8 PF, suitable for continuous duty loads.
Ideal for conveyors, pumps, and fans in general industrial settings; its OPSB enclosure and rugged frame support reliable operation in open, moderately harsh environments with straightforward maintenance.
This motor carries CSA, CSA EEV, and UR certifications, supporting global electrical safety compliance, with a NEMA-based design reference and documented industry-standard features.
Regreasable bearings, IE3 efficiency, and a 87 lb weight with a robust 184TC footprint reduce maintenance downtime and energy costs, delivering favorable total cost of ownership over typical industrial cycles.
