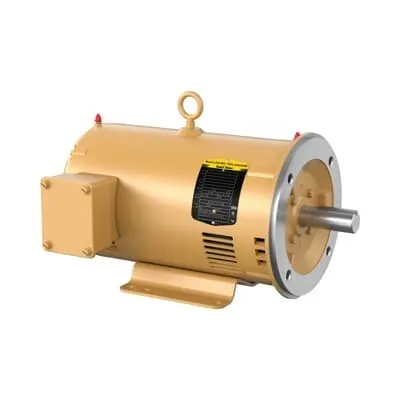

ABB Shaft Ground 7BCEM3219T-G - OPSB Enclosure
Part Number: 7BCEM3219T-G
Quick Summary
ABB Shaft Ground 7BCEM3219T-G provides reliable shaft grounding for heavy-duty motor drives. Engineers often struggle with inconsistent grounding and EMI when integrating high-efficiency motors into OPSB enclosure systems. This model carries NEMA Premium Efficiency, CSA EEV, and UR certifications, reinforcing compliance and quality. With a 7.5 HP footprint at 230/460 V and a compact 184TC frame, it streamlines installation while delivering uptime improvements and energy savings for continuous-process equipment and heavy-load applications.
Product Information
Extended Description
7BCEM3219T-G ABB: Shaft Ground 7.5 Hp 230 V (CEM3219T-G)
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
EGAUT001EXPU
Warranty Return
Product under warranty must be returned
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
GBINS001EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
SGIND004EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
USABB014EXPU
Warranty Return
Product under warranty must be returned
ABB Type Designation
7.5HP,3450RPM,3PH,60HZ,184TC,OPSB,F
Ambient Temperature
40 °C
Bearing
6206
Bearing NDE
6205
Brake Present
No
Brand / Label
Baldor-Reliance
Catalog Number
CEM3219T-G
Certification Agency
CSA EEV | NEMA_PREMIUM | UR
Country of Origin
United States (US)
Customs Tariff Number
85015220
Drive End Flange Type
C-Face
Efficiency Level
Premium Efficiency (NEMA 12-12)
Electrical Data
Enclosure Type
OPSB
Frame Material
Steel
Frame Size
184
Frequency (f)
60 Hz
Global Commercial Alias
CEM3219T-G
Gross Volume
3496.049 in³
Gross Weight
77 lb
Insulation Class
H
Invoice Description
7.5HP,3450RPM,3PH,60HZ,184TC,OPSB,F1
Made To Order
No
Medium Description
Shaft Ground, 7.5 HP, 3600 RPM, Frame Size 184Tc, C-Face Mounting, 3 Phase, OPSB Enclosure, 230/460 V, 60 Hz (CEM3219T-G)
Minimum Order Quantity
1 piece
Motor Base Type
Foot Mounted
Motor Frame Size
184TC
Mounting Orientation
Horizontal
Mounting Position
F1
NEMA Design Code
A
Number of Phases
3
Number of Poles
2P
Number of Poles (High)
2
Number of Speeds
single_speed
Order Multiple
1 piece
Output Power
7.5 Hp
Power Factor
89 %
Product Name
Shaft Ground
Product Net Depth / Length
19.375 in
Product Net Height
13.123 in
Product Net Weight
77 lb
Product Net Width
13.75 in
Product Type
Undefined
Quote Only
No
Rated Current (In)
17.2 A | 8.6 A
Rated Efficiency
88.50 %
Rated Speed
3450 r/min
Selling Unit of Measure
piece
Service Factor
1.15
Shaft Diameter
1.13 in
Shaft Grounding
Shaft Grounding
Short Description
7.5 HP, 3600 RPM, Frame Size 184Tc, C-Face, 3 PH, OPSB, 230/460 V
Standards
NEMA
Starting of Motor
Direct on line
Stocked At (Warehouses)
China | Alabama, United States | Alaska, United States
Synchronous Speed (vsyn)
3600 r/min
Type of Duty
Continuous
Voltage Rating
230 V | 460 V
Feature → Business Impact → Application: Shaft grounding design creates a controlled grounding path that minimizes bearing currents and electrical noise, translating to longer bearing life and fewer unplanned downtime; ideal for conveyors, pumps, and extruders operating in challenging electrical environments. Feature → Business Impact → Application: OPSB enclosure protection combined with a steel 184TC frame provides rugged reliability and straightforward installation on factory floors, reducing maintenance time and enabling faster line upgrades in automated systems. Feature → Business Impact → Application: Premium efficiency and a 60 Hz, 230/460 V rating deliver measurable energy savings and reduced operating costs, meeting regulatory requirements while supporting sustainability goals in manufacturing plants. Feature → Business Impact → Application: Direct-on-Line starting for a 3-phase, 3450 r/min motor simplifies integration with existing starters, lowers total cost of ownership, and supports reliable startup in high-inertia loads like mixers and pumps. Feature → Business Impact → Application: Shaft Grounding capability with a 1.13 in shaft and 77 lb weight enhances EMI control and motor reliability, suitable for sensitive instrumentation areas and high-duty cycles in process lines.
Get a Quick Quote for a ABB 7BCEM3219T-G
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 7BCEM3219T-G?
Enquire Now
FAQs
This motor uses a 184TC frame and is foot-mounted with horizontal orientation (F1) and C-face drive end. It is designed for OPSB enclosure installations and supports 230/460 V, 60 Hz three-phase systems, enabling straightforward upgrades in existing lines.
The 7BCEM3219T-G carries NEMA Premium Efficiency, CSA EEV, and UR certifications, which support energy efficiency requirements, safety compliance, and universal recognition for electrical equipment in North American markets.
Yes. The motor is rated for Direct-on-Line starting, with a 3-phase, 2-pole design at 3450 r/min, which simplifies control schemes and reduces startup hardware, provided the connected drive system supports DOL operation.
Shaft grounding reduces bearing currents and EMI, potentially extending bearing life and reducing electrical noise. Regular inspection of shaft grounding paths and enclosure integrity helps maintain performance in continuous-duty environments.
Operating temperature is up to 40 °C, with a 77 lb gross weight and 184TC frame size. It fits foot-mounted, horizontally oriented installations with OPSB enclosures, and supports 230/460 V, 60 Hz three-phase systems for standard industrial drives.
