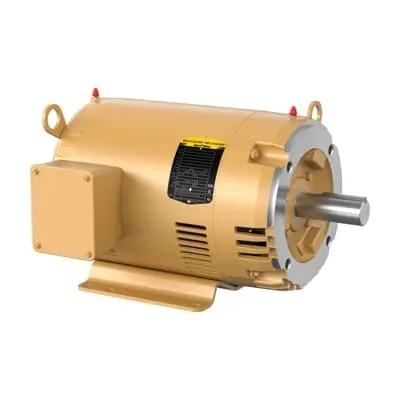

ABB 7BCEM3305T-G Severe Duty Motor - Premium Efficiency
Part Number: 7BCEM3305T-G
Quick Summary
ABB 7BCEM3305T-G Severe Duty Motor is a robust 3 HP, 230/460 V three-phase drive designed for demanding industrial applications. Many engineers struggle with reliability and energy waste in harsh environments, where downtime costs escalate quickly. This motor carries CSA, CSA EEV and UR certifications, plus NEMA standards and premium efficiency to meet rigorous safety and performance specs. Together with a 213TC frame, OPSB enclosure, and easy 3-phase installation, it supports reliable uptime and measurable energy savings.
Product Information
Extended Description
7BCEM3305T-G ABB: Severe Duty Motor 3 Hp 230 V (CEM3305T-G)
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
EGAUT001EXPU
Warranty Return
Product under warranty must be returned
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
GBINS001EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
SGIND004EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
USABB014EXPU
Warranty Return
Product under warranty must be returned
ABB Type Designation
3HP,1165RPM,3PH,60HZ,213TC,3734M,OP
Ambient Temperature
40 °C
Bearing
6307 | Ball
Bearing NDE
6206 | Ball
Brake Present
No
Brand / Label
Baldor-Reliance
Catalog Number
CEM3305T-G
Certification Agency
CSA | CSA EEV | UR
Country of Origin
United States (US)
Customs Tariff Number
85015220
Dimension Diagram
37LYK447: Dimension Sheet
Drive End Flange Type
C-Face
Duty Time
60 Min
ETIM 7
EC001851 - Electric motor
Efficiency Level
Premium Efficiency (NEMA 12-12)
Electrical Data
Enclosure Type
OPSB
Frame Material
Steel
Frame Size
213
Frequency (f)
60 Hz
Global Commercial Alias
CEM3305T-G
Gross Volume
7561.383 in³
Gross Weight
131 lb
IDEA Granular Category Code (IGCC)
1325 >> General purpose motor AC
Insulation Class
H
Invoice Description
3HP,1165RPM,3PH,60HZ,213TC,3734M,OPSB,F1
Made To Order
No
Medium Description
Severe Duty, 3 HP, 1200 RPM, Frame Size 213Tc, C-Face Mounting, 3 Phase, OPSB Enclosure, 230/460 V, 60 Hz (CEM3305T-G)
Minimum Order Quantity
1 piece
Motor Base Type
Foot Mounted
Motor Frame Size
213TC
Motor Frame Suffix
TC
Mounting Orientation
Horizontal
Mounting Position
F1
NEMA Design Code
B
Number of Phases
3
Number of Poles
6P
Number of Poles (High)
6
Number of Speeds
Single Speed
Order Multiple
1 piece
Output Power
3 Hp
Power Factor
70 %
Product Name
Severe Duty
Product Net Depth / Length
26.375 in
Product Net Height
17.375 in
Product Net Weight
131 lb
Product Net Width
16.5 in
Product Type
Undefined
Quote Only
No
Rated Current (In)
9 A | 4.5 A
Rated Efficiency
88.50 %
Rated Speed
1165 r/min
Selling Unit of Measure
piece
Service Factor
1.15
Shaft Diameter
1.38 in
Shaft Grounding
Shaft Grounding
Short Description
3 HP, 1200 RPM, Frame Size 213Tc, C-Face, 3 PH, OPSB, 230/460 V
Standards
NEMA
Starting of Motor
Direct On Line
Stocked At (Warehouses)
China | Alabama, United States | Alaska, United States
Synchronous Speed (vsyn)
1200 r/min
Type of Duty
Continuous
UNSPSC
26101112
Voltage Rating
230 V | 460 V
3 HP output at 230/460 V, 60 Hz provides compatible power for common industrial loads. This enables direct-on-line starting with minimal controller complexity, reducing startup transients and motor wear. Ideal for conveyors, pumps, and fans in manufacturing lines where a reliable, single-speed drive is essential. 213TC frame with OPSB enclosure offers robust protection in dusty, humid, or wash-down environments. The C-face drive end flange and foot-mounted base provide flexible mounting and alignment, simplifying retrofit and upgrades. This setup supports easy installation in tight spaces and maintains shaft alignment during operation. Premium Efficiency (NEMA 12-12) with an efficiency around 88.50% lowers operating costs by reducing energy losses during heavy use. The insulation class H and heavy-duty bearings (6307 Ball) extend service life in vibration-prone applications, delivering lower maintenance needs and longer MTBM. Shaft diameter of 1.38 in and shaft grounding improve reliability under routine loads and mechanical shocks. Synchronous speed of 1200 r/min with a measured speed of 1165 r/min provides predictable performance for process lines. Direct On Line starting keeps system design simple and cost-effective, reducing inrush and control hardware requirements. Stocked at multiple warehouses with 0 day lead time, plus a warranty policy that product under warranty must be returned, supports fast procurement and risk-managed ownership for mission-critical lines.
Get a Quick Quote for a ABB 7BCEM3305T-G
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 7BCEM3305T-G?
Enquire Now
FAQs
The 7BCEM3305T-G uses a C-face drive end flange and is designed for foot-mounted installation. It features the OPSB enclosure for rugged protection in demanding environments, and the mounting orientation is horizontal with a frame size of 213TC, enabling straightforward retrofit into existing lines.
This is a 3 HP, 230/460 V, 60 Hz motor with 3-phase power. Rated current is 9 A / 4.5 A, and the motor delivers Premium Efficiency (NEMA 12-12) with an insulation class of H. The rated speed is 1165 r/min with a synchronous speed of 1200 r/min, suitable for energy-conscious applications.
Yes. The OPSB enclosure provides enclosure protection, and the frame is built for continuous duty. The ambient temperature rating is 40 °C, and the robust 213TC frame with ball bearings supports sustained loads, reducing maintenance and downtime in harsh environments.
The motor carries CSA, CSA EEV, and UR certifications, and conforms to NEMA standards. It also aligns with Premium Efficiency (NEMA 12-12), ensuring regulatory compliance and energy-performance guarantees for industrial installations.
Lead time is listed as 0 day, and the product is stocked at multiple warehouses. Availability is Active, with stock locations including US and international facilities to support rapid procurement and quick deployment in your plant.
