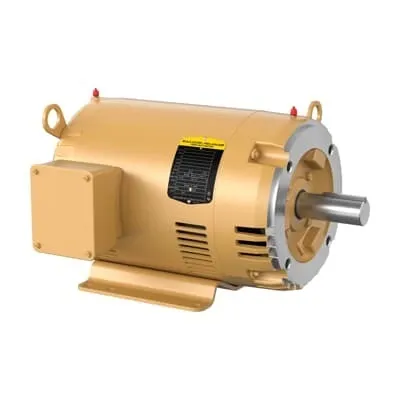

ABB 7BCEM3312T General Purpose Motor - OPSB 230V/60Hz
Part Number: 7BCEM3312T
Quick Summary
General Purpose Motor ABB 7BCEM3312T delivers reliable 10 HP open-drive performance for industrial pumps and fans. This model addresses downtime and procurement friction by offering near-zero lead times and broad stocking across multiple warehouses. It carries CSA, CSA EEV, and UR certifications, along with NEMA Design B and Premium Efficiency ratings, ensuring safety, compliance, and energy-cost savings. For OEMs and maintenance teams, the combination of standard 213TC frame, 3-phase 230/460 V operation, and open, C-face mounting translates into faster installation, easier retrofits, and predictable maintenance cycles, delivering tangible business value in mixed-industrial environments.
Product Information
Extended Description
7BCEM3312T ABB: General Purpose Motor 10 Hp 230 V (CEM3312T)
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
EGAUT001EXPU
Warranty Return
Product under warranty must be returned
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
GBINS001EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
SGIND004EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
USABB014EXPU
Warranty Return
Product under warranty must be returned
ABB Type Designation
10HP,3500RPM,3PH,60HZ,213TC,3728M,O
Altitude
1000 m
Ambient Temperature
40 °C
Bearing
6307 | Ball
Bearing NDE
6206 | Ball
Brake Present
No
Brand / Label
Baldor-Reliance
Catalog Number
CEM3312T
Certification Agency
CSA | CSA EEV | UR
Country of Origin
United States (US)
Customs Tariff Number
85015220
Design
B
Dimension Diagram
37LYB102: Dimension Sheet
Direction of Rotation
Both sides
Drive End Flange Type
C-Face
Duty Time
60 Min
ETIM 7
EC001851 - Electric motor
Efficiency Level
Premium Efficiency (NEMA 12-12)
Electrical Data
Enclosure Type
OPSB
Frame Material
Steel
Frame Size
213
Frequency (f)
60 Hz
Global Commercial Alias
CEM3312T
Gross Volume
7192.91 in³
Gross Weight
121 lb
Horsepower Rating UL/CSA
10.000 Hp
IC Class
OPSB
IDEA Granular Category Code (IGCC)
1325 >> General purpose motor AC
IE Class Data (50 Hz)
IE Class NA
IE Class Data (60 Hz)
IE Class NA
IM Class
F1
Insulation Class
F
Invoice Description
10HP,3500RPM,3PH,60HZ,213TC,3728M,OPSB,F
Lubrication
Regreasable
Made To Order
No
Medium Description
General Purpose 3PH Open, 10 HP, 3600 RPM, Frame Size 213Tc, C-Face Mounting, 3 Phase, OPSB Enclosure, 230/460 V, 60 Hz (CEM3312T)
Minimum Order Quantity
1 piece
Motor Base Type
Foot Mounted
Motor Frame Size
213TC
Motor Frame Suffix
TC
Mounting Orientation
Horizontal
Mounting Position
F1
NEMA Design Code
B
Number of Phases
3
Number of Poles
2P
Number of Poles (High)
2
Number of Speeds
Single Speed
Order Multiple
1 piece
Output Power
10 Hp
Power Factor
85 %
Product Name
General Purpose 3PH Open
Product Net Depth / Length
26.625 in
Product Net Height
16.25 in
Product Net Weight
121 lb
Product Net Width
16.625 in
Product Type
Undefined
Quote Only
No
Rated Current (In)
24 A | 12 A
Rated Efficiency
90.20 %
Rated Speed
3500 r/min
Selling Unit of Measure
piece
Service Factor
1.15
Service Factor Percentage
1.15 %
Shaft Diameter
1.38 in
Short Description
10 HP, 3600 RPM, Frame Size 213Tc, C-Face, 3 PH, OPSB, 230/460 V
Standards
NEMA
Starting of Motor
Direct On Line
Stocked At (Warehouses)
China | Alabama, United States | Alaska, United States
Synchronous Speed (vsyn)
3600 r/min
Temperature Class Default
--
Two Speed Motor
No
Type of Duty
Continuous
UNSPSC
26101112
Voltage Code
G
Voltage Rating
230 V | 460 V
Feature: 10 HP, 3500 rpm, 213TC frame, 3-phase, 60 Hz, 230/460 V operation with a C-face mount. Business Impact: This familiar footprint reduces design time, simplifies drive integration, and supports straightforward retrofits into legacy conveyor and pump lines, delivering faster time-to-value. Application: Ideal for general-purpose, continuous-duty tasks in light-industrial environments such as material handling, pumping stations, and ventilation systems, where reliability and ease of installation are critical. Feature: OPSB enclosure and steel frame deliver robust protection for open, general-use motors in mixed environments. Business Impact: The enclosure type supports better dust and incidental environment resistance, lowering maintenance cycles and extending service life in factory floors and machine rooms. Application: Fits standard installation practices on floor-mounted bases, compatible with 230/460 V power distribution, and integrates with common VFDs and soft starters used in fans, pumps, and packaging lines. Feature: Premium efficiency rating (90.20%) with insulation class F and a 1.15 service factor. Business Impact: Lower energy consumption reduces operating costs, while the high insulation class supports sustained performance under elevated ambient temperatures and longer duty cycles. Application: Suitable for continuous operation in 40 °C ambient conditions up to 1000 m elevation, such as warehouse automation, process cooling, and assembly lines that demand consistent motor performance and durability. Feature: Regreasable bearings (6307/Ball) and 1.38 in shaft diameter assist maintenance and longevity. Business Impact: Predictable maintenance windows and easier bearing servicing minimize downtime, while reliable shaft and bearing specs support higher system uptime. Application: Perfect for conveyors and pumps where maintenance intervals are planned and parts availability from US and international stock is advantageous.
Get a Quick Quote for a ABB 7BCEM3312T
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 7BCEM3312T?
Enquire Now
FAQs
The 7BCEM3312T uses a 213TC frame with 3-phase 230/460 V input at 60 Hz and a C-face mounting. Retrofit planning should align with a floor-mounted base, ensure compatible power wiring for 230/460 V supply, and verify that space and alignment match the motor shaft diameter of 1.38 in. The open OPSB enclosure supports standard protection for general industrial environments.
Performance highlights include 10 HP output at 3500 r/min, a 2-pole configuration, 60 Hz operation, and a service factor of 1.15. Insulation class is F, with a premium efficiency rating, and a 3-phase supply at 230/460 V. The motor is designed for continuous duty with direct-on-line starting and a shaft diameter of 1.38 inches for compatible couplings.
Yes. It is built for continuous-duty use in light-industrial settings such as pumps, fans, and conveyors, with a robust OPSB enclosure and steel frame. Its 60 Hz, 230/460 V 3-phase design plus precision bearings support reliable operation under normal ambient conditions (up to 40 °C and 1000 m altitude), making it versatile for both new builds and retrofits.
The motor carries CSA, CSA EEV, and UR certifications, along with a NEMA Design B configuration and premium efficiency designation. These approvals support compliance with electrical safety, energy efficiency, and performance standards across North American markets, facilitating safer operation and easier customer acceptance in regulated environments.
The motor's energy efficiency (90.2%) lowers operating costs over the life of the equipment, while regreasable bearings and a durable OPSB enclosure reduce maintenance frequency. With stock readily available across multiple warehouses, downtime costs are minimized during replacements or upgrades, delivering a favorable ROI for OEMs and maintenance teams focused on uptime and lifecycle cost reductions.
