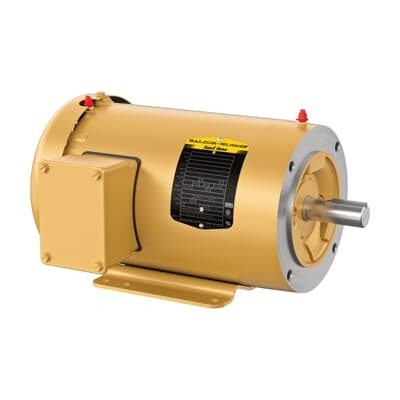

ABB 7BCEM3554T General Purpose Motor - TEFC, 60 Hz, 1.5HP
Part Number: 7BCEM3554T
Quick Summary
General Purpose Motor 1.5 HP powers conveyors, pumps and other light-industrial equipment with reliable 3-phase performance. Engineers often face mounting, voltage, and lead-time challenges when integrating motors into existing systems. This ABB motor meets NEMA-style expectations while delivering CSA and UR certifications for safer procurement, and Premium Efficiency for lower operating costs. With cross-compatibility at 230/460 V and a compact 145TC frame, it enables streamlined stocking and faster installation, reducing downtime and total cost of ownership for OEMs and maintenance teams alike.
Product Information
Extended Description
7BCEM3554T ABB: General Purpose Motor 1.5 Hp 230 V (CEM3554T)
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
EGAUT001EXPU
Warranty Return
Product under warranty must be returned
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
GBINS001EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
SGIND004EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
USABB014EXPU
Warranty Return
Product under warranty must be returned
ABB Type Designation
1.5HP,1770RPM,3PH,60HZ,145TC,3524M,
Altitude
1000 m
Ambient Temperature
40 °C
Bearing
6205 | Ball
Bearing NDE
6203 | Ball
Brake Present
No
Brand / Label
Baldor-Reliance
Catalog Number
CEM3554T
Certification Agency
CSA | CSA EEV | UR
Country of Origin
United States (US)
Customs Tariff Number
85015220
Design
B
Dimension Diagram
35LYAA002: Dimension Sheet
Direction of Rotation
Both sides
Drive End Flange Type
C-Face
Duty Time
60 Min
ETIM 7
EC001851 - Electric motor
Efficiency Level
Premium Efficiency (NEMA 12-12)
Electrical Data
Enclosure Type
TEFC
Frame Material
Steel
Frame Size
145
Frequency (f)
60 Hz
Global Commercial Alias
CEM3554T
Gross Volume
3496.049 inÂł
Gross Weight
42 lb
Horsepower Rating UL/CSA
1.500 Hp
IC Class
TEFC
IDEA Granular Category Code (IGCC)
1325 >> General purpose motor AC
IE Class Data (50 Hz)
IE Class NA
IE Class Data (60 Hz)
IE Class NA
IM Class
NEMA Foot with Face
Insulation Class
F
Invoice Description
1.5HP,1770RPM,3PH,60HZ,145TC,3524M,TEFC
Lubrication
Regreasable
Made To Order
No
Medium Description
General Purpose 3PH Enclosed, 1.5 HP, 1800 RPM, Frame Size 145Tc, C-Face Mounting, 3 Phase, TEFC Enclosure, 230/460 V, 60 Hz (CEM355
Minimum Order Quantity
1 piece
Motor Base Type
Foot Mounted
Motor Frame Size
145TC
Motor Frame Suffix
TC
Mounting Orientation
Horizontal
Mounting Position
F1
NEMA Design Code
B
Number of Phases
3
Number of Poles
4P
Number of Poles (High)
4
Number of Speeds
Single Speed
Order Multiple
1 piece
Output Power
1.5 Hp
Power Factor
72 %
Product Name
General Purpose 3PH Enclosed
Product Net Depth / Length
19.375 in
Product Net Height
13.123 in
Product Net Weight
42 lb
Product Net Width
13.75 in
Product Type
NEMA_PREMIUM
Quote Only
No
Rated Current (In)
4.6 A | 2.3 A
Rated Efficiency
86.50 %
Rated Speed
1770 r/min
Selling Unit of Measure
piece
Service Factor
1.15
Service Factor Percentage
1.15 %
Shaft Diameter
0.88 in
Short Description
1.5 HP, 1800 RPM, Frame Size 145Tc, C-Face, 3 PH, TEFC, 230/460 V
Standards
NEMA
Starting of Motor
Direct On Line
Stocked At (Warehouses)
Menden, Germany | China | Alabama, United States | Alaska, United States
Synchronous Speed (vsyn)
1800 r/min
Temperature Class Default
--
Two Speed Motor
No
Type of Duty
Continuous
UNSPSC
26101112
Voltage Code
L
Voltage Rating
230 V | 460 V
Feature: TEFC enclosure provides rugged, dust- and moisture-resistant operation. Business Impact: Greater uptime in dirty or harsh environments translates to fewer unplanned shutdowns and maintenance costs. Application: Ideal for continuous-duty drives in manufacturing lines and material handling systems. Feature: 1.5 HP output with 1770 r/min nominal speed and 60 Hz rating. Business Impact: Balanced horsepower and speed yield reliable torque with energy-efficient performance. Application: Suitable for conveyors, fans and pumps requiring consistent slow-speed operation. Feature: 230/460 V, 3-phase voltage compatibility. Business Impact: Reduces inventory complexity and enables multi-sourcing options across US and international sites. Application: Retrofit projects and new builds across varied electrical systems. Feature: Regreasable lubrication and 4-pole design with 1.15 service factor. Business Impact: Lower maintenance costs and improved reliability under continuous duty. Application: Heavy use in automation lines and packaging machinery. Feature: Frame Size 145TC, foot-mounted with C-face drive end flange. Business Impact: Enables easy alignment, mounting flexibility, and straightforward installation. Application: Retrofit into existing NEMA-compatible housings and standard motor bases. Feature: Premium Efficiency and NEMA Design B characteristics. Business Impact: Energy savings, reduced heat, and compliance with efficiency targets. Application: Industrial facilities aiming to lower energy bills and improve air quality by reducing cooling loads. Feature: Insulation Class F and 42 lb weight class with a 0.88 in shaft. Business Impact: Enhanced thermal stability and durability for long service life. Application: Severe-duty environments requiring robust mechanical performance. Feature: Certifications including CSA, CSA EEV, UR and NEMA standards. Business Impact: Streamlined procurement with compliance confidence and safer, traceable supply chains. Application: Aerospace, automotive, and general manufacturing segments needing verified electrical safety and reliability.
Get a Quick Quote for a ABB 7BCEM3554T
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 7BCEM3554T?
Enquire Now
FAQs
The 7BCEM3554T uses a foot-mounted with C-face drive end flange configuration and a horizontal mounting orientation (F1). With a 145TC frame and 0.88 inch shaft diameter, it aligns easily with standard bases and couplings. Ensure adequate clearance for TEFC enclosure cooling and verify alignment during installation to optimize efficiency and reduce vibration.
This motor runs on 3-phase 230/460 V at 60 Hz, with rated current of 4.6 A (nominal) and 2.3 A depending on voltage. It features a 4-pole configuration, nominal speed of 1770 r/min, and insulation class F. The dual-voltage capability simplifies stocking and allows seamless integration with existing electrical infrastructure.
Yes, the 7BCEM3554T is designed for continuous duty with a service factor of 1.15 and Premium Efficiency per NEMA. Its rated efficiency is 86.5%, helping reduce running costs and heat generation on long-running applications like conveyors and pumps.
The motor carries CSA, CSA EEV, and UR certifications and aligns with NEMA standards, supporting safe, compliant procurement. It’s designed for robust industrial use, with a TEFC enclosure that enhances reliability in demanding environments.
Key ROI drivers include energy savings from Premium Efficiency, reduced maintenance due to regreasable lubrication, and lower downtime thanks to rugged TEFC protection. The motor’s versatility with dual voltage, FRAME 145TC, and robust mounting options also lowers total cost of ownership during retrofit projects.
