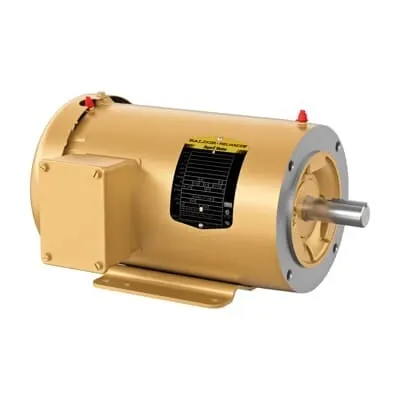

ABB 7BCEM3555T General Purpose Motor - IE3 Premium
Part Number: 7BCEM3555T
Quick Summary
ABB 7BCEM3555T General Purpose Motor is a robust 3‑phase, 2 HP drive suited for general purpose applications such as conveyors, pumps, and fans in production lines. Designed to drop into existing equipment with a 143TC frame and TEFC enclosure, it reduces integration risk and downtime when upgrading legacy motors. It carries IE3 Premium Efficiency and NEMA Premium guidance, along with CSA/UR certification and RoHS compliance, helping you meet energy targets and regulatory requirements. With stock available for immediate shipment and 0 day lead times at major warehouses across the US, Europe, and Asia, procurement is simplified and project timelines stay on track.
Product Information
Extended Description
7BCEM3555T ABB: General Purpose Motor 2 Hp 230 V (CEM3555T)
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
EGAUT001EXPU
Warranty Return
Product under warranty must be returned
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
GBINS001EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
SGIND004EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
USABB014EXPU
Warranty Return
Product under warranty must be returned
ABB Type Designation
2HP,3490RPM,3PH,60HZ,145TC,3526M,TE
Altitude
1000 m
Ambient Temperature
40 °C
Bearing
6205 | Ball
Bearing NDE
6203 | Ball
Brake Present
No
Brand / Label
Baldor-Reliance
Catalog Number
CEM3555T
Certification Agency
CSA | CSA EEV | UR
Country of Origin
United States (US)
Customs Tariff Number
85015220
Design
B
Dimension Diagram
35LYTT856: Dimension Sheet
Direction of Rotation
Both sides
Drive End Flange Type
C-Face
Duty Time
60 Min
ETIM 7
EC001851 - Electric motor
Efficiency Level
2015 Small Motor Standard | IE3 | Premium Efficiency (NEMA 12-12)
Electrical Data
Enclosure Type
TEFC
Frame Material
Steel
Frame Size
143
Frequency (f)
60 Hz
Global Commercial Alias
CEM3555T
Gross Volume
3496.049 inÂł
Gross Weight
44 lb
Horsepower Rating UL/CSA
2.000 Hp
IC Class
TEFC
IDEA Granular Category Code (IGCC)
1325 >> General purpose motor AC
IE Class Data (50 Hz)
IE Class NA
IE Class Data (60 Hz)
IE Class NA
IM Class
NEMA Foot with Face
Insulation Class
F
Invoice Description
2HP,3490RPM,3PH,60HZ,145TC,3526M,TEFC,F1
Lubrication
Regreasable
Made To Order
No
Medium Description
General Purpose 3PH Enclosed, 2 HP, 3600 RPM, Frame Size 143Tc, C-Face Mounting, 3 Phase, TEFC Enclosure, 230/460 V, 60 Hz (CEM3555T
Minimum Order Quantity
1 piece
Motor Base Type
Foot Mounted
Motor Frame Size
143TC
Motor Frame Suffix
TC
Mounting Orientation
Horizontal
Mounting Position
F1
NEMA Design Code
B
Number of Phases
3
Number of Poles
2P
Number of Poles (High)
2
Number of Speeds
Single Speed
Order Multiple
1 piece
Output Power
2 Hp
Power Factor
88 %
Product Name
General Purpose 3PH Enclosed
Product Net Depth / Length
19.375 in
Product Net Height
13.123 in
Product Net Weight
44 lb
Product Net Width
13.75 in
Product Type
NEMA_PREMIUM
Quote Only
No
Rated Current (In)
5 A | 2.5 A
Rated Efficiency
85.50 %
Rated Speed
3490 r/min
Replaced Product ID (OLD)
7B35TT856M774G1
RoHS Information
RoHS Compliant
Selling Unit of Measure
piece
Service Factor
1.15
Service Factor Percentage
1.15 %
Shaft Diameter
0.88 in
Short Description
2 HP, 3600 RPM, Frame Size 143Tc, C-Face, 3 PH, TEFC, 230/460 V
Standards
NEMA
Starting of Motor
Direct On Line
Stocked At (Warehouses)
Menden, Germany | China | Alabama, United States | Alaska, United States
Synchronous Speed (vsyn)
3600 r/min
Temperature Class Default
--
Two Speed Motor
No
Type of Duty
Continuous
UNSPSC
26101112
Voltage Code
M
Voltage Rating
230 V | 460 V
Feature is IE3 premium efficiency providing measurable energy savings and reduced operating costs for continuous-duty lines. Impact is lower energy bills and improved sustainability metrics, enabling you to meet corporate targets while maintaining performance in pumps, fans, or conveyors. Application spans general purpose motor tasks in manufacturing environments where compliance and reliability matter. Feature is TEFC enclosure with a 143TC frame and C-Face mounting for rugged service in dirty or humid environments. Impact is extended motor life and easier installation with existing drive systems, reducing commissioning time and field wiring effort. Application includes material handling and process lines where quick upgrades are essential. Feature is dual voltage rating 230 V / 460 V and direct-on-line starting for flexible deployment across global plants. Impact is inventory simplification and fast startup, minimizing downtime during changes in production schedules. Application includes multinational facilities with varied electrical infrastructures. Feature is roHS compliant, CSA/UR certified, and NEMA design B with a service factor of 1.15. Impact is regulatory compliance, safer operation, and predictable performance in regulated industries. Application includes food & beverage, chemical processing, and packaging lines where consistent torque and reliability are critical. Feature is maintenance-friendly design with regreasable bearings (6205) and robust steel frame; impact is lower maintenance costs and longer service intervals, improving total cost of ownership. Application includes long-running fans, pumps, and conveyors in harsh environments. Feature is stock availability and zero lead time for rapid deployment, reducing downtime and accelerating project timelines. Application includes emergency replacements or plant-wide retrofits where speed and reliability are essential.
Get a Quick Quote for a ABB 7BCEM3555T
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 7BCEM3555T?
Enquire Now
FAQs
Yes. The 7BCEM3555T is designed around a 143TC frame and C-Face drive end flange for horizontal mounting, paired with a TEFC enclosure that protects the windings in dirty or humid environments. Verify shaft diameter and mounting bolt compatibility with your existing drivetrain to ensure a seamless retrofit and minimal downtime.
The motor delivers IE3 Premium efficiency and uses Direct On Line starting for straightforward, fast startup. With a 1.15 service factor and NEMA Design B, it balances reliability with performance. The 230/460 V dual voltage rating also supports diverse global installations without extra transformers or components.
Best suited for conveyors, pumps, and fans in manufacturing and processing lines, the 7BCEM3555T also handles general machinery in packaging and material handling. Its robust TEFC enclosure and 143TC frame make it reliable in continuous duty, while energy efficiency reduces operating costs in high-cycle applications.
The motor carries CSA and UR recognition for safety and compliance, with RoHS compliance to limit hazardous substances. It’s aligned with NEMA design standards and offers IE3 Premium efficiency. These certifications support regulatory approvals, safer operation, and easier procurement in regulated industries.
Maintenance is simplified by regreasable bearings and a robust steel frame designed for long service life. IE3 efficiency lowers energy costs in continuous duty, while stock availability and 0 day lead times minimize downtime during replacements or upgrades, delivering faster project payback and improved overall equipment effectiveness.
