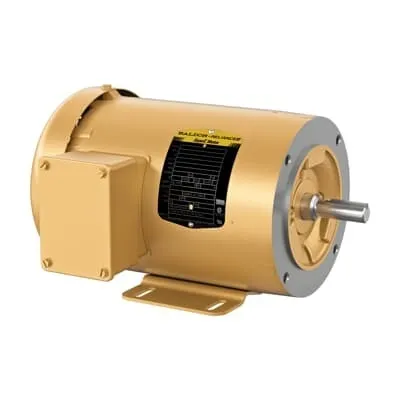

ABB 7BCEM3556 General Purpose Motor - IE3 Premium Efficiency
Part Number: 7BCEM3556
Quick Summary
General purpose motor 7BCEM3556 delivers reliable 1 HP, 230/460 V three‑phase performance for standard industrial drives such as conveyors, pumps, and fans. This design reduces downtime by offering robust construction and straightforward installation. The motor is supported by certifications and standards that enhance safety and compliance, including IE3 premium efficiency, CSA/UR certification, and NEMA design B considerations. With TEFC protection and a compact 56C frame, it integrates smoothly with existing drive systems while delivering energy savings and predictable performance. In short, this motor blends dependable output with easy maintenance, making it a practical choice for everyday plant needs and long‑term operating cost reductions.
Product Information
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
EGAUT001EXPU
Warranty Return
Product under warranty must be returned
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
GBINS001EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
SGIND004EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
USABB014EXPU
Warranty Return
Product under warranty must be returned
ABB Type Designation
1HP,1170RPM,3PH,60HZ,56C,3526M,TEFC
Ambient Temperature
40 °C
Bearing
6205 | Ball
Bearing NDE
6203 | Ball
Brake Present
No
Brand / Label
Baldor-Reliance
Catalog Number
CEM3556
Certification Agency
CSA | CSA EEV | UR
Country of Origin
United States (US)
Customs Tariff Number
85015100
Dimension Diagram
35LYA012: Dimension Sheet
Drive End Flange Type
C-Face
Duty Time
60 Min
ETIM 7
EC001851 - Electric motor
Efficiency Level
2015 Small Motor Standard | IE3 | Premium Efficiency (NEMA 12-12)
Electrical Data
Enclosure Type
TEFC
Frame Material
Steel
Frame Size
56
Frequency (f)
60 Hz
Global Commercial Alias
CEM3556
Gross Volume
3496.049 inÂł
Gross Weight
41 lb
IDEA Granular Category Code (IGCC)
1325 >> General purpose motor AC
Insulation Class
F
Invoice Description
1HP,1170RPM,3PH,60HZ,56C,3526M,TEFC,F1,N
Made To Order
No
Medium Description
General Purpose 3PH Enclosed, 1 HP, 1200 RPM, Frame Size 56C, C-Face Mounting, 3 Phase, TEFC Enclosure, 230/460 V, 60 Hz (CEM3556)
Minimum Order Quantity
1 piece
Motor Base Type
Foot Mounted
Motor Frame Size
56C
Motor Frame Suffix
C
Mounting Orientation
Horizontal
Mounting Position
F1
NEMA Design Code
B
Number of Phases
3
Number of Poles
6P
Number of Poles (High)
6
Number of Speeds
Single Speed
Order Multiple
1 piece
Output Power
1 Hp
Power Factor
64 %
Product Name
General Purpose 3PH Enclosed
Product Net Depth / Length
19.375 in
Product Net Height
13.123 in
Product Net Weight
41 lb
Product Net Width
13.75 in
Product Type
Undefined
Quote Only
No
Rated Current (In)
3.6 A | 1.8 A
Rated Efficiency
82.50 %
Rated Speed
1155 r/min
Replaced Part Number (OLD)
7B35A012G019G1
Selling Unit of Measure
piece
Service Factor
1.15
Shaft Diameter
0.63 in
Short Description
1 HP, 1200 RPM, Frame Size 56C, C-Face, 3 PH, TEFC, 230/460 V
Standards
NEMA
Starting of Motor
Direct On Line
Stocked At (Warehouses)
China | Alabama, United States | Alaska, United States
Synchronous Speed (vsyn)
1200 r/min
Type of Duty
Continuous
UNSPSC
26101112
Voltage Rating
230 V | 460 V
IE3 Premium Efficiency improves energy effectiveness, lowering operating costs across continuous duty applications such as conveyors and pumps. The business impact is measurable: reduced energy bills, cooler operation, and longer motor life due to optimized winding temperature; this is particularly valuable in facilities with high-load profiles. Application: ideal for general purpose 3PH loads where efficiency matters and downtime isn’t tolerated. TEFC enclosure protects the rotor from dust and moisture, increasing reliability in harsh environments and minimizing maintenance shocks; useful for dusty plants or outdoor installations. Application: material handling, packaging lines, and process equipment. The 56C frame with a 1 HP rating provides a compact footprint that fits standard motor mounts while preserving mounting flexibility for retrofit projects. Application: upgrade kits and line upgrades with minimal structural changes. Dual voltage capability 230/460 V at 60 Hz offers flexibility for mixed‑voltage facilities and phased upgrades, reducing wiring complexity and stocking needs. Application: multi‑plant deployments and new builds. Direct On Line starting simplifies commissioning and reduces equipment cost, while a C‑Face and foot‑mounted design facilitate quick alignment with gearboxes and conveyors. Application: fast installation in pump skids and fan assemblies. Certifications and design attributes including CSA, UR, and NEMA design B support compliance with regulatory and safety requirements across a broad set of industries. Application: regulated environments like food & beverage, packaging, and material handling.
Get a Quick Quote for a ABB 7BCEM3556
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 7BCEM3556?
Enquire Now
FAQs
The motor is designed for foot mounting with a C-face interface and horizontal mounting orientation (F1). Shaft diameter is 0.63 in, making alignment with standard gearboxes straightforward and reducing installation time.
It is a 3‑phase motor rated for 60 Hz with dual voltage capability of 230 V or 460 V. Rated currents are 3.6 A and 1.8 A corresponding to the two voltage configurations, with a rated speed of 1155 r/min.
Yes. It carries IE3 premium efficiency, insulation class F, a TEFC enclosure, and design B. Certifications include CSA, CSA EEV, and UR, aligning with safety and regulatory requirements in many markets.
Lead time is listed as 0 day, and stock is held at multiple warehouses (US, China, etc.). Availability varies by location, but the product is kept in active inventory to support quick fulfillment.
IE3 premium efficiency reduces energy consumption in continuous‑load applications, contributing to lower operating costs. The robust TEFC design and standard NEMA 56C footprint simplify maintenance and retrofits, boosting uptime and protecting long‑term return on investment.
