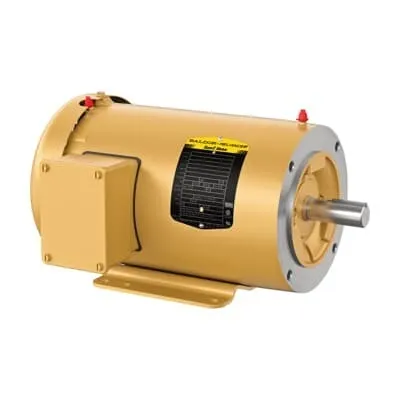

ABB 7BCEM3556T-G Shaft Ground Motor - CSA/UR Certified
Part Number: 7BCEM3556T-G
Quick Summary
ABB Shaft Ground Motor is a 1 HP, 3-phase drive ideal for conveyors, packaging lines, and general automation. Stock shortages and long lead times can disrupt uptime and maintenance schedules, but this model is designed with fast availability in mind. It carries critical certifications such as CSA, CSA EEV, and UR for safety and compliance, plus a NEMA design B and Premium Efficiency for reliability you can trust. With a TEFC enclosure, C-face mounting, and a 145TC frame operating at 230/460 V and 60 Hz, installation is straightforward and predictable. The result is reduced downtime, lower total cost of ownership, and smoother integration into existing automation architectures.
Product Information
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
EGAUT001EXPU
Warranty Return
Product under warranty must be returned
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
GBINS001EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
SGIND004EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
USABB014EXPU
Warranty Return
Product under warranty must be returned
ABB Type Designation
1HP,1170RPM,3PH,60HZ,145TC,3526M,TE
Ambient Temperature
40 °C
Bearing
6205 | Ball
Bearing NDE
6203 | Ball
Brake Present
No
Brand / Label
Baldor-Reliance
Catalog Number
CEM3556T-G
Certification Agency
CSA | CSA EEV | UR
Country of Origin
United States (US)
Customs Tariff Number
85015100
Dimension Diagram
35LYE2179: Dimension Sheet
Drive End Flange Type
C-Face
Duty Time
60 Min
ETIM 7
EC001851 - Electric motor
Efficiency Level
Premium Efficiency (NEMA 12-12)
Electrical Data
Enclosure Type
TEFC
Frame Material
Steel
Frame Size
145
Frequency (f)
60 Hz
Global Commercial Alias
CEM3556T-G
Gross Volume
3496.049 in³
Gross Weight
43 lb
IDEA Granular Category Code (IGCC)
1318 >> Heating and cooling system motor AC
Insulation Class
H
Invoice Description
1HP,1170RPM,3PH,60HZ,145TC,3526M,TEFC,F1
Made To Order
No
Medium Description
Shaft Ground, 1 HP, 1200 RPM, Frame Size 145Tc, C-Face Mounting, 3 Phase, TEFC Enclosure, 230/460 V, 60 Hz (CEM3556T-G)
Minimum Order Quantity
1 piece
Motor Base Type
Foot Mounted
Motor Frame Size
145TC
Motor Frame Suffix
TC
Mounting Orientation
Horizontal
Mounting Position
F1
NEMA Design Code
B
Number of Phases
3
Number of Poles
6P
Number of Poles (High)
6
Number of Speeds
Single Speed
Order Multiple
1 piece
Output Power
1 Hp
Power Factor
64 %
Product Name
Shaft Ground
Product Net Depth / Length
19.375 in
Product Net Height
13.123 in
Product Net Weight
43 lb
Product Net Width
13.75 in
Product Type
Undefined
Quote Only
No
Rated Current (In)
3.6 A | 1.8 A
Rated Efficiency
82.50 %
Rated Speed
1155 r/min
Replaced Part Number (OLD)
7B35E2179G019
Selling Unit of Measure
piece
Service Factor
1.15
Shaft Diameter
0.88 in
Shaft Grounding
Shaft Grounding
Short Description
1 HP, 1200 RPM, Frame Size 145Tc, C-Face, 3 PH, TEFC, 230/460 V
Standards
NEMA
Starting of Motor
Direct On Line
Stocked At (Warehouses)
China | Alabama, United States | Alaska, United States
Synchronous Speed (vsyn)
1200 r/min
Type of Duty
Continuous
UNSPSC
26101105
Voltage Rating
230 V | 460 V
Feature: TEFC enclosure and shaft grounding design protect windings from dust and moisture, improving motor longevity. Business Impact: Fewer unscheduled maintenance events and extended service life in dirty or humid environments. Application: Conveyor lines and packaging machinery in industrial facilities. Long-tail keywords: TEFC motor, shaft grounding, 1 HP motor, industrial motor reliability. Feature: Dual voltage operation 230/460 V simplifies electrical routing and inventory, reducing wiring complexity and spare parts variety. Business Impact: Lower installation costs and faster commissioning. Application: Powering multi-voltage automation cells across assembly lines. Long-tail keywords: dual voltage motor, 230/460 V motor, VFD-friendly motor. Feature: 145TC frame with C-Face mounting and 1 HP single-speed design delivers compatibility with standard mechanical footprints and quick replacement. Business Impact: Minimized downtime during maintenance and easier retrofits. Application: Gear reducers and direct-drive conveyors. Long-tail keywords: 145TC frame, C-Face flange, foot-mounted motor. Feature: Premium Efficiency and favorable Power Factor (82.5% efficiency, PF ~0.64) reduce energy consumption and operating costs over the motor’s life. Business Impact: Lower energy bills and better overall process efficiency. Application: Continuous-duty automation loops and high-cycle manufacturing lines. Long-tail keywords: premium efficiency motor, high PF, energy savings. Feature: Robust bearings (6205/6203 ball bearings) and Insulation Class H support long service life under continuous operation. Business Impact: Lower maintenance frequency and longer mean time between failures. Application: Heavy use in material handling and process equipment. Long-tail keywords: durable bearings, insulation class H. Feature: High stock availability and 0-day lead time across multiple warehouses enable rapid replenishment. Business Impact: Increased uptime, faster project delivery, and lower safety stock. Application: Critical infrastructure where uptime is essential. Long-tail keywords: stocked at warehouses, fast delivery motor. Feature: NEMA Design Code B and direct-on-line starting provide familiarity and straightforward integration with standard drives. Business Impact: Simplified control strategies and reduced commissioning risk. Application: Industrial automation and plant-wide motor control schemes. Long-tail keywords: NEMA B design, direct-on-line start, 3-phase motor.
Get a Quick Quote for a ABB 7BCEM3556T-G
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 7BCEM3556T-G?
Enquire Now
FAQs
This motor uses a C-face drive-end flange, 145TC frame, foot mounting, and horizontal orientation with a 230/460 V supply. It is designed for direct-on-line starting and can be integrated with standard gear reducers and conveyors, with stock readily available for faster deployment.
Rated at 1 HP with a nominal speed of 1155 r/min (synchronous 1200 r/min), it features a 60 Hz supply, dual voltage 230/460 V, PF around 0.64, efficiency at 82.5%, 3-phase operation, and a 145TC frame with TEFC enclosure.
Yes. The TEFC enclosure, Insulation Class H, ambient rating of 40 °C, and robust bearings (6205/6203) support continuous operation in demanding environments typical of conveyors and manufacturing lines.
The motor carries CSA, CSA EEV, and UR certifications, along with NEMA Design Code B and Premium Efficiency ratings, ensuring safety, reliability, and compatibility with standard industrial controls.
High reliability, fast stock access from multiple warehouses, and straightforward installation minimize downtime. Standard bearings and DOL starting reduce maintenance needs, delivering lower total cost of ownership over the motor’s service life.
