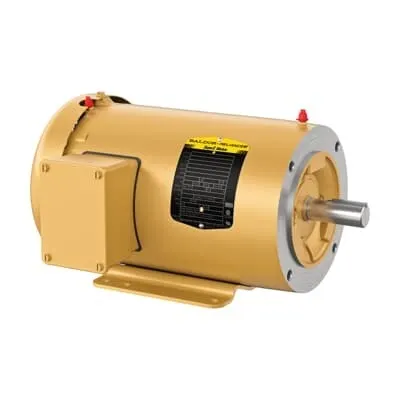

ABB 7BCEM3558T-BG Shaft Ground - TEFC 2HP 60Hz
Part Number: 7BCEM3558T-BG
Quick Summary
Shaft Ground 2 HP motor provides a reliable, compact solution for general purpose drives in conveyors, pumps, and fans. Engineers face grounding faults, downtime, and retrofit challenges when upgrading legacy equipment, often with mismatched voltages or incompatible mounting. This ABB motor integrates robust NEMA design, CSA EEV, and UR safety certifications to help meet diverse industrial requirements. With a TEFC enclosure and 230/460 V, 60 Hz three-phase operation, it fits standard US plant electrical systems while delivering improved efficiency and service life. The combination of 145TC frame compatibility, horizontal mounting, and a 1.15 service factor translates to lower installation costs and smoother integration into existing lineups, enabling OEMs and maintenance teams to plan quickly and scale operations.
Product Information
Extended Description
7BCEM3558T-BG ABB: Shaft Ground 2 Hp 230 V (CEM3558T-BG)
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
EGAUT001EXPU
Warranty Return
Product under warranty must be returned
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
GBINS001EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
SGIND004EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
USABB014EXPU
Warranty Return
Product under warranty must be returned
ABB Type Designation
2HP,1760RPM,3PH,60HZ,145TC,3528M,TE
Ambient Temperature
40 °C
Bearing
6205 | Ball
Bearing NDE
6203 | Ball
Brake Present
No
Brand / Label
Baldor-Reliance
Catalog Number
CEM3558T-BG
Certification Agency
CSA | CSA EEV | UR
Country of Origin
United States (US)
Customs Tariff Number
85015220
Design
B
Dimension Diagram
35LYE2215: Dimension Sheet
Drive End Flange Type
C-Face
Duty Time
60 Min
ETIM 7
EC001851 - Electric motor
Efficiency Level
Premium Efficiency (NEMA 12-12)
Electrical Data
Enclosure Type
TEFC
Frame Material
Steel
Frame Size
145
Frequency (f)
60 Hz
Global Commercial Alias
CEM3558T-BG
Gross Volume
3496.049 in³
Gross Weight
45 lb
Horsepower Rating UL/CSA
2.000 Hp
IDEA Granular Category Code (IGCC)
1318 >> Heating and cooling system motor AC
Insulation Class
H
Invoice Description
2HP,1760RPM,3PH,60HZ,145TC,3528M,TEFC,F1
Made To Order
No
Medium Description
Shaft Ground, 2 HP, 1800 RPM, Frame Size 145Tc, C-Face Mounting, 3 Phase, TEFC Enclosure, 230/460 V, 60 Hz (CEM3558T-BG)
Minimum Order Quantity
1 piece
Motor Base Type
Foot Mounted
Motor Frame Size
145TC
Motor Frame Suffix
TC
Mounting Orientation
Horizontal
Mounting Position
F1
NEMA Design Code
B
Number of Phases
3
Number of Poles
4P
Number of Poles (High)
4
Number of Speeds
Single Speed
Order Multiple
1 piece
Output Power
2 Hp
Power Factor
77 %
Product Name
Shaft Ground
Product Net Depth / Length
19.375 in
Product Net Height
13.123 in
Product Net Weight
45 lb
Product Net Width
13.75 in
Product Type
Undefined
Quote Only
No
Rated Current (In)
5.6 A | 2.8 A
Rated Efficiency
86.50 %
Rated Speed
1760 r/min
Selling Unit of Measure
piece
Service Factor
1.15
Service Factor Percentage
1.15 %
Shaft Diameter
0.88 in
Shaft Grounding
Shaft Grounding
Short Description
2 HP, 1800 RPM, Frame Size 145Tc, C-Face, 3 PH, TEFC, 230/460 V
Standards
NEMA
Starting of Motor
Direct On Line
Stocked At (Warehouses)
China | Alabama, United States | Alaska, United States
Synchronous Speed (vsyn)
1800 r/min
Type of Duty
Continuous
UNSPSC
26101105
Voltage Rating
230 V | 460 V
Feature: Shaft Grounding with 2 HP rating provides a direct grounding path, reducing stray currents and electrical noise. Business Impact: enhances operator safety, lowers unexpected trips, and extends bearing life. Application: ideal for conveyors, pumps, and fans in demanding manufacturing environments. Feature: TEFC enclosure rated for industrial environments with 60 Hz operation. Business Impact: protects internal components from dust, moisture, and contaminants, extending service life and reducing maintenance. Application: suitable for OEM machinery and retrofit projects in manufacturing plants. Feature: Dual voltage 230/460 V, 3-phase, 1760 rpm (frame 145TC). Business Impact: simplifies panel design and stocking, reduces spare parts, and supports flexible drive configurations. Application: general-purpose motor drives like fans, pumps, and blowers. Feature: NEMA Design B, insulation class H, service factor 1.15, and a 60-minute duty rating. Business Impact: predictable performance under peak loads, extended insulation life, and improved startup resilience. Application: continuous duty across process lines and packaging equipment. Feature: Foot-mounted design with horizontal mounting, C-Face drive end flange, and 145TC frame. Business Impact: simple installation, quick retrofits, and compatibility with existing drive systems. Application: new builds and upgrades across conveyors and processing lines.
Get a Quick Quote for a ABB 7BCEM3558T-BG
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 7BCEM3558T-BG?
Enquire Now
FAQs
The motor is foot-mounted with horizontal orientation and a C-Face drive end flange, designed for compatibility with 145TC frame size. This makes retrofits and new installations straightforward, as it aligns with standard mounting pads and gearboxes. The 145TC footprint supports common industry drive systems while simplifying alignment during installation.
The 7BCEM3558T-BG operates on 230/460 V, three-phase, at 60 Hz, delivering 1760 r/min (frame 145TC) and a 2 HP output. The motor is designed for direct connection to typical US distribution panels, reducing the need for voltage conversions while supporting reliable operation in standard plant environments.
This motor carries NEMA-based design with CSA EEV and UR safety certifications. Additionally, it aligns with NEMA standards for enclosure and performance, ensuring reliability in industrial environments and facilitating compliance with regional electrical safety requirements in North America.
Shaft Ground motors excel in conveyors, pumps, and fans within manufacturing and material handling. The grounding feature minimizes stray currents and electrical noise, improving drive stability and bearing life in environments with variable loads, while TEFC protection supports duty in dusty or oily atmospheres.
The product is stocked for immediate availability across multiple warehouses, with a warranty policy indicating that warranty returns are managed per company terms. Lead times are minimal, and stock locations (e.g., US and international warehouses) support faster delivery. Regular maintenance should follow standard 145TC, TEFC motor guidelines to maximize life and uptime.
