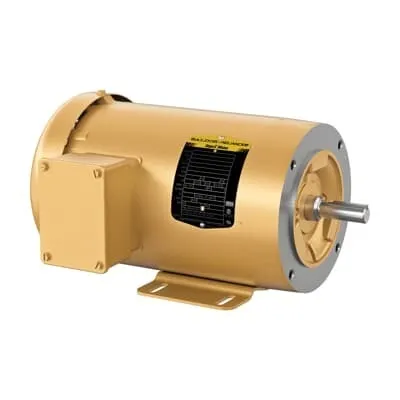

ABB 7BCEM3559 General Purpose Motor - IE3 Premium Efficiency
Part Number: 7BCEM3559
Quick Summary
ABB 7BCEM3559 General Purpose Motor is a robust three-phase motor designed for general-purpose industrial equipment and machinery. It delivers reliable 3 HP performance in a compact 56C frame with a TEFC enclosure, making it suitable for conveyors, pumps, and fans. Engineers often struggle with sourcing motors that meet precise voltage, mounting, and efficiency requirements without custom engineering. This model aligns with IE3 Premium Efficiency, NEMA design B, and CSA/UR listed certifications, supporting regulatory compliance and long-term operating cost reductions. By choosing a rugged, ready-to-install motor, maintenance planning becomes simpler, spare parts are readily available, and retrofit projects can proceed with confidence. The unit's 230/460 V single motor option provides installation flexibility across facilities.
Product Information
Extended Description
7BCEM3559 ABB: General Purpose Motor 3 Hp 230 V (CEM3559)
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
EGAUT001EXPU
Warranty Return
Product under warranty must be returned
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
GBINS001EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
SGIND004EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
USABB014EXPU
Warranty Return
Product under warranty must be returned
ABB Type Designation
3HP,3450RPM,3PH,60HZ,56C,3532M,TEFC
Ambient Temperature
40 °C
Bearing
6205 | Ball
Bearing NDE
6203 | Ball
Brake Present
No
Brand / Label
Baldor-Reliance
Catalog Number
CEM3559
Certification Agency
CSA | CSA EEV | UR
Country of Origin
United States (US)
Customs Tariff Number
85015220
Dimension Diagram
35LYT942: Dimension Sheet
Drive End Flange Type
C-Face
Duty Time
60 Min
ETIM 7
EC001851 - Electric motor
Efficiency Level
2015 Small Motor Standard | IE3 | Premium Efficiency (NEMA 12-12)
Electrical Data
Enclosure Type
TEFC
Frame Material
Steel
Frame Size
56
Frequency (f)
60 Hz
Global Commercial Alias
CEM3559
Gross Volume
3496.049 in³
Gross Weight
50 lb
IDEA Granular Category Code (IGCC)
1325 >> General purpose motor AC
Insulation Class
F
Invoice Description
3HP,3450RPM,3PH,60HZ,56C,3532M,TEFC,F1,N
Made To Order
No
Medium Description
General Purpose 3PH Enclosed, 3 HP, 3600 RPM, Frame Size 56C, C-Face Mounting, 3 Phase, TEFC Enclosure, 230/460 V, 60 Hz (CEM3559)
Minimum Order Quantity
1 piece
Motor Base Type
Foot Mounted
Motor Frame Size
56C
Motor Frame Suffix
C
Mounting Orientation
Horizontal
Mounting Position
F1
NEMA Design Code
B
Number of Phases
3
Number of Poles
2P
Number of Poles (High)
2
Number of Speeds
Single Speed
Order Multiple
1 piece
Output Power
3 Hp
Power Factor
92 %
Product Name
General Purpose 3PH Enclosed
Product Net Depth / Length
19.375 in
Product Net Height
13.123 in
Product Net Weight
50 lb
Product Net Width
13.75 in
Product Type
Undefined
Quote Only
No
Rated Current (In)
7.2 A | 3.6 A
Rated Efficiency
86.50 %
Rated Speed
3450 r/min
Replaced Product ID (OLD)
7B35T942Q060G1
Selling Unit of Measure
piece
Service Factor
1.15
Shaft Diameter
0.63 in
Short Description
3 HP, 3600 RPM, Frame Size 56C, C-Face, 3 PH, TEFC, 230/460 V
Standards
NEMA
Starting of Motor
Direct On Line
Stocked At (Warehouses)
China | Alabama, United States | Alaska, United States
Synchronous Speed (vsyn)
3600 r/min
Type of Duty
Continuous
UNSPSC
26101112
Voltage Rating
230 V | 460 V
Feature: 3 HP, 2-pole design delivering 3450 r/min; Business Impact: aligns with standard load profiles for common industrial drives, reducing oversizing and energy waste; Application: conveyors, pumps, and fans in manufacturing lines. Feature: TEFC enclosure with a 56C frame; Business Impact: protects rotor and bearings from dust, moisture, and contamination, lowering maintenance downtime; Application: harsh factory floors and outdoor equipment. Feature: Dual voltage capability 230/460 V; Business Impact: simplifies procurement and retrofits, enabling broader compatibility with existing electrical systems; Application: upgrade projects and new installations in mixed-voltage facilities. Feature: IE3 Premium Efficiency; Business Impact: lowers energy consumption and operating costs over the motor life; Application: continuous process equipment and high-duty cycles. Feature: Continuous duty rating with robust components (6205 bearings, F insulation); Business Impact: supports dependable uptime in automated lines; Application: HVAC, pumps, and material handling. Feature: Stocked at multiple warehouses; Business Impact: 0 day lead time improves project schedules and reduces downtime; Application: emergency replacements and just-in-time maintenance.
Get a Quick Quote for a ABB 7BCEM3559
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 7BCEM3559?
Enquire Now
FAQs
The 7BCEM3559 uses a 56C frame and is designed for foot-mounted installation with a horizontal mounting orientation (F1). The drive-end flange is a C-face type, which supports straightforward mounting to compatible bases or Rigid Couplings. Verify your existing motor mount pattern and shaft dimensions (0.63 in shaft) to ensure a clean retrofit with minimal alignment effort.
This is a three-phase motor rated for 230 V or 460 V at 60 Hz, configured for a 3-pole, 2-pole design with a synchronous speed of 3600 r/min and a practical running speed of about 3450 r/min. The rated current is approximately 7.2 A at the lower voltage and 3.6 A at the higher voltage, depending on load, enabling flexible power sourcing and retrofits.
Yes. The motor is rated for continuous duty, with a duty time specification of 60 minutes and a robust TEFC enclosure. With 56C frame and steel construction, it provides reliable performance in continuous manufacturing environments, pumps, and fans while maintaining efficiency and minimizing maintenance interruptions over extended run times.
The 7BCEM3559 is aligned with IE3 Premium Efficiency, demonstrates NEMA design B characteristics, and carries CSA/UR listings for compliance in North American and international installations. Insulation class is F, and the motor is designed to meet general regulatory expectations for industrial motors used in varied environments.
Lead time is listed as 0 day, and the motor is stocked at multiple warehouses (including US locations and others), ensuring rapid fulfillment. The product is actively sold and ready for rapid deployment in replacement, retrofit, or new-installation projects.
