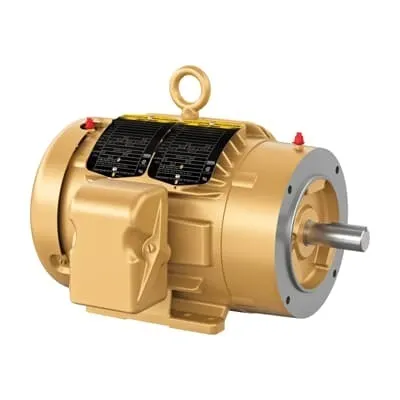

ABB 7BCEM3583T-5 General Purpose Motor - TEFC IE3 575V
Part Number: 7BCEM3583T-5
Quick Summary
General Purpose Motor from ABB delivers reliable 3-phase power for continuous duty in machine tools, conveyors, and other light industrial equipment. Engineers often struggle with part availability, long lead times, and energy-efficient compliance across global sites. It meets IE3 Premium Efficiency, CSA, UR, and CSA EEV certifications, alongside a NEMA design designation, providing confidence in both performance and regulatory adherence. With a TEFC enclosure, 575 V rating, and a 143TC frame, this motor integrates smoothly into standard footprints, reducing installation complexity. By selecting this motor, buyers gain lower operating costs, easier maintenance, and broader stocked availability across multiple warehouses, supporting faster project delivery and predictable maintenance planning.
Product Information
Extended Description
7BCEM3583T-5 ABB: General Purpose Motor 1.5 Hp 575 V (CEM3583T-5)
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
EGAUT001EXPU
Warranty Return
Product under warranty must be returned
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
GBINS001EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
SGIND004EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
USABB014EXPU
Warranty Return
Product under warranty must be returned
ABB Type Designation
1.5HP,3500RPM,3PH,60HZ,143TC,0520M,
Altitude
1000 m
Ambient Temperature
40 °C
Bearing
6205 | Ball
Bearing NDE
6203 | Ball
Brake Present
No
Brand / Label
Baldor-Reliance
Catalog Number
CEM3583T-5
Certification Agency
CSA | CSA EEV | UR
Country of Origin
United States (US)
Customs Tariff Number
85015220
Design
B
Dimension Diagram
05LYC052: Dimension Sheet
Direction of Rotation
Both sides
Drive End Flange Type
C-Face
Duty Time
60 Min
ETIM 7
EC001851 - Electric motor
Efficiency Level
2015 Small Motor Standard | IE3 | Premium Efficiency (NEMA 12-12)
Electrical Data
Enclosure Type
TEFC
Frame Material
Iron
Frame Size
143
Frequency (f)
60 Hz
Global Commercial Alias
CEM3583T-5
Gross Volume
3496.049 inÂł
Gross Weight
54 lb
Horsepower Rating UL/CSA
1.500 Hp
IC Class
TEFC
IDEA Granular Category Code (IGCC)
1325 >> General purpose motor AC
IE Class Data (50 Hz)
IE Class NA
IE Class Data (60 Hz)
IE Class NA
IM Class
F1
Insulation Class
F
Invoice Description
1.5HP,3500RPM,3PH,60HZ,143TC,0520M,TEFC
Lubrication
Regreasable
Made To Order
No
Medium Description
General Purpose 3PH Enclosed, 1.5 HP, 3600 RPM, Frame Size 143Tc, C-Face Mounting, 3 Phase, TEFC Enclosure, 575 V, 60 Hz (CEM3583T-5
Minimum Order Quantity
1 piece
Motor Base Type
Foot Mounted
Motor Frame Size
143TC
Motor Frame Suffix
TC
Mounting Orientation
Horizontal
Mounting Position
F1
NEMA Design Code
B
Number of Phases
3
Number of Poles
2P
Number of Poles (High)
2
Number of Speeds
Single Speed
Order Multiple
1 piece
Output Power
1.5 Hp
Power Factor
85 %
Product Name
General Purpose 3PH Enclosed
Product Net Depth / Length
19.375 in
Product Net Height
13.123 in
Product Net Weight
54 lb
Product Net Width
13.75 in
Product Type
Undefined
Quote Only
No
Rated Current (In)
1.5 A
Rated Efficiency
84 %
Rated Speed
3500 r/min
Selling Unit of Measure
piece
Service Factor
1.15
Service Factor Percentage
1.15 %
Shaft Diameter
0.88 in
Short Description
1.5 HP, 3600 RPM, Frame Size 143Tc, C-Face, 3 PH, TEFC, 575 V
Standards
NEMA
Starting of Motor
Direct On Line
Stocked At (Warehouses)
China | Alabama, United States | Alaska, United States
Synchronous Speed (vsyn)
3600 r/min
Temperature Class Default
--
Two Speed Motor
No
Type of Duty
Continuous
UNSPSC
26101112
Voltage Code
L
Voltage Rating
575 V
IE3 Premium Efficiency delivers significantly lower energy consumption in continuous duty applications, directly reducing utility bills for conveyors and pumps. In practice, that translates to measurable annual savings and easier regulatory compliance for energy-use reporting. Applied to machines with long run times, it pays back initial cost more quickly and improves sustainability metrics. The TEFC enclosure protects internal windings from dust and moisture, extending service life in shop floors and outdoor installations, while the 143TC frame ensures compatibility with common drive components, simplifying replacements and retrofits. The motor runs on 575 V three-phase power at 60 Hz, delivering stable torque and predictable performance for typical U.S. and international plant layouts, and enabling direct-on-line starting with manageable inrush profiles. With footprint-conscious mounting—foot mounted, C-face drive end flange, and F1 orientation—the unit integrates into existing baselines with minimal modification. Regreasable bearings (6205 and 6203) and a 60-minute duty rating support reliable operation in demanding environments, while altitude up to 1000 m and ambient temperature up to 40 C expand applicability in manufacturing floors and remote facilities. Stocked availability across multiple warehouses and a 0-day lead time reduce project risk, while the 1.5 HP rating and 143TC frame offer a familiar replacement path, lowering maintenance costs and simplifying spares planning. This combination helps procurement optimize total cost of ownership without sacrificing performance or compliance.
Get a Quick Quote for a ABB 7BCEM3583T-5
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 7BCEM3583T-5?
Enquire Now
FAQs
The 7BCEM3583T-5 is designed for a 143TC frame and TEFC enclosure, with a C-Face drive end flange and a foot-mounted mounting option, ensuring straightforward retrofit and alignment with common drive components.
It runs on 575 V three-phase power at 60 Hz, rated for 1.5 HP with a rated current of 1.5 A. It features a 3500 r/min rated speed (synchronous 3600 r/min) and a service factor of 1.15.
Yes. It carries IE3 Premium Efficiency along with CSA, UR, and CSA EEV certifications, and is aligned with NEMA design standards for reliable regional compliance and cross-border installations.
Direct On Line starting is suitable for this motor, given its 1.15 service factor and 60 Hz electrical rating. Ensure your drive equipment and electrical distribution are sized for the inrush and match the 575 V supply.
The motor is stocked across multiple warehouses (US, GB, SG, China) with 0 day lead time in many cases; warranty is standard with a return policy for warranted products, simplifying procurement and support timelines.
