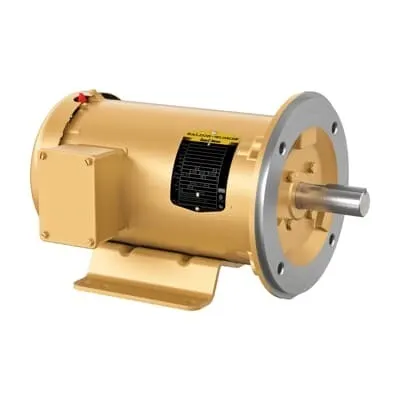

ABB 7BCEM3610T-5 General Purpose Motor - 575 V, IE3 Premium
Part Number: 7BCEM3610T-5
Quick Summary
ABB 7BCEM3610T-5 General Purpose Motor is a 3 HP, 575 V AC motor designed for general industrial drives. This solution helps engineers reduce procurement complexity and lead times by offering a standard frame and mounting configuration. It carries CSA, CSA EEV, and UR recognition with RoHS compliance, aligning with NEMA design B and IE3 premium efficiency expectations. With a 182TC frame, C-face mounting, and TEFC enclosure, it streamlines installation and service while delivering reliable performance in conveyors, pumps, and machine tools. For manufacturers seeking energy efficiency, predictable maintenance, and a straightforward BOM, this motor provides tangible business value.
Product Information
Extended Description
7BCEM3610T-5 ABB: General Purpose Motor 3 Hp 575 V (CEM3610T-5)
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
EGAUT001EXPU
Warranty Return
Product under warranty must be returned
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
GBINS001EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
SGIND004EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
USABB014EXPU
Warranty Return
Product under warranty must be returned
ABB Type Designation
3HP,3450RPM,3PH,60HZ,182TC,3532M,TE
Altitude
1000 m
Ambient Temperature
40 °C
Bearing
6206 | Ball
Bearing NDE
6203 | Ball
Brake Present
No
Brand / Label
Baldor-Reliance
Catalog Number
CEM3610T-5
Certification Agency
CSA | CSA EEV | UR
Country of Origin
United States (US)
Customs Tariff Number
85015220
Design
B
Dimension Diagram
35LYL113: Dimension Sheet
Direction of Rotation
Both sides
Drive End Flange Type
C-Face
Duty Time
60 Min
ETIM 7
EC001851 - Electric motor
Efficiency Level
2015 Small Motor Standard | IE3 | Premium Efficiency (NEMA 12-12)
Electrical Data
Enclosure Type
TEFC
Frame Material
Steel
Frame Size
182
Frequency (f)
60 Hz
Global Commercial Alias
CEM3610T-5
Gross Volume
3496.049 in³
Gross Weight
58 lb
Horsepower Rating UL/CSA
3.000 Hp
IC Class
TEFC
IDEA Granular Category Code (IGCC)
1325 >> General purpose motor AC
IE Class Data (50 Hz)
IE Class NA
IE Class Data (60 Hz)
IE Class NA
IM Class
F1
Insulation Class
F
Invoice Description
3HP,3450RPM,3PH,60HZ,182TC,3532M,TEFC,F1
Lubrication
Regreasable
Made To Order
No
Medium Description
General Purpose 3PH Enclosed, 3 HP, 3600 RPM, Frame Size 182Tc, C-Face Mounting, 3 Phase, TEFC Enclosure, 575 V, 60 Hz (CEM3610T-5)
Minimum Order Quantity
1 piece
Motor Base Type
Foot Mounted
Motor Frame Size
182TC
Motor Frame Suffix
TC
Mounting Orientation
Horizontal
Mounting Position
F1
NEMA Design Code
B
Number of Phases
3
Number of Poles
2P
Number of Poles (High)
2
Number of Speeds
Single Speed
Order Multiple
1 piece
Output Power
3 Hp
Power Factor
92 %
Product Name
General Purpose 3PH Enclosed
Product Net Depth / Length
19.375 in
Product Net Height
13.123 in
Product Net Weight
58 lb
Product Net Width
13.75 in
Product Type
Undefined
Quote Only
No
Rated Current (In)
2.9 A
Rated Efficiency
86.50 %
Rated Speed
3450 r/min
Replaced Product ID (OLD)
7B35L113M839G1
RoHS Information
RoHS Compliant
Selling Unit of Measure
piece
Service Factor
1.15
Service Factor Percentage
1.15 %
Shaft Diameter
1.13 in
Short Description
3 HP, 3600 RPM, Frame Size 182Tc, C-Face, 3 PH, TEFC, 575 V
Standards
NEMA
Starting of Motor
Direct On Line
Stocked At (Warehouses)
China | Alabama, United States | Alaska, United States
Synchronous Speed (vsyn)
3600 r/min
Temperature Class Default
--
Two Speed Motor
No
Type of Duty
Continuous
UNSPSC
26101112
Voltage Code
L
Voltage Rating
575 V
Feature → Business Impact → Application: The 3 HP, 575 V, 60 Hz three-phase design delivers robust torque for general-purpose drives while maintaining energy efficiency, reducing operating costs and thermal load in continuous-duty environments such as material handling and processing lines. Application teams see lower energy bills and improved productivity when integrated with existing VFDs or direct-on-line starters. Feature → Business Impact → Application: TEFC enclosure protects windings and bearings from dust and moisture, extending motor life in stepped environments and minimizing unplanned downtime in automotive assembly, packaging, and food processing plants. Feature → Business Impact → Application: The 182TC frame with C-face mounting and foot-mounted configuration enables fast, drop-in replacements and straightforward mechanical alignment, reducing install time and commissioning risk on legacy lines. Feature → Business Impact → Application: IE3 Premium efficiency and RoHS compliance help meet sustainability targets and regulatory requirements while maintaining high reliability in demanding operations such as conveyors and fans. Feature → Business Impact → Application: CSA, CSA EEV, and UR certified design provides risk reduction for electrical compliance in North America and international projects, facilitating multi-site deployments and warranty support, especially where strict supplier eligibility matters. Feature → Business Impact → Application: The motor’s rated speed of 3450 r/min and synchronous speed of 3600 r/min supports consistent drive performance in single-speed applications, ensuring predictable process control and reduced downtime during speed transitions. Feature → Business Impact → Application: Direct-on-line starting capability and 60-minute duty cycle specification offer dependable startup and sustained operation in continuous-duty environments like bottling lines, mills, and HVAC systems.
Get a Quick Quote for a ABB 7BCEM3610T-5
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 7BCEM3610T-5?
Enquire Now
FAQs
The 7BCEM3610T-5 uses a standard 182TC frame with C-face mounting and foot mounting options, allowing straightforward replacements in legacy equipment and new builds. It is designed for direct compatibility with common fixed or variable-speed drive systems and aligns with existing mounting holes and shaft dimensions to minimize retrofits and rework.
This motor delivers 3 HP at 575 V with 60 Hz operation and a rated speed of 3450 r/min, plus a synchronous speed of 3600 r/min. With IE3 premium efficiency and an insulated F-class winding, you gain lower running losses, reduced energy costs, and improved thermal stability, extending service life under continuous-duty conditions.
Yes. Its 3 HP output, TEFC enclosure, and robust frame design suit general-purpose drives on conveyors and pumps. The motor’s NA/UR/CSA certifications and RoHS compliance support compliant integration into regulated environments, while direct-on-line start capability supports simple, reliable startup in line with common conveyor and pump duty cycles.
The motor is certified with CSA, CSA EEV, and UR recognition, providing North American electrical safety compliance. It also adheres to RoHS requirements and NEMA design standards, ensuring compatibility with standard industrial controls and reducing eligibility risk for global OEM projects and multi-site deployments.
The IE3 premium efficiency rating lowers energy consumption in continuous operation, translating to noticeable annual savings on electricity and reduced thermal stress. The TEFC enclosure and robust bearings support longer maintenance intervals and fewer unplanned outages, delivering a favorable total cost of ownership in manufacturing lines and distribution centers.
