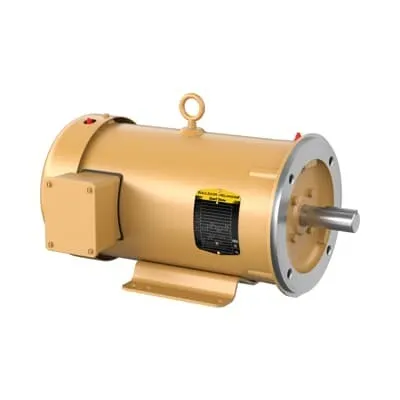

ABB 7BCEM3614T-G Shaft Ground Motor - Premium Efficiency
Part Number: 7BCEM3614T-G
Quick Summary
ABB 7BCEM3614T-G shaft ground motor provides reliable 2 HP power for 3-phase equipment in industrial settings. Maintenance teams often struggle with grounding reliability and unplanned downtime; shaft grounding helps manage fault paths and reduces wear. Certified for CSA EEV and UR, plus NEMA-compliant design and Premium Efficiency, it meets stringent regulatory and energy targets. With a rugged TEFC enclosure, 184TC frame, and 3‑phase operation at 60 Hz, it minimizes lifecycle costs while maximizing uptime for conveyors, pumps, and process equipment.
Product Information
Extended Description
7BCEM3614T-G ABB: Shaft Ground 2 Hp 230 V (CEM3614T-G)
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
EGAUT001EXPU
Warranty Return
Product under warranty must be returned
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
GBINS001EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
SGIND004EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
USABB014EXPU
Warranty Return
Product under warranty must be returned
ABB Type Designation
2HP,1175RPM,3PH,60HZ,184TC,TEFC,F1
Ambient Temperature
40 °C
Bearing
6206 | Ball
Bearing NDE
6205 | Ball
Brake Present
No
Brand / Label
Baldor-Reliance
Catalog Number
CEM3614T-G
Certification Agency
CSA | CSA EEV | UR
Country of Origin
United States (US)
Customs Tariff Number
85015220
Dimension Diagram
36LYN147: Dimension Sheet
Drive End Flange Type
C-Face
Duty Time
60 Min
ETIM 7
EC001851 - Electric motor
Efficiency Level
Premium Efficiency (NEMA 12-12)
Electrical Data
Enclosure Type
TEFC
Frame Material
Steel
Frame Size
184
Frequency (f)
60 Hz
Global Commercial Alias
CEM3614T-G
Gross Volume
7192.91 in³
Gross Weight
94 lb
IDEA Granular Category Code (IGCC)
1318 >> Heating and cooling system motor AC
Insulation Class
H
Invoice Description
2HP,1175RPM,3PH,60HZ,184TC,TEFC,F1
Made To Order
No
Medium Description
Shaft Ground, 2 HP, 1200 RPM, Frame Size 184Tc, C-Face Mounting, 3 Phase, TEFC Enclosure, 230/460 V, 60 Hz (CEM3614T-G)
Minimum Order Quantity
1 piece
Motor Base Type
Foot Mounted
Motor Frame Size
184TC
Motor Frame Suffix
TC
Mounting Orientation
Horizontal
Mounting Position
F1
NEMA Design Code
B
Number of Phases
3
Number of Poles
6P
Number of Poles (High)
6
Number of Speeds
Single Speed
Order Multiple
1 piece
Output Power
2 Hp
Power Factor
66 %
Product Name
Shaft Ground
Product Net Depth / Length
26.625 in
Product Net Height
16.25 in
Product Net Weight
94 lb
Product Net Width
16.625 in
Product Type
Undefined
Quote Only
No
Rated Current (In)
6.4 A | 3.2 A
Rated Efficiency
88.50 %
Rated Speed
1175 r/min
Selling Unit of Measure
piece
Service Factor
1.15
Shaft Diameter
1.13 in
Shaft Grounding
Shaft Grounding
Short Description
2 HP, 1200 RPM, Frame Size 184Tc, C-Face, 3 PH, TEFC, 230/460 V
Standards
NEMA
Starting of Motor
Direct On Line
Stocked At (Warehouses)
China | Alabama, United States | Alaska, United States
Synchronous Speed (vsyn)
1200 r/min
Type of Duty
Continuous
UNSPSC
26101105
Voltage Rating
230 V | 460 V
Shaft grounding through the shaft-ground configuration provides a defined electrical path to earth, reducing stray fault currents and protecting drive electronics. This improves reliability and lowers maintenance costs by simplifying fault tracing and stabilizing operation during startup and transient events. Application: conveyors, pumps, and process machinery in manufacturing environments benefit from safer grounding and reduced downtime due to intermittent ground faults. 2 HP output at 1175 rpm with a 60 Hz, 3‑phase supply delivers a compact, energy-efficient drive for common line speeds. The combination supports direct-on-line starting and consistent torque for belt conveyors and pump drives, helping to avoid oversized drives and related cost penalties. TEFC enclosure plus a 184TC frame offers robust protection in dirty or damp environments, reducing ingress and deterring corrosion over the motor’s life. Foot-mounted and C-face mounting options provide flexible installation paths, allowing quick alignment with gearboxes, couplings, or belts in tight spaces. Premium Efficiency designation paired with a 1.15 service factor gives both energy savings and overload margin for continuous duty. This helps facilities meet energy-use targets while delivering dependable performance on continuous-load conveyors and fans with occasional surges. Voltage options of 230 V or 460 V across 60 Hz, three-phase operation simplify electrical wiring and compatibility with existing plant power distribution. The 1.13 in shaft diameter and standard 184TC/TC suffix support reliable coupling and mounting with minimal resourcing. Design aligns with NEMA B design code and a 60-minute duty rating, ensuring predictable performance under typical industrial cycles. The motor is designed for straightforward field service, with stock kept in major warehouses to shorten lead times and support just-in-time manufacturing.
Get a Quick Quote for a ABB 7BCEM3614T-G
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 7BCEM3614T-G?
Enquire Now
FAQs
Shaft grounding provides a dedicated earth path through the motor shaft to the frame, reducing stray fault currents and helping protect drive electronics. This design simplifies fault tracing, speeds maintenance, and enhances safety on rotating equipment such as conveyors and pumps.
The 7BCEM3614T-G operates at 230 V or 460 V, 60 Hz, three-phase, with a 2 HP output and 1175 rpm. It uses a 184TC frame, TEFC enclosure, and offers horizontal mounting with foot-mounted bases and C-face drive-end compatibility for easy integration.
Yes. It offers a 60-minute duty rating, a 1.15 service factor, and Premium Efficiency, making it well-suited for continuous-duty applications like conveyors and pump drives with occasional overloads while minimizing energy costs.
This motor carries CSA, CSA EEV, and UR certifications, aligning with North American electrical and safety standards. Combined with NEMA design B and Premium Efficiency, these certifications support regulatory compliance and reliable performance in industrial environments.
The TEFC enclosure and steel frame reduce ingress and wear, lowering maintenance frequency. Shaft grounding enhances fault handling, while Premium Efficiency lowers energy costs. With stock available in multiple warehouses and minimal lead times (0 day in some cases), project timelines and overall ROI improve notably.
