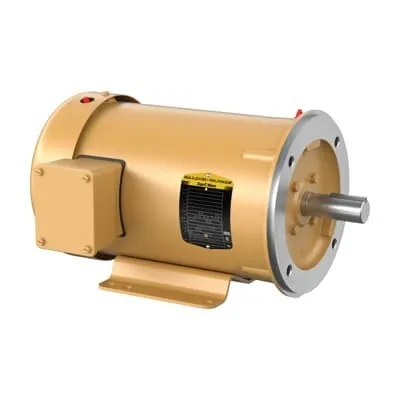

ABB 7BCEM3616T General Purpose Motor - TEFC 60 Hz
Part Number: 7BCEM3616T
Quick Summary
ABB 7BCEM3616T General Purpose Motor is a reliable 7.5 HP, three-phase solution for general industry drives. Engineers often face downtime, mismatched speed needs, and maintenance scheduling challenges when motor selection doesn’t align with load or enclosure requirements. This model aligns with CSA, CSA EEV, and UR safety certifications, and it carries a NEMA-compliant TEFC enclosure for demanding environments. With 230/460 V operation at 60 Hz, it supports horizontal mounting and field service accessibility, enabling streamlined installation while reducing lifecycle costs and inventory complexity for a broad range of general-purpose applications.
Product Information
Extended Description
7BCEM3616T ABB: General Purpose Motor 7.5 Hp 230 V (CEM3616T)
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
EGAUT001EXPU
Warranty Return
Product under warranty must be returned
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
GBINS001EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
SGIND004EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
USABB014EXPU
Warranty Return
Product under warranty must be returned
ABB Type Designation
7.5HP,3450RPM,3PH,60HZ,184TC,3646M,
Altitude
1000 m
Ambient Temperature
40 °C
Bearing
6206 | Ball
Bearing NDE
6205 | Ball
Brake Present
No
Brand / Label
Baldor-Reliance
Catalog Number
CEM3616T
Certification Agency
CSA | CSA EEV | UR
Country of Origin
United States (US)
Customs Tariff Number
85015220
Design
A
Dimension Diagram
36LYA002: Dimension Sheet
Direction of Rotation
Both sides
Drive End Flange Type
C-Face
Duty Time
60 Min
ETIM 7
EC001851 - Electric motor
Efficiency Level
Premium Efficiency (NEMA 12-12)
Electrical Data
Enclosure Type
TEFC
Frame Material
Steel
Frame Size
184
Frequency (f)
60 Hz
Global Commercial Alias
CEM3616T
Gross Volume
5274.135 in³
Gross Weight
101 lb
Horsepower Rating UL/CSA
7.500 Hp
IC Class
TEFC
IDEA Granular Category Code (IGCC)
1328 >> Multi phase motor AC
IE Class Data (50 Hz)
IE Class NA
IE Class Data (60 Hz)
IE Class NA
IM Class
F1
Insulation Class
F
Invoice Description
7.5HP,3450RPM,3PH,60HZ,184TC,3646M,TEFC
Lubrication
Regreasable
Made To Order
No
Medium Description
General Purpose 3PH Enclosed, 7.5 HP, 3600 RPM, Frame Size 184Tc, C-Face Mounting, 3 Phase, TEFC Enclosure, 230/460 V, 60 Hz (CEM361
Minimum Order Quantity
1 piece
Motor Base Type
Foot Mounted
Motor Frame Size
184TC
Motor Frame Suffix
TC
Mounting Orientation
Horizontal
Mounting Position
F1
NEMA Design Code
A
Number of Phases
3
Number of Poles
2P
Number of Poles (High)
2
Number of Speeds
Single Speed
Order Multiple
1 piece
Output Power
7.5 Hp
Power Factor
93 %
Product Name
General Purpose 3PH Enclosed
Product Net Depth / Length
21.625 in
Product Net Height
15.125 in
Product Net Weight
101 lb
Product Net Width
16.125 in
Product Type
Undefined
Quote Only
No
Rated Current (In)
16.8 A | 8.4 A
Rated Efficiency
89.50 %
Rated Speed
3450 r/min
Selling Unit of Measure
piece
Service Factor
1.15
Service Factor Percentage
1.15 %
Shaft Diameter
1.13 in
Short Description
7.5 HP, 3600 RPM, Frame Size 184Tc, C-Face, 3 PH, TEFC, 230/460 V
Standards
NEMA
Starting of Motor
Direct On Line
Stocked At (Warehouses)
China | Alabama, United States | Alaska, United States
Synchronous Speed (vsyn)
3600 r/min
Temperature Class Default
--
Two Speed Motor
No
Type of Duty
Continuous
UNSPSC
26101115
Voltage Code
L
Voltage Rating
230 V | 460 V
Feature: Dual voltage and a three-phase design provides installation flexibility and stock optimization, reducing spare parts carry and enabling rapid deployment across motor pools. Business impact: lowers total cost of ownership and speeds project timelines in conveyors, pumps, and fans. Application: suitable for general-purpose equipment in manufacturing lines and packaged systems. Feature: TEFC enclosure and Premium Efficiency rating (89.50%) protect critical windings in dusty or humid environments while lowering energy consumption. Business impact: reduces energy bills and maintenance downtime, supporting compliance with efficiency targets. Application: industrial conveying and process equipment operating in harsher plant conditions. Feature: Regreasable bearings and a 60-minute duty rating extend bearing life and simplify maintenance planning. Business impact: minimizes unplanned outages and extends mean time between service events. Application: continuous-duty conveyors, blowers, and pumps in continuous operation. Feature: Direct On Line starting, 3450 r/min rated speed, and 60 Hz frequency enable fast, reliable starts with minimal control complexity. Business impact: improves start-up reliability and reduces soft-start equipment needs. Application: general-purpose drives in process and packaging lines. Feature: 184TC frame, foot-mounted base, and C-face drive end flange simplify retrofits and new installations alike. Business impact: accelerates installation, improves alignment accuracy, and supports straightforward mounting. Application: retrofit projects and new equipment where precise alignment and robust mounting matter.
Get a Quick Quote for a ABB 7BCEM3616T
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 7BCEM3616T?
Enquire Now
FAQs
The motor is designed for horizontal, foot-mounted installation with a C-face drive end flange and a 184TC frame. It supports direct mounting to standard equipment and aligns with common NEMA-based installation practices, making retrofits and new builds straightforward while preserving alignment accuracy and vibration control.
Key specs include three-phase operation at 60 Hz with dual voltage 230 V / 460 V, 7.5 HP output, rated current around 16.8 A, and a premium efficiency of 89.5%. Starting is Direct On Line, and the motor operates in a continuous duty cycle with a service factor of 1.15 for reliability under load.
Yes. With a continuous-duty rating, a 60-minute duty time, and regreasable bearings, this motor is optimized for long, uninterrupted operation in conveyors and pumps. The 3450 r/min speed and robust TEFC enclosure help sustain performance in demanding environments.
The motor is certified to CSA, CSA EEV, and UR safety standards and follows a NEMA framework. This combination supports compliance in regulated facilities and helps with qualification in North American installations, while the TEFC enclosure protects internal components in challenging environments.
Lubrication is regreasable, simplifying routine bearing service. The model ships stocked at multiple warehouses for rapid procurement, and warranty terms indicate standard coverage with a return policy for warranty-related issues. Planning preventive maintenance around bearing life and seal checks can minimize downtime and extend motor life.
