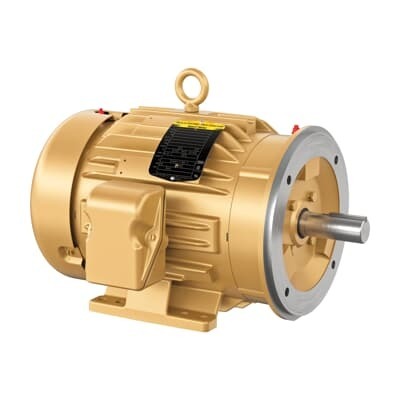

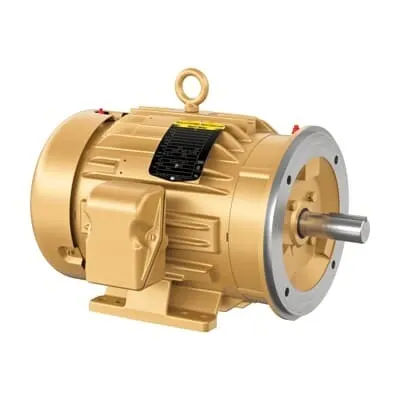

ABB 7BCEM3665T General Purpose Motor - IE3 Premium
Part Number: 7BCEM3665T
Quick Summary
ABB 7BCEM3665T General Purpose Motor is a 5 HP, 230 V three-phase drive for general industrial equipment. Engineers often struggle with energy waste, downtime, and spare-part planning when multiple motors operate across a facility. Certified IE3 premium efficiency, along with CSA and UR safety listings, supports regulatory compliance and lowers operating costs. Its TEFC design, 60 Hz capability, and robust frame enable easy installation and reliable performance in pumps, conveyors, and general machinery. Designed for 184TC frame compatibility and C-Face mounting, it simplifies retrofits and new installations alike, reducing project risk. This motor is a dependable choice for automation and processing lines seeking a balance of performance, efficiency, and serviceability.
Product Information
Extended Description
7BCEM3665T ABB: General Purpose Motor 5 Hp 230 V (CEM3665T)
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
EGAUT001EXPU
Warranty Return
Product under warranty must be returned
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
GBINS001EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
SGIND004EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
USABB014EXPU
Warranty Return
Product under warranty must be returned
ABB Type Designation
5HP,1755RPM,3PH,60HZ,184TC,0642M,TE
Altitude
1000 m
Ambient Temperature
40 °C
Bearing
6206 | Ball
Bearing NDE
6205 | Ball
Brake Present
No
Brand / Label
Baldor-Reliance
Catalog Number
CEM3665T
Certification Agency
CSA | CSA EEV | UR
Country of Origin
United States (US)
Customs Tariff Number
85015220
Design
B
Dimension Diagram
06LYF057: Dimension Sheet
Direction of Rotation
Both sides
Drive End Flange Type
C-Face
Duty Time
60 Min
ETIM 7
EC001851 - Electric motor
Efficiency Level
IE3 | Not Regulated / Exempt | Premium Efficiency (NEMA 12-12)
Electrical Data
Enclosure Type
TEFC
Frame Material
Iron
Frame Size
184
Frequency (f)
60 Hz
Global Commercial Alias
CEM3665T
Gross Volume
5274.135 inÂł
Gross Weight
114 lb
Horsepower Rating UL/CSA
5.000 Hp
IC Class
TEFC
IDEA Granular Category Code (IGCC)
1325 >> General purpose motor AC
IE Class Data (50 Hz)
IE Class NA
IE Class Data (60 Hz)
IE Class NA
IM Class
F1
Insulation Class
F
Invoice Description
5HP,1755RPM,3PH,60HZ,184TC,0642M,TEFC,F1
Lubrication
Regreasable
Made To Order
No
Medium Description
General Purpose 3PH Enclosed, 5 HP, 1800 RPM, Frame Size 184Tc, C-Face Mounting, 3 Phase, TEFC Enclosure, 230/460 V, 60 Hz (CEM3665T
Minimum Order Quantity
1 piece
Motor Base Type
Foot Mounted
Motor Frame Size
184TC
Motor Frame Suffix
TC
Mounting Orientation
Horizontal
Mounting Position
F1
NEMA Design Code
B
Number of Phases
3
Number of Poles
4P
Number of Poles (High)
4
Number of Speeds
Single Speed
Order Multiple
1 piece
Output Power
5 Hp
Power Factor
80 %
Product Name
General Purpose 3PH Enclosed
Product Net Depth / Length
21.625 in
Product Net Height
15.125 in
Product Net Weight
114 lb
Product Net Width
16.125 in
Product Type
NEMA_PREMIUM
Quote Only
No
Rated Current (In)
13.2 A | 6.6 A
Rated Efficiency
89.50 %
Rated Speed
1750 r/min
Selling Unit of Measure
piece
Service Factor
1.15
Service Factor Percentage
1.15 %
Shaft Diameter
1.13 in
Short Description
5 HP, 1800 RPM, Frame Size 184Tc, C-Face, 3 PH, TEFC, 230/460 V
Standards
NEMA
Starting of Motor
Direct On Line
Stocked At (Warehouses)
Menden, Germany | China | Alabama, United States | Alaska, United States
Synchronous Speed (vsyn)
1800 r/min
Temperature Class Default
--
Two Speed Motor
No
Type of Duty
Continuous
UNSPSC
26101112
Voltage Code
J
Voltage Rating
230 V | 460 V
Feature: IE3 premium efficiency with 89.50% efficiency reduces energy waste in continuous-duty applications. Business Impact: lowers operating costs and supports compliance with energy standards across pumps, fans, and conveyors. Application: ideal for general-purpose motor fleets in manufacturing lines and processing plants, delivering measurable savings over the motor life. Feature: TEFC enclosure protects bearings and windings from dust, moisture, and debris. Business Impact: longer motor life and reduced maintenance intervals in harsh environments. Application: suitable for conveyors, material handling, and outdoor facilities where contamination is a concern, improving uptime. Feature: Dual voltage 230/460 V at 60 Hz with a 184TC frame and 4P, 3-phase design. Business Impact: installation flexibility and reduced wiring changes, lowering installation time and spare parts needs. Application: retrofits and new builds across OEM equipment, pumps, and fans in automation lines. Feature: 1.13 in shaft diameter with 1.15 service factor and 5 HP output. Business Impact: reliable starting torque and resilience under peak loads; easy coupling with standard belts or gear reducers. Application: automation equipment and drive systems requiring consistent performance. Feature: Ball bearings 6206 with regreasable lubrication. Business Impact: lower maintenance costs and longer service intervals, supporting predictable production schedules. Application: machine tools, packaging lines, and processing lines where routine maintenance should be minimized. Feature: Global stocking and fast availability with stock locations in Menden, US, China, Alabama and other warehouses. Business Impact: faster procurement, reduced downtime, and improved maintenance planning for critical spares. Application: distributed manufacturing environments and OEMs needing rapid response times.
Get a Quick Quote for a ABB 7BCEM3665T
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 7BCEM3665T?
Enquire Now
FAQs
Yes. The 7BCEM3665T uses a 184TC frame and C-Face mounting, with foot-mounted options for horizontal alignment. It accommodates 230/460 V, 3‑phase power at 60 Hz and a 4-pole configuration, aligning with common Baldor/ABB footprints. Dimension sheets confirm compatibility for retrofit projects and new installations alike, simplifying bolting patterns and alignment with standard couplings.
The motor delivers IE3 premium efficiency with a rated efficiency of 89.50% and a service factor of 1.15. This combination supports lower energy consumption in continuous duty applications such as pumps and fans, while maintaining torque margins under peak load. With 5 HP output at 1750 r/min, it provides reliable performance across typical plant loads.
Yes. Designed for continuous duty with a 60-minute duty cycle, it delivers stable performance at 1750 r/min (synchronous 1800 r/min) under normal operating conditions. The TEFC enclosure protects internal components, enabling reliable operation in dusty or humid environments typical of processing lines, while the 3-phase 230/460 V supply supports broad plant electrical systems.
The 7BCEM3665T features CSA and UR safety listings and CSA EEV, along with IE3 premium efficiency. It adheres to NEMA design principles (Design B) and is suitable for US and international installations. These certifications help ensure regulatory compliance, safety, and traceability across automation and electrical installations in diverse industrial environments.
Upgrading to IE3 premium efficiency typically yields noticeable energy savings in continuous-duty applications, reducing running costs over the motor’s life. With 89.50% efficiency and 5 HP output, facilities can expect lower electricity bills, improved compliance with energy standards, and longer maintenance intervals. For precise ROI, analyze load profiles, duty cycles, and current energy tariffs across plant sites.
