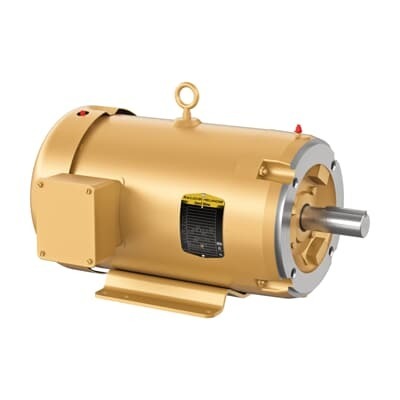

ABB 7BCEM3714T General Purpose Motor - IE3 Premium
Part Number: 7BCEM3714T
Quick Summary
ABB 7BCEM3714T General Purpose Motor is a reliable 10 HP three-phase motor designed for demanding manufacturing and processing lines. Engineers often contend with downtime and performance variability caused by undersized drives in harsh environments; this motor’s TEFC enclosure and robust bearings help minimize unscheduled stops. Notable certifications include IE3 premium efficiency, CSA, and UR listings, supporting compliance across North American and international facilities. With 230/460 V operation at 60 Hz and a C-face mounting footprint, it integrates cleanly with standard industrial power, drives, and equipment. This combination delivers predictable performance, energy savings, and a lower total cost of ownership for mid-scale manufacturing and packaging lines.
Product Information
Extended Description
7BCEM3714T ABB: General Purpose Motor 10 Hp 230 V (CEM3714T)
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
EGAUT001EXPU
Warranty Return
Product under warranty must be returned
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
GBINS001EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
SGIND004EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
USABB014EXPU
Warranty Return
Product under warranty must be returned
ABB Type Designation
10HP,1770RPM,3PH,60HZ,215TC,3752M,T
Altitude
1000 m
Ambient Temperature
40 °C
Bearing
6307 | Ball
Bearing NDE
6206 | Ball
Brake Present
No
Brand / Label
Baldor-Reliance
Catalog Number
CEM3714T
Certification Agency
CSA | CSA EEV | UR
Country of Origin
United States (US)
Customs Tariff Number
85015220
Design
A
Dimension Diagram
37LYG814: Dimension Sheet
Direction of Rotation
Both sides
Drive End Flange Type
C-Face
Duty Time
60 Min
ETIM 7
EC001851 - Electric motor
Efficiency Level
IE3 | Not Regulated / Exempt | Premium Efficiency (NEMA 12-12)
Electrical Data
Enclosure Type
TEFC
Frame Material
Steel
Frame Size
215
Frequency (f)
60 Hz
Global Commercial Alias
CEM3714T
Gross Volume
7561.383 in³
Gross Weight
165 lb
Horsepower Rating UL/CSA
10.000 Hp
IC Class
TEFC
IDEA Granular Category Code (IGCC)
1328 >> Multi phase motor AC
IE Class Data (50 Hz)
IE Class NA
IE Class Data (60 Hz)
IE Class NA
IM Class
NEMA Foot with Face
Insulation Class
F
Invoice Description
10HP,1770RPM,3PH,60HZ,215TC,3752M,TEFC,F
Lubrication
Regreasable
Made To Order
No
Medium Description
General Purpose 3PH Enclosed, 10 HP, 1800 RPM, Frame Size 215Tc, C-Face Mounting, 3 Phase, TEFC Enclosure, 230/460 V, 60 Hz (CEM3714
Minimum Order Quantity
1 piece
Motor Base Type
Foot Mounted
Motor Frame Size
215TC
Motor Frame Suffix
TC
Mounting Orientation
Horizontal
Mounting Position
F1
NEMA Design Code
A
Number of Phases
3
Number of Poles
4P
Number of Poles (High)
4
Number of Speeds
Single Speed
Order Multiple
1 piece
Output Power
10 Hp
Power Factor
85 %
Product Name
General Purpose 3PH Enclosed
Product Net Depth / Length
26.375 in
Product Net Height
17.375 in
Product Net Weight
165 lb
Product Net Width
16.5 in
Product Type
NEMA_PREMIUM
Quote Only
No
Rated Current (In)
25 A | 12.5 A
Rated Efficiency
91.70 %
Rated Speed
1770 r/min
Selling Unit of Measure
piece
Service Factor
1.15
Service Factor Percentage
1.15 %
Shaft Diameter
1.38 in
Short Description
10 HP, 1800 RPM, Frame Size 215Tc, C-Face, 3 PH, TEFC, 230/460 V
Standards
NEMA
Starting of Motor
Direct On Line
Stocked At (Warehouses)
Menden, Germany | China | Alabama, United States | Alaska, United States
Synchronous Speed (vsyn)
1800 r/min
Temperature Class Default
--
Two Speed Motor
No
Type of Duty
Continuous
UNSPSC
26101115
Voltage Code
K
Voltage Rating
230 V | 460 V
10 HP, 3-phase operation at 60 Hz delivers reliable torque for conveyors, pumps, fans, and mixers. The 1770 rpm nominal speed and a service factor of 1.15 provide margin for brief overloads, reducing stall risk during peak demand. IE3 premium efficiency reduces energy consumption in continuous-duty environments, supporting lower operating costs and greener plant metrics. TEFC enclosure with a 215TC frame and C-face mounting creates a rugged package suitable for dusty or humid environments, while a steel frame and greasable bearings enable longer maintenance intervals and less downtime. The motor supports dual voltage operation at 230/460 V, simplifying wiring, stock management, and retrofit projects. Direct-on-line starting minimizes control hardware and accelerates commissioning, making it ideal for OEM line upgrades and new installations. Bearing life is enhanced by robust components (6307 ball bearings), contributing to lower lifecycle costs in high-load applications.
Get a Quick Quote for a ABB 7BCEM3714T
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 7BCEM3714T?
Enquire Now
FAQs
Install with horizontal mounting in the F1 position using the C-face mounting pattern and 215TC frame. Ensure proper alignment for the 1.38 in shaft diameter, then connect to a 230/460 V, 3-phase 60 Hz supply. The motor is designed for direct-on-line starting, which simplifies control wiring and minimizes startup components. Use standard V-belt or direct coupling as required by your OEM assembly and verify clearance around the TEFC enclosure for cooling.
The motor is a 10 HP, 3-phase unit rated for 60 Hz operation with dual voltage 230 V / 460 V. It runs at 1770 r/min (nominal), has a service factor of 1.15, and an insulation class of F. The enclosure is TEFC, and the motor uses 6307 ball bearings. This configuration supports continuous duty and reliable performance in standard industrial power systems.
Yes. The TEFC enclosure provides protection in dusty and moderately humid environments, and the steel frame is built for durability. With a continuous duty rating, greasable bearings, and a 165 lb weight, the 7BCEM3714T is well-suited for high-cycle processes like packaging, material handling, and process lines where uptime and predictable torque are critical.
The motor carries IE3 premium efficiency, with CSA and UR certification support, and CSA EEV labeling. These certifications validate energy efficiency, electrical safety, and international compliance, making the motor suitable for global operations and reducing risk in regulated environments across North America and beyond.
Maintenance benefits come from greasable bearings and a robust TEFC design that reduces contamination ingress. The 1.15 service factor provides headroom for transient loads, potentially lowering maintenance-induced downtime. With energy savings from IE3 efficiency and a predictable 10 HP capability, the motor can offer a favorable total cost of ownership, especially in continuous-duty applications such as conveyors, pumps, and fans.
