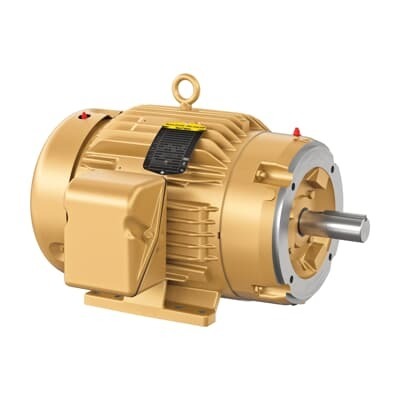

ABB 7BCEM3771T-5 General Purpose Motor - 575V TEFC
Part Number: 7BCEM3771T-5
Quick Summary
ABB 7BCEM3771T-5 General Purpose motor delivers reliable 10 HP, 575 V three-phase power for heavy machinery and process lines. For projects with tight footprints and demanding duty cycles, you need a motor that starts reliably, runs efficiently, and minimizes maintenance. Certified for CSA, UR, and CSA EEV, it aligns with North American safety standards and regulator expectations. With TEFC enclosure, a 215TC frame, and a 1.15 service factor, this motor provides rugged performance in harsh plants while maintaining dependable operation. Designed for 60 Hz systems and ready to stock across multiple warehouses, it supports as-needed procurement and predictable lead times, helping to lower total cost of ownership.
Product Information
Extended Description
7BCEM3771T-5 ABB: General Purpose Motor 10 Hp 575 V (CEM3771T-5)
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
EGAUT001EXPU
Warranty Return
Product under warranty must be returned
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
GBINS001EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
SGIND004EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
USABB014EXPU
Warranty Return
Product under warranty must be returned
ABB Type Designation
10HP,3490RPM,3PH,60HZ,215TC,0730M,T
Altitude
1000 m
Ambient Temperature
40 °C
Bearing
6307 | Ball
Bearing NDE
6206 | Ball
Brake Present
No
Brand / Label
Baldor-Reliance
Catalog Number
CEM3771T-5
Certification Agency
CSA | CSA EEV | UR
Country of Origin
United States (US)
Customs Tariff Number
85015220
Design
B
Dimension Diagram
07LYH058: Dimension Sheet
Direction of Rotation
Both sides
Drive End Flange Type
C-Face
Duty Time
60 Min
ETIM 7
EC001851 - Electric motor
Efficiency Level
Premium Efficiency (NEMA 12-12)
Electrical Data
Enclosure Type
TEFC
Frame Material
Iron
Frame Size
215
Frequency (f)
60 Hz
Global Commercial Alias
CEM3771T-5
Gross Volume
9144.346 inÂł
Gross Weight
182 lb
Horsepower Rating UL/CSA
10.000 Hp
IC Class
TEFC
IDEA Granular Category Code (IGCC)
1325 >> General purpose motor AC
IE Class Data (50 Hz)
IE Class NA
IE Class Data (60 Hz)
IE Class NA
IM Class
F1
Insulation Class
F
Invoice Description
10HP,3490RPM,3PH,60HZ,215TC,0730M,TEFC,F
Lubrication
Regreasable
Made To Order
No
Medium Description
General Purpose 3PH Enclosed, 10 HP, 3600 RPM, Frame Size 215Tc, C-Face Mounting, 3 Phase, TEFC Enclosure, 575 V, 60 Hz (CEM3771T-5)
Minimum Order Quantity
1 piece
Motor Base Type
Foot Mounted
Motor Frame Size
215TC
Motor Frame Suffix
TC
Mounting Orientation
Horizontal
Mounting Position
F1
NEMA Design Code
B
Number of Phases
3
Number of Poles
2P
Number of Poles (High)
2
Number of Speeds
Single Speed
Order Multiple
1 piece
Output Power
10 Hp
Power Factor
87 %
Product Name
General Purpose 3PH Enclosed
Product Net Depth / Length
28.625 in
Product Net Height
17.625 in
Product Net Weight
182 lb
Product Net Width
18.125 in
Product Type
Undefined
Quote Only
No
Rated Current (In)
9.3 A
Rated Efficiency
90.20 %
Rated Speed
3490 r/min
Selling Unit of Measure
piece
Service Factor
1.15
Service Factor Percentage
1.15 %
Shaft Diameter
1.38 in
Short Description
10 HP, 3600 RPM, Frame Size 215Tc, C-Face, 3 PH, TEFC, 575 V
Standards
NEMA
Starting of Motor
Direct On Line
Stocked At (Warehouses)
China | Alabama, United States | Alaska, United States
Synchronous Speed (vsyn)
3600 r/min
Temperature Class Default
--
Two Speed Motor
No
Type of Duty
Continuous
UNSPSC
26101112
Voltage Code
G
Voltage Rating
575 V
Feature: 10 HP, 575 V, 3-phase, 60 Hz, 3490 rpm class for robust conveyors, pumps, and processing equipment. Business Impact: Matches common line speeds and reduces undersizing risk, delivering predictable performance in new builds and retrofits. Application: Suitable for general purpose applications in manufacturing floors and material handling. Feature: TEFC enclosure with a 215TC frame and C-face mounting. Business Impact: Protects against dust and moisture, enabling longer service intervals and lower maintenance costs. Application: Plants with dirty or humid environments such as packaging lines or chemical processing. Feature: Foot Mounted with horizontal mounting (F1) and 1.38 in shaft diameter. Business Impact: Simplifies installation and retrofit into existing footprints, minimizing down-time and enabling rapid modernization. Application: Retrofit projects and new line installations. Feature: Efficiency of 90.20% and a 0.87 power factor. Business Impact: Reduces energy consumption and electrical losses, lowering operating costs over the motor’s life. Application: Continuous duty drives in pumps and fans where energy budgets matter. Feature: Regreasable bearings (6307 | 6206 Ball) and no brake. Business Impact: Extends bearing life and reduces maintenance while eliminating brake-related wear concerns. Application: Frequent start-stop environments like conveyors and mixers. Feature: Service Factor 1.15 and 3490 r/min rated speed. Business Impact: Provides a margin for short overloads and transient loads without compromising reliability. Application: Heavy-load startup scenarios and peak demand periods. Overall, the motor’s compatibility with standard 3PH 60 Hz infrastructure, its NEMA-based design features, and its stock availability across multiple warehouses support faster project delivery and lower total cost of ownership for industrial facilities.
Get a Quick Quote for a ABB 7BCEM3771T-5
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 7BCEM3771T-5?
Enquire Now
FAQs
It is designed as a foot-mounted motor with a C-face flange (F1 orientation) for horizontal mounting on a 215TC frame, enabling straightforward installation and compatibility with common conveyor and pump assemblies.
Yes. The product data lists CSA, CSA EEV, and UR certifications, ensuring compliance with North American safety and regulatory requirements for industrial motors.
575 V, 3-phase, 60 Hz operation, 10 HP rated power, 9.3 A nominal current, 90.2% efficiency, and 0.87 power factor, with a synchronous speed of 3600 r/min and a rated speed of 3490 r/min.
The motor uses regreasable bearings (6307/6206 Ball) and a TEFC enclosure for rugged environments, with no brake. It’s designed for rapid stock replenishment across multiple warehouses to minimize downtime during outages.
Ideal for general purpose, continuous-duty drives in conveyors, pumps, and processing equipment across manufacturing, packaging, and material handling sectors, especially where 575 V 60 Hz power is available.
