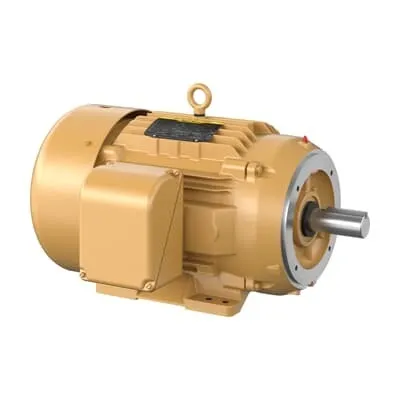

ABB 7BCEM4103T-G Shaft Ground Motor - 25HP TEFC
Part Number: 7BCEM4103T-G
Quick Summary
ABB 7BCEM4103T-G Shaft Ground Motor is a 25 HP three‑phase motor designed for industrial conveyors, fans, and pumps. For teams battling grounding faults and unplanned downtime, reliable shaft grounding and rugged construction matter most. It carries NEMA design standards with CSA, CSA EEV, and UL UR certifications to support regulatory compliance in North American facilities. With dual voltage 230/460 V and 60 Hz operation, this motor simplifies stocking and installation while delivering consistent performance across demanding applications such as material handling and process automation.
Product Information
Extended Description
7BCEM4103T-G ABB: Shaft Ground 25 Hp 230 V (CEM4103T-G)
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
EGAUT001EXPU
Warranty Return
Product under warranty must be returned
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
GBINS001EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
SGIND004EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
USABB014EXPU
Warranty Return
Product under warranty must be returned
ABB Type Designation
25HP,1775RPM,3PH,60HZ,284TC,TEFC,F1
Ambient Temperature
40 °C
Bearing
6311 | Ball
Bearing NDE
6309 | Ball
Brake Present
No
Brand / Label
Baldor-Reliance
Catalog Number
CEM4103T-G
Certification Agency
CSA | CSA EEV | UR
Country of Origin
United States (US)
Customs Tariff Number
85015230
Dimension Diagram
10LYJ646: Dimension Sheet
Drive End Flange Type
C-Face
Duty Time
60 Min
ETIM 7
EC001851 - Electric motor
Efficiency Level
Premium Efficiency (NEMA 12-12)
Electrical Data
Enclosure Type
TEFC
Frame Material
Iron
Frame Size
284
Frequency (f)
60 Hz
Global Commercial Alias
CEM4103T-G
Gross Volume
16128 in³
Gross Weight
420.001 lb
IDEA Granular Category Code (IGCC)
1318 >> Heating and cooling system motor AC
Insulation Class
H
Invoice Description
25HP,1775RPM,3PH,60HZ,284TC,TEFC,F1
Made To Order
No
Medium Description
Shaft Ground, 25 HP, 1800 RPM, Frame Size 284Tc, C-Face Mounting, 3 Phase, TEFC Enclosure, 230/460 V, 60 Hz (CEM4103T-G)
Minimum Order Quantity
1 piece
Motor Base Type
Foot Mounted
Motor Frame Size
284TC
Motor Frame Suffix
TC
Mounting Orientation
Horizontal
Mounting Position
F1
NEMA Design Code
A
Number of Phases
3
Number of Poles
4P
Number of Poles (High)
4
Number of Speeds
Single Speed
Order Multiple
1 piece
Output Power
25 Hp
Power Factor
81 %
Product Name
Shaft Ground
Product Net Depth / Length
32 in
Product Net Height
21 in
Product Net Weight
420.001 lb
Product Net Width
24 in
Product Type
Undefined
Quote Only
No
Rated Current (In)
62 A | 31 A
Rated Efficiency
93.60 %
Rated Speed
1775 r/min
Replaced Product ID (OLD)
7B10-0000580
Selling Unit of Measure
piece
Service Factor
1.15
Shaft Diameter
1.88 in
Shaft Grounding
Shaft Grounding
Short Description
25 HP, 1800 RPM, Frame Size 284Tc, C-Face, 3 PH, TEFC, 230/460 V
Standards
NEMA
Starting of Motor
Direct On Line
Stocked At (Warehouses)
China | Alabama, United States | Alaska, United States
Synchronous Speed (vsyn)
1800 r/min
Type of Duty
Continuous
UNSPSC
26101105
Voltage Rating
230 V | 460 V
Feature Shaft Grounding design with a 1.88 in shaft diameter → Business Impact Improves safety and fault resilience, reducing nuisance trips, downtime and maintenance costs; Application Ideal for conveyors, pumps, and fans where shaft grounding minimizes electrical discharge issues. Feature Dual voltage 230/460 V → Business Impact Enables flexible site power options and streamlined procurement; Application Global operations and aftermarket support benefit from a single motor family across plants. Feature Frame Size 284TC, TEFC enclosure, C-Face drive end flange → Business Impact Provides robust protection and easier installation; Application Horizontal, foot-mounted setups in tight spaces and retrofit projects. Feature 25 HP, 1775 r/min, 60 Hz, 4-pole design → Business Impact Delivers steady torque with predictable performance and long motor life; Application Continuous-duty processes requiring reliable speed control and load handling. Feature Premium Efficiency, 93.60% → Business Impact Reduces energy cost and heat, extending bearing life; Application Compliance with energy standards and cost-conscious plant operations. Feature Bearings 6311 Ball / 6309 Ball → Business Impact Fewer maintenance interventions and longer service intervals; Application Harsh industrial environments with high reliability needs. Feature NEMA Design A, Service Factor 1.15 → Business Impact Enhanced torque reserve and lifecycle confidence; Application Start-up in demanding loads and rapid acceleration scenarios with reduced stress on drivetrain components.
Get a Quick Quote for a ABB 7BCEM4103T-G
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 7BCEM4103T-G?
Enquire Now
FAQs
This motor uses a foot-mounted, horizontal orientation with a C-face drive end flange and 284TC frame. Ensure a solid base, matched mounting holes, and appropriate shaft grounding path. Use compliant protective devices and verify 230/460 V dual-voltage wiring per NEC guidelines to ensure safe startup and reliable operation.
The motor operates on 3-phase power at 60 Hz with dual voltage capability of 230 V or 460 V. It delivers 25 HP at 1775 rpm (4-pole) with a service factor of 1.15. Full-load current is rated at 62 A (high) and 31 A (low), suitable for standard industrial supply networks.
Yes. The shaft grounding design is specifically intended to mitigate shaft-to-ground faults common in conveyors and pumps. A 1.88 in shaft diameter supports robust grounding, reducing electrical noise and fault trips, and improving overall system reliability in continuous operation environments.
The model adheres to NEMA design practices and carries CSA, CSA EEV, and UL UR certifications, enhancing safety and compliance. These approvals help you meet procurement and installation requirements in North American facilities and facilitate audits and inspections.
With premium efficiency (93.60%) and robust ball bearings (6311 and 6309), expect lower energy use and reduced bearing maintenance. The 60-minute duty rating and continuous-operation design support longer intervals between service. Plan for periodic lubrication and inspection aligned with ambient 40 °C limits to maximize uptime and return on investment.
