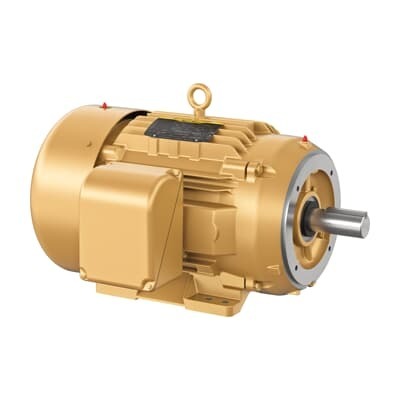

ABB 7BCEM4104T General Purpose Motor - IE3 Premium
Part Number: 7BCEM4104T
Quick Summary
ABB 7BCEM4104T General Purpose Motor delivers reliable 30 HP performance for general purpose drives in manufacturing and processing lines. Engineers often contend with long lead times, inconsistent documentation, and uncertain compatibility when upgrading motors. With CSA, CSA EEV and UR certifications, plus a TEFC enclosure and premium IE3 efficiency, this motor helps meet regulatory and energy targets. Designed for 3‑phase, 60 Hz operation across 230/460 V and stocked globally, it supports faster project timelines and lower downtime. Its 30 HP at 1760 rpm aligns with common load profiles, enabling smoother speed matching, lower energy waste, and improved system reliability. Plus, stock availability across EGAUT001, GBINS001, SGIND004 and USABB014 warehouses shortens lead times and simplifies compliance documentation.
Product Information
Extended Description
7BCEM4104T ABB: General Purpose Motor 30 Hp 230 V (CEM4104T)
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
EGAUT001EXPU
Warranty Return
Product under warranty must be returned
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
GBINS001EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
SGIND004EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
USABB014EXPU
Warranty Return
Product under warranty must be returned
ABB Type Designation
30HP,1760RPM,3PH,60HZ,286TC,1056M,T
Altitude
1000 m
Ambient Temperature
40 °C
Bearing
6311 | Ball
Bearing NDE
6309 | Ball
Brake Present
No
Brand / Label
Baldor-Reliance
Catalog Number
CEM4104T
Certification Agency
CSA | CSA EEV | UR
Country of Origin
United States (US)
Customs Tariff Number
85015230
Design
A
Dimension Diagram
10LYC152: Dimension Sheet
Direction of Rotation
Both sides
Drive End Flange Type
C-Face
Duty Time
60 Min
ETIM 7
EC001851 - Electric motor
Efficiency Level
IE3 | Not Regulated / Exempt | Premium Efficiency (NEMA 12-12)
Electrical Data
Enclosure Type
TEFC
Frame Material
Iron
Frame Size
286
Frequency (f)
60 Hz
Global Commercial Alias
CEM4104T
Gross Volume
14448.906 in³
Gross Weight
233.6 kg
Horsepower Rating UL/CSA
30.000 Hp
IC Class
TEFC
IDEA Granular Category Code (IGCC)
1328 >> Multi phase motor AC
IE Class Data (50 Hz)
IE Class NA
IE Class Data (60 Hz)
IE Class NA
IM Class
NEMA Foot with Face
Insulation Class
F
Invoice Description
30HP,1760RPM,3PH,60HZ,286TC,1056M,TEFC,F
Lubrication
Regreasable
Made To Order
No
Medium Description
General Purpose 3PH Enclosed, 30 HP, 1800 RPM, Frame Size 286Tc, C-Face Mounting, 3 Phase, TEFC Enclosure, 230/460 V, 60 Hz (CEM4104
Minimum Order Quantity
1 piece
Motor Base Type
Foot Mounted
Motor Frame Size
286TC
Motor Frame Suffix
TC
Mounting Orientation
Horizontal
Mounting Position
F1
NEMA Design Code
A
Number of Phases
3
Number of Poles
4P
Number of Poles (High)
4
Number of Speeds
Single Speed
Order Multiple
1 piece
Output Power
30 Hp
Power Factor
80 %
Product Name
General Purpose 3PH Enclosed
Product Net Depth / Length
31 in
Product Net Height
19.625 in
Product Net Weight
233.6 kg
Product Net Width
23.75 in
Product Type
NEMA_PREMIUM
Quote Only
No
Rated Current (In)
76 A | 38 A
Rated Efficiency
93.60 %
Rated Speed
1760 r/min
Selling Unit of Measure
piece
Service Factor
1.15
Service Factor Percentage
1.15 %
Shaft Diameter
1.88 in
Short Description
30 HP, 1800 RPM, Frame Size 286Tc, C-Face, 3 PH, TEFC, 230/460 V
Standards
NEMA
Starting of Motor
Direct On Line
Stocked At (Warehouses)
Menden, Germany | China | Alabama, United States | Alaska, United States
Synchronous Speed (vsyn)
1800 r/min
Temperature Class Default
--
Two Speed Motor
No
Type of Duty
Continuous
UNSPSC
26101115
Voltage Code
J
Voltage Rating
230 V | 460 V
Feature: Premium efficiency IE3 with 93.60% rated efficiency. Business Impact: Reduces energy consumption and operating costs over the motor’s life, supporting stricter energy codes and greener plant operations. Application: Continuous process applications such as fans and pumps in chemical, food, or wastewater facilities benefit from measurable energy savings without sacrificing performance. Feature: TEFC enclosure with 286TC frame and C-Face mounting. Business Impact: Provides rugged protection in harsh environments and simplifies mounting on standard bases, reducing installation time and maintenance needs. Application: Industrial environments with dust, moisture, or particulate exposure, including material handling and packaging lines. Feature: 3‑phase, 60 Hz operation at 230/460 V with 4 poles and 1760 rpm. Business Impact: Consistent motor performance across US and international facilities, enabling easier electrical design, fewer harmonics issues, and predictable startup behavior. Application: General purpose drives, conveyors, and blowers in manufacturing lines. Feature: NEMA Premium design, 1.15 service factor, and insulation class F. Business Impact: Higher reliability under load swings and extended uptime, lowering maintenance costs and replacement frequency. Application: Applications with moderate overloads and varying loads such as processing lines and material handling. Feature: Regreasable bearings (6311/6309 ball) and reinforced shaft (1.88 in). Business Impact: Longer bearing life and reduced maintenance intervals, improving overall equipment effectiveness. Application: High-duty cycles in packaging, milling, and pumping systems. Feature: Stocked at multiple warehouses with 0 day lead time. Business Impact: Fast procurement, reduced downtime, and smoother project planning. Application: Global manufacturing networks requiring rapid replacement and consistent documentation.
Get a Quick Quote for a ABB 7BCEM4104T
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 7BCEM4104T?
Enquire Now
FAQs
Yes. The motor is rated for 230 V or 460 V operation at 60 Hz, three-phase, with a direct-on-line starting option. For variable speed applications, it can be paired with suitable VFDs, providing smooth ramping and reduced inrush during startups while maintaining 1760 rpm nominal speed.
The motor carries CSA, CSA EEV and UR listings, along with NEMA design considerations and IE3 premium efficiency. These certifications support regulatory compliance in North America and align with energy efficiency programs, reducing compliance risk across facilities.
Lead time is listed as 0 day, with stock across multiple warehouses including EGAUT001EXPU, GBINS001EXPU, SGIND004EXPU and USABB014EXPU. This enables rapid procurement and minimizes downtime when replacing existing 30 HP motors in regional or global operations.
Key installation details include 286TC frame size with a C-Face drive end, foot-mounted base type, horizontal mounting orientation, and shaft diameter of 1.88 inches. The unit is a 3-phase, 4-pole motor rated at 1760 rpm, compatible with standard mounting patterns and ready for 60 Hz service.
The motor delivers 30 HP with a rated efficiency of 93.60% and a service factor of 1.15, supporting reliable operation under moderate overloads. This combination helps project teams estimate energy costs accurately and plan maintenance cycles to maximize uptime.
