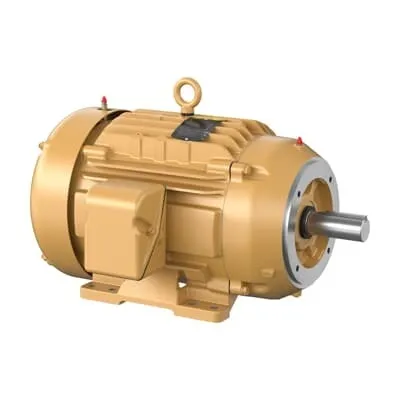

ABB 7BCEM4106T General Purpose Motor - IE3 Premium
Part Number: 7BCEM4106T
Quick Summary
General Purpose Motor powers dependable drives for pumps, conveyors, and fans in industrial settings. Engineers often wrestle with long lead times, mismatched voltages, and limited stock when sourcing exact motor frames for new lines or retrofits. This ABB model ships with IE3 premium efficiency, CSA, CSA EEV, and UR certifications, plus a NEMA design basis that accelerates safety and performance approvals. With stock on hand across multiple regions and a 0 day lead time, it enables quick commissioning and minimal downtime. The combination of 256TC frame, TEFC enclosure, and dual voltage versatility supports global installations, lowering total cost of ownership over the motor's life.
Product Information
Extended Description
7BCEM4106T ABB: General Purpose Motor 20 Hp 208 V (CEM4106T)
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
EGAUT001EXPU
Warranty Return
Product under warranty must be returned
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
GBINS001EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
SGIND004EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
USABB014EXPU
Warranty Return
Product under warranty must be returned
ABB Type Designation
20HP,3520RPM,3PH,60HZ,256TC,0936M,T
Altitude
1000 m
Ambient Temperature
40 °C
Bearing
6309 | Ball
Bearing NDE
6208 | Ball
Brake Present
No
Brand / Label
Baldor-Reliance
Catalog Number
CEM4106T
Certification Agency
CSA | CSA EEV | UR
Country of Origin
United States (US)
Customs Tariff Number
85015220
Design
A
Dimension Diagram
09LYC102: Dimension Sheet
Direction of Rotation
Both sides
Drive End Flange Type
C-Face
Duty Time
60 Min
ETIM 7
EC001851 - Electric motor
Efficiency Level
IE3 | Not Regulated / Exempt | Premium Efficiency (NEMA 12-12)
Electrical Data
Enclosure Type
TEFC
Frame Material
Iron
Frame Size
256
Frequency (f)
60 Hz
Global Commercial Alias
CEM4106T
Gross Volume
9651.933 in³
Gross Weight
120.202 kg
Horsepower Rating UL/CSA
20.000 Hp
IC Class
TEFC
IDEA Granular Category Code (IGCC)
1328 >> Multi phase motor AC
IE Class Data (50 Hz)
IE Class NA
IE Class Data (60 Hz)
IE Class NA
IM Class
NEMA Foot with Face
Insulation Class
F
Invoice Description
20HP,3520RPM,3PH,60HZ,256TC,0936M,TEFC,F
Lubrication
Regreasable
Made To Order
No
Medium Description
General Purpose 3PH Enclosed, 20 HP, 3600 RPM, Frame Size 256Tc, C-Face Mounting, 3 Phase, TEFC Enclosure, 208-230/460 V, 60 Hz (CEM
Minimum Order Quantity
1 piece
Motor Base Type
Foot Mounted
Motor Frame Size
256TC
Motor Frame Suffix
TC
Mounting Orientation
Horizontal
Mounting Position
F1
NEMA Design Code
A
Number of Phases
3
Number of Poles
2P
Number of Poles (High)
2
Number of Speeds
Single Speed
Order Multiple
1 piece
Output Power
20 Hp
Power Factor
89 %
Product Name
General Purpose 3PH Enclosed
Product Net Depth / Length
27 in
Product Net Height
17.438 in
Product Net Weight
120.202 kg
Product Net Width
20.5 in
Product Type
NEMA_PREMIUM
Quote Only
No
Rated Current (In)
50 A | 46 A | 23 A
Rated Efficiency
91 %
Rated Speed
3520 r/min
Selling Unit of Measure
piece
Service Factor
1.15
Service Factor Percentage
1.15 %
Shaft Diameter
1.63 in
Short Description
20 HP, 3600 RPM, Frame Size 256Tc, C-Face, 3 PH, TEFC, 208-230/460 V
Standards
NEMA
Starting of Motor
Direct On Line
Stocked At (Warehouses)
Menden, Germany | China | Alabama, United States | Alaska, United States
Synchronous Speed (vsyn)
3600 r/min
Temperature Class Default
--
Two Speed Motor
No
Type of Duty
Continuous
UNSPSC
26101115
Voltage Code
H
Voltage Rating
208 V | 230 V | 460 V
Feature TEFC enclosure provides rugged protection for windings, bearings, and seals, enabling reliable operation in dusty or damp environments. The 256TC frame with C-face mounting and foot-mount compatibility aligns with many legacy bases and gearboxes, making retrofits straightforward and minimizing mechanical integration work. This 3-phase, dual voltage motor runs at 60 Hz with a rated speed of 3520 r/min, and features a compact footprint of roughly 27 in long by 17.4 in high and 20.5 in wide, helping fit standard 256TC bases and matching shaft couplings. Energy efficiency is a core business driver; this motor meets IE3 premium efficiency targets, which translates to lower energy bills for pumps, fans, and conveyors across manufacturing processes. The service factor of 1.15 provides a safety margin for brief overloads, while insulation class F supports reliable operation in ambient temperatures up to 40 C and altitudes up to 1000 m. Certifications such as CSA, CSA EEV, UR, and NEMA alignment simplify qualification and factory testing, reducing procurement risk. From a maintenance perspective, the motor uses regreasable bearings and a robust 6309 ball bearing arrangement, extending service intervals and simplifying lubrication routines. Direct On Line starting keeps electrical complexity low for standard duty applications, while the 1.63 in shaft diameter and TEFC design ensure compatibility with common couplings and protective enclosures. The motor is designed for horizontal mounting in F1 position and uses a C-face drive end flange for versatile installation. Availability is a key value proposition: stock is stored at multiple warehouses including the United States, Europe, and Asia, with 0 day lead times reported by supplier data. This model supports quick commissioning, minimal downtime, and predictable project timelines. Made in the United States, it carries traceability and warranty terms that simplify after-sales support, while offering broad voltage tolerance and a robust build that lowers total cost of ownership over the motor’s life.
