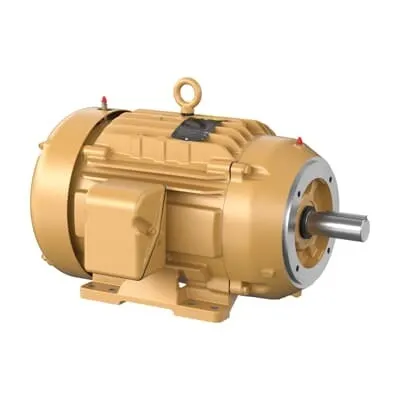

ABB 7BCEM4106T-G Motors & Drives - 20HP, 60Hz CSA EEV UR
Part Number: 7BCEM4106T-G
Quick Summary
ABB 7BCEM4106T-G is a shaft-ground motor designed for reliable, continuous-duty operation in industrial machinery. Engineers often face grounding reliability and heat management challenges that disrupt uptime and increase maintenance costs. This unit carries CSA, CSA EEV, and UR certifications, ensuring safe electrical integration and regulatory compliance across North American sites. Designed for 60 Hz, 230/460 V operation with a 256TC frame and TEFC enclosure, it provides scalable performance, easier parts sourcing, and lower total cost of ownership. Its 20 HP rating at 3520 rpm delivers robust torque for belt-driven systems, while the 1.63 inch shaft supports straightforward coupler or gear-end integration.
Product Information
Extended Description
7BCEM4106T-G ABB: Shaft Ground 20 Hp 230 V (CEM4106T-G)
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
EGAUT001EXPU
Warranty Return
Product under warranty must be returned
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
GBINS001EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
SGIND004EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
USABB014EXPU
Warranty Return
Product under warranty must be returned
ABB Type Designation
20HP,3520RPM,3PH,60HZ,256TC,TEFC,F1
Ambient Temperature
40 °C
Bearing
6309 | Ball
Bearing NDE
6208 | Ball
Brake Present
No
Brand / Label
Baldor-Reliance
Catalog Number
CEM4106T-G
Certification Agency
CSA | CSA EEV | UR
Country of Origin
United States (US)
Customs Tariff Number
85015220
Dimension Diagram
09LYL284: Dimension Sheet
Drive End Flange Type
C-Face
Duty Time
60 Min
ETIM 7
EC001851 - Electric motor
Efficiency Level
Premium Efficiency (NEMA 12-12)
Electrical Data
Enclosure Type
TEFC
Frame Material
Iron
Frame Size
256
Frequency (f)
60 Hz
Global Commercial Alias
CEM4106T-G
Gross Volume
9651.933 in³
Gross Weight
122.924 kg
IDEA Granular Category Code (IGCC)
1318 >> Heating and cooling system motor AC
Insulation Class
H
Invoice Description
20HP,3520RPM,3PH,60HZ,256TC,TEFC,F1
Made To Order
No
Medium Description
Shaft Ground, 20 HP, 3600 RPM, Frame Size 256Tc, C-Face Mounting, 3 Phase, TEFC Enclosure, 230/460 V, 60 Hz (CEM4106T-G)
Minimum Order Quantity
1 piece
Motor Base Type
Foot Mounted
Motor Frame Size
256TC
Motor Frame Suffix
TC
Mounting Orientation
Horizontal
Mounting Position
F1
NEMA Design Code
A
Number of Phases
3
Number of Poles
2P
Number of Poles (High)
2
Number of Speeds
Single Speed
Order Multiple
1 piece
Output Power
20 Hp
Power Factor
89 %
Product Name
Shaft Ground
Product Net Depth / Length
27 in
Product Net Height
17.438 in
Product Net Weight
122.924 kg
Product Net Width
20.5 in
Product Type
Undefined
Quote Only
No
Rated Current (In)
46 A | 23 A
Rated Efficiency
91 %
Rated Speed
3520 r/min
Selling Unit of Measure
piece
Service Factor
1.15
Shaft Diameter
1.63 in
Shaft Grounding
Shaft Grounding
Short Description
20 HP, 3600 RPM, Frame Size 256Tc, C-Face, 3 PH, TEFC, 230/460 V
Standards
NEMA
Starting of Motor
Direct On Line
Stocked At (Warehouses)
China | Alabama, United States | Alaska, United States
Synchronous Speed (vsyn)
3600 r/min
Type of Duty
Continuous
UNSPSC
26101105
Voltage Rating
230 V | 460 V
Feature: Shaft Ground configuration and robust bearing support. Business Impact: Reduces electrical noise and grounding fault risk, improving equipment safety and reliability in demanding environments. Application: Conveyor lines and pump skids where consistent grounding is critical for sensor accuracy and motor protection. Feature: 256TC frame with TEFC enclosure. Business Impact: Standardized mounting footprint and excellent enclosure protection, enabling quick installation and durable operation in dusty or damp plant floors. Application: Belted drives in packaging or material handling. Feature: Dual voltage 230/460 V and 60 Hz operation. Business Impact: simplifies procurement and site wiring, reduces stock variety, and eases upgrade paths while maintaining high performance. Application: Global facilities with mixed electrical feeds. Feature: Premium Efficiency and NEMA Design A profile. Business Impact: lowers energy costs, reduces heat buildup, and improves overall drive efficiency in continuous duty. Application: Fans, blowers, and centrifuges in process lines. Feature: Direct On Line starting and 3-phase power. Business Impact: simplifies motor control strategies, reduces soft-start requirements, and minimizes installation complexity. Application: Heavy-duty conveyors and mixers with straightforward start-up needs. Feature: 256TC frame, 1.63 in shaft, and C-Face drive end. Business Impact: enables straightforward coupling to standard gearboxes and mechanical interfaces, reducing downtime during maintenance. Application: Any retrofit or new install requiring compatible mechanical integration.
Get a Quick Quote for a ABB 7BCEM4106T-G
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 7BCEM4106T-G?
Enquire Now
FAQs
This motor uses a 256TC frame and TEFC enclosure, designed to mate with standard 256TC couplings and gearboxes. It is foot-mounted, horizontally oriented, with a 1.63 in shaft and C-Face drive end, enabling straightforward retrofit on common conveyors and pumps. Ensure mounting dimensions and shaft alignment match the equipment to avoid misalignment and vibration.
The 7BCEM4106T-G delivers 20 HP at 3520 r/min, 3-phase operation, and 60 Hz with dual voltage 230/460 V. It uses a 256TC frame, TEFC enclosure, and Direct On Line starting. Rated current is 46 A at normal load, or 23 A in lower-voltage configurations, with a premium efficiency profile supporting reduced operating costs.
Yes. The motor carries CSA, CSA EEV, and UR certifications, indicating compliance with recognized electrical safety and performance standards in North America. The TEFC enclosure provides durable protection in exposed industrial environments, while the 60 Hz, 230/460 V configuration supports widespread regulatory and customer-specific requirements.
Shaft Ground design improves grounding reliability, reduces electrical noise, and enhances fault protection in dynamic load conditions. This translates to safer operation, fewer unexpected shutdowns, and easier integration with sensors and drive systems in conveyors, pumps, and fans used in continuous production lines.
The product is actively stocked at multiple warehouses and has 0-day lead times, enabling rapid fulfillment. Warranty terms indicate that products under warranty must be returned, and support is available through ABB-certified channels for installation and maintenance guidance, parts availability, and long-term reliability assessments.
