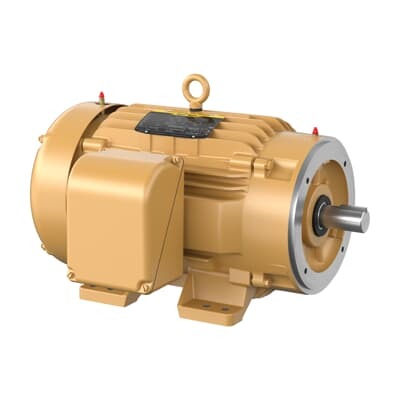

ABB 7BCEM4107T General Purpose Motor - TEFC, 25HP
Part Number: 7BCEM4107T
Quick Summary
ABB 7BCEM4107T General Purpose Motor delivers reliable 25 HP power for industrial fans, pumps, and conveyors. OEMs often wrestle with mismatched duty cycles and long waits for critical spares, leading to costly downtime. This motor is built for resilience, backed by CSA, CSA EEV, and UR certifications, and it achieves Premium Efficiency performance to trim energy costs. With a US origin and stocked at multiple warehouses, it supports faster replacements and easier compliance reporting. The design features a TEFC enclosure, C-face mounting options, and a 284TSC frame that fit standard industrial footprints, enabling straightforward installation and maintenance in high-demand environments.
Product Information
Extended Description
7BCEM4107T ABB: General Purpose Motor 25 Hp 230 V (CEM4107T)
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
EGAUT001EXPU
Warranty Return
Product under warranty must be returned
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
GBINS001EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
SGIND004EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
USABB014EXPU
Warranty Return
Product under warranty must be returned
ABB Type Designation
25HP,3600RPM,3PH,60HZ,284TSC,TEFC,F
Altitude
1000 m
Ambient Temperature
40 °C
Bearing
6311 | Ball
Bearing NDE
6208 | Ball
Brake Present
No
Brand / Label
Baldor-Reliance
Catalog Number
CEM4107T
Certification Agency
CSA | CSA EEV | UR
Country of Origin
United States (US)
Customs Tariff Number
85015230
Design
B
Dimension Diagram
09LYF637: Dimension Sheet
Direction of Rotation
Both sides
Drive End Flange Type
C-Face
Duty Time
60 Min
ETIM 7
EC001851 - Electric motor
Efficiency Level
Premium Efficiency (NEMA 12-12)
Electrical Data
Enclosure Type
TEFC
Frame Material
Iron
Frame Size
284
Frequency (f)
60 Hz
Global Commercial Alias
CEM4107T
Gross Volume
14448.906 in³
Gross Weight
321 lb
Horsepower Rating UL/CSA
25.000 Hp
IC Class
TEFC
IDEA Granular Category Code (IGCC)
1328 >> Multi phase motor AC
IE Class Data (50 Hz)
IE Class NA
IE Class Data (60 Hz)
IE Class NA
IM Class
NEMA Foot with Face
Insulation Class
F
Invoice Description
25HP,3600RPM,3PH,60HZ,284TSC,TEFC,F
Lubrication
Regreasable
Made To Order
No
Medium Description
General Purpose 3PH Enclosed, 25 HP, 3600 RPM, Frame Size 284Tsc, C-Face Mounting, 3 Phase, TEFC Enclosure, 230/460 V, 60 Hz (CEM410
Minimum Order Quantity
1 piece
Motor Base Type
Foot Mounted
Motor Frame Size
284TSC
Motor Frame Suffix
TSC
Mounting Orientation
Horizontal
Mounting Position
F1
NEMA Design Code
A
Number of Phases
3
Number of Poles
2P
Number of Poles (High)
2
Number of Speeds
Single Speed
Order Multiple
1 piece
Output Power
25 Hp
Power Factor
88 %
Product Name
General Purpose 3PH Enclosed
Product Net Depth / Length
31 in
Product Net Height
19.625 in
Product Net Weight
321 lb
Product Net Width
23.75 in
Product Type
NEMA_PREMIUM
Quote Only
No
Rated Current (In)
58 A | 29 A
Rated Efficiency
91.70 %
Rated Speed
3520 r/min
Selling Unit of Measure
piece
Service Factor
1.15
Service Factor Percentage
1.15 %
Shaft Diameter
1.63 in
Short Description
25 HP, 3600 RPM, Frame Size 284Tsc, C-Face, 3 PH, TEFC, 230/460 V
Standards
NEMA
Starting of Motor
Direct On Line
Stocked At (Warehouses)
Menden, Germany | China | Alabama, United States | Alaska, United States
Synchronous Speed (vsyn)
3600 r/min
Temperature Class Default
--
Two Speed Motor
No
Type of Duty
Continuous
UNSPSC
26101115
Voltage Code
H
Voltage Rating
230 V | 460 V
Feature: 25 HP, 3600 RPM at 60 Hz. Business Impact: Delivers robust torque and stable speed for continuous operation, reducing process fluctuations. Application: Ideal for pumps, fans, and conveyors in process and manufacturing facilities. Feature: TEFC enclosure with 284TSC frame and 1.63 inch shaft. Business Impact: Enhanced protection against dust and moisture and straightforward mounting, simplifying installation and reducing retrofit costs. Application: Suitable for harsh factory floors and outdoor installations where enclosure integrity matters. Feature: Premium Efficiency (≈91.70%) and Service Factor 1.15. Business Impact: Lower energy consumption and improved motor longevity, contributing to lower total cost of ownership. Application: High-duty cycles in continuous operations such as HVAC systems and material handling. Feature: Dual-voltage, 230 V / 460 V 3-phase and 60 Hz rating. Business Impact: Flexible worldwide compatibility and simplified stocking, enabling quick deployment on international projects. Application: Global installations andOEM projects requiring standard industrial power. Feature: Regreasable bearings (6311 / 6208) and F insulation class. Business Impact: Longer bearing life and better thermal performance for reliable uptime in temperature up to 40 °C, with predictable maintenance intervals. Application: Heavy-duty fans, pumps, and conveyors in mixed-temperature environments. Feature: Direct On Line starting and C-face/mounting orientation. Business Impact: Immediate startup capability with minimal controls, reducing panel complexity and installation time. Application: Ready-to-run installations in new builds and retrofits where simple commissioning matters.
Get a Quick Quote for a ABB 7BCEM4107T
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 7BCEM4107T?
Enquire Now
FAQs
For new installations, select a compatible mounting arrangement (foot-mounted or C-face) that aligns with the 284TSC frame. Ensure proper shaft alignment and coupling to minimize vibration. The TEFC enclosure protects against dust and moisture, and the 1.63 in shaft diameter supports standard couplings. With DOL starting, verify electrical protections and momentary inrush handling, and plan for straightforward commissioning and maintenance.
This is a 3-phase motor rated for 60 Hz with dual voltage options of 230 V or 460 V. It delivers 25 HP with a rated speed of 3600 r/min (synchronous), and 3520 r/min under load. Rated current is approximately 58 A at 230 V and 29 A at 460 V. It supports Direct On Line starting and has a service factor of 1.15 for occasional overload tolerance.
Yes. The ABB 7BCEM4107T carries CSA, CSA EEV, and UR certifications, ensuring regulatory compliance in North American markets. It is designed for Premium Efficiency, aligning with energy performance expectations and helping reduce operating costs over the motor’s service life.
Best suited for continuous-duty drives such as pumps, fans, and conveyors in manufacturing or process plants. The TEFC enclosure and 284TSC frame support rugged industrial environments, with a C-face mounting option for flexible installation. Its 40 °C ambient rating and robust bearings (6311 / 6208) contribute to reliable performance in challenging facilities.
Maintenance is streamlined by features like regreasable bearings and a robust TEFC design, which reduces service interruptions. The motor’s Premium Efficiency rating lowers energy costs, improving return on investment over time. With stock available across multiple warehouses and a 0-day lead time, downtime for replacements is minimized, supporting faster project timelines and reduced total cost of ownership.
