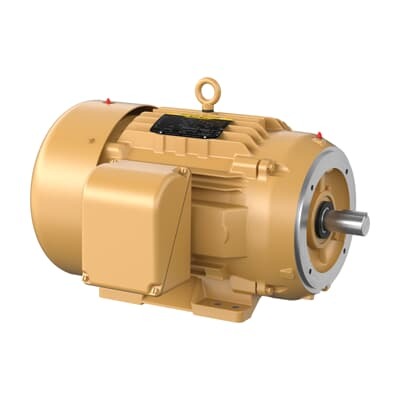

ABB 7BCEM4108T General Purpose 3PH Enclosed - NEMA Premium
Part Number: 7BCEM4108T
Quick Summary
General Purpose motor drives industrial conveyors, pumps, and fans with reliable 30 HP power. Many operations face voltage mismatches, mounting compatibility issues, and long lead times when upgrading motors. The ABB 7BCEM4108T delivers CSA and UR certified performance along with NEMA Premium efficiency, helping you meet regulatory expectations while reducing energy costs. With dual voltage 230/460 V, a TEFC enclosure, and a 286TSC frame, installation is straightforward across multiple sites. This motor also supports continuous duty in moderate temperatures, making it a practical choice for OEMs and end users seeking dependable, cost-effective drive solutions. Its robust bearings and regreasable lubrication simplify maintenance, boosting uptime and lifecycle value.
Product Information
Extended Description
7BCEM4108T ABB: General Purpose Motor 30 Hp 230 V (CEM4108T)
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
EGAUT001EXPU
Warranty Return
Product under warranty must be returned
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
GBINS001EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
SGIND004EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
USABB014EXPU
Warranty Return
Product under warranty must be returned
ABB Type Designation
30HP,3525RPM,3PH,60HZ,286TSC,1048M,
Altitude
1000 m
Ambient Temperature
40 °C
Bearing
6311 | Ball
Bearing NDE
6309 | Ball
Brake Present
No
Brand / Label
Baldor-Reliance
Catalog Number
CEM4108T
Certification Agency
CSA | CSA EEV | UR
Country of Origin
United States (US)
Customs Tariff Number
85015230
Design
B
Dimension Diagram
10LYE346: Dimension Sheet
Direction of Rotation
Both sides
Drive End Flange Type
C-Face
Duty Time
60 Min
ETIM 7
EC001851 - Electric motor
Efficiency Level
Premium Efficiency (NEMA 12-12)
Electrical Data
Enclosure Type
TEFC
Frame Material
Iron
Frame Size
286
Frequency (f)
60 Hz
Global Commercial Alias
CEM4108T
Gross Volume
14448.906 in³
Gross Weight
389 lb
Horsepower Rating UL/CSA
30.000 Hp
IC Class
TEFC
IDEA Granular Category Code (IGCC)
1325 >> General purpose motor AC
IE Class Data (50 Hz)
IE Class NA
IE Class Data (60 Hz)
IE Class NA
IM Class
NEMA Foot with Face
Insulation Class
F
Invoice Description
30HP,3525RPM,3PH,60HZ,286TSC,1048M,TEFC
Lubrication
Regreasable
Made To Order
No
Medium Description
General Purpose 3PH Enclosed, 30 HP, 3600 RPM, Frame Size 286Tsc, C-Face Mounting, 3 Phase, TEFC Enclosure, 230/460 V, 60 Hz (CEM410
Minimum Order Quantity
1 piece
Motor Base Type
Foot Mounted
Motor Frame Size
286TSC
Motor Frame Suffix
TSC
Mounting Orientation
Horizontal
Mounting Position
F1
NEMA Design Code
B
Number of Phases
3
Number of Poles
2P
Number of Poles (High)
2
Number of Speeds
Single Speed
Order Multiple
1 piece
Output Power
30 Hp
Power Factor
90 %
Product Name
General Purpose 3PH Enclosed
Product Net Depth / Length
31 in
Product Net Height
19.625 in
Product Net Weight
389 lb
Product Net Width
23.75 in
Product Type
NEMA_PREMIUM
Quote Only
No
Rated Current (In)
68 A | 34 A
Rated Efficiency
91.70 %
Rated Speed
3525 r/min
Selling Unit of Measure
piece
Service Factor
1.15
Service Factor Percentage
1.15 %
Shaft Diameter
1.63 in
Short Description
30 HP, 3600 RPM, Frame Size 286Tsc, C-Face, 3 PH, TEFC, 230/460 V
Standards
NEMA
Starting of Motor
Direct On Line
Stocked At (Warehouses)
Menden, Germany | China | Alabama, United States | Alaska, United States
Synchronous Speed (vsyn)
3600 r/min
Temperature Class Default
--
Two Speed Motor
No
Type of Duty
Continuous
UNSPSC
26101112
Voltage Code
G
Voltage Rating
230 V | 460 V
Feature: TEFC enclosure provides superior protection against dust, moisture, and contaminants in harsh industrial environments. Benefit: Improves reliability and reduces unplanned downtime, enabling consistent operation of conveyors, pumps, and fans. Application: Suitable for outdoor or dirty plant floors where ingress protection matters. Feature: Dual voltage design with 230/460 V capability. Benefit: Flexible installation across sites with varying electrical supplies, lowering wiring costs and stocking requirements. Application: Ideal for multinational facilities and retrofit projects. Feature: 30 HP, 3525 rpm (60 Hz), 2P, 3-phase output. Benefit: High starting torque and efficient performance for demanding drives, improving process control and throughput. Application: Drives centrifugal pumps and belt-driven systems with stable speed. Feature: Frame 286TSC, C-face mounting, foot-mounted base. Benefit: Easy alignment and mounting in existing gearboxes and belts, reducing installation time. Application: OEM integrations and retrofit upgrades. Feature: Regreasable bearings (6311) and insulation class F. Benefit: Longer bearing life and improved insulation resilience under temperature swings, lowering maintenance costs. Application: Continuous operation in moderate ambient conditions. Feature: NEMA Premium efficiency with high operating efficiency (≈91.7%). Benefit: Lower energy consumption and lower running costs, supporting sustainability targets. Application: Energy-conscious manufacturing and process industries. Feature: Direct On Line starting and 60 Hz, 230/460 V options. Benefit: Simple drive solution with robust startup performance, minimizing drive complexity. Application: Factory floors requiring dependable, low-maintenance drives. Feature: Stocked at multiple warehouses; 0 day lead time. Benefit: Short lead times and rapid deployment, reducing downtime in plant start-ups. Application: Global OEM supply chains and service operations.
Get a Quick Quote for a ABB 7BCEM4108T
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 7BCEM4108T?
Enquire Now
FAQs
This is a 3-phase motor rated for direct-on-line starting at 60 Hz with a dual voltage 230/460 V. While it can be driven by a VFD, users should select a drive rated for startup current and motor protection compatible with a 30 HP, 2-pole machine. Proper cooling and control wiring are essential, and a soft-start program can help reduce inrush and electrical noise.
Key specs include 30 horsepower, 3525 rpm at 60 Hz (2P), dual voltage 230 V | 460 V, rated current 68 A / 34 A, TEFC enclosure, insulation class F, and frame size 286TSC. It is designed for continuous duty with a service factor of 1.15 and a 60-minute duty rating, suitable for many general purpose industrial applications.
Yes. The motor features TEFC protection and insulation class F for moderate temperature operation up to 40 °C, with continuous duty suitability. Its 1.15 service factor and regreasable bearings enhance uptime in demanding environments such as conveyors, pumps, and fans in manufacturing settings.
This motor is certified by CSA and UR, with CSA EEV recognized, and adheres to NEMA standards. It also carries NEMA Premium efficiency designation, supporting energy compliance and lower operating costs across US and international installations.
Lead time is stated as 0 day, with stock available at multiple warehouses (EGAUT001EXPU, GBINS001EXPU, SGIND004EXPU, USABB014EXPU). This enables rapid deployment across regional sites, minimizing downtime during upgrades or replacements.
