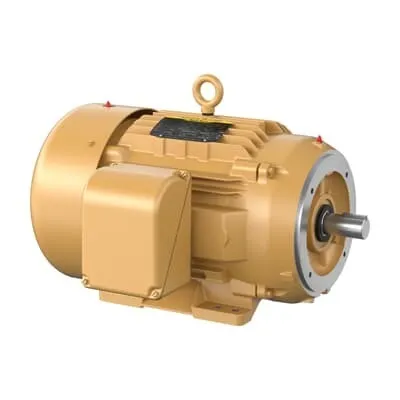

ABB 7BCEM4108T-G Shaft Ground Motor - 30HP, 60Hz NEMA B
Part Number: 7BCEM4108T-G
Quick Summary
Shaft Ground motor from ABB delivers 30 HP for demanding industrial drives such as conveyors and pumps. This size and grounding strategy reduces downtime associated with mis-sized motors and grounding faults. Certifications include CSA, CSA EEV, and UR, with NEMA design B and a TEFC enclosure ensuring compliance in US plants. Designed for compatibility with dual voltage 230/460 V, 60 Hz systems, it supports quick procurement and reliable uptime across your automation line. Its 286TSC frame, TEFC enclosure, and 2P pole design align with common mechanical layouts, enabling straightforward retrofits and reduced engineering time. The 91.70 percent efficiency, service factor of 1.15, and shaft grounding strategy support energy savings and longer bearing life in continuous-duty applications.
Product Information
Extended Description
7BCEM4108T-G ABB: Shaft Ground 30 Hp 230 V (CEM4108T-G)
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
EGAUT001EXPU
Warranty Return
Product under warranty must be returned
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
GBINS001EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
SGIND004EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
USABB014EXPU
Warranty Return
Product under warranty must be returned
ABB Type Designation
30HP,3525RPM,3PH,60HZ,286TSC,TEFC,F
Ambient Temperature
40 °C
Bearing
6311 | Ball
Bearing NDE
6309 | Ball
Brake Present
No
Brand / Label
Baldor-Reliance
Catalog Number
CEM4108T-G
Certification Agency
CSA | CSA EEV | UR
Country of Origin
United States (US)
Customs Tariff Number
85015230
Dimension Diagram
10LYJ281: Dimension Sheet
Drive End Flange Type
C-Face
Duty Time
60 Min
ETIM 7
EC001851 - Electric motor
Efficiency Level
Premium Efficiency (NEMA 12-12)
Electrical Data
Enclosure Type
TEFC
Frame Material
Iron
Frame Size
286
Frequency (f)
60 Hz
Global Commercial Alias
CEM4108T-G
Gross Volume
15876 in³
Gross Weight
419 lb
IDEA Granular Category Code (IGCC)
1318 >> Heating and cooling system motor AC
Insulation Class
H
Invoice Description
30HP,3525RPM,3PH,60HZ,286TSC,TEFC,F1
Made To Order
No
Medium Description
Shaft Ground, 30 HP, 3600 RPM, Frame Size 286Tsc, C-Face Mounting, 3 Phase, TEFC Enclosure, 230/460 V, 60 Hz (CEM4108T-G)
Minimum Order Quantity
1 piece
Motor Base Type
Foot Mounted
Motor Frame Size
286TSC
Motor Frame Suffix
TSC
Mounting Orientation
Horizontal
Mounting Position
F1
NEMA Design Code
B
Number of Phases
3
Number of Poles
2P
Number of Poles (High)
2
Number of Speeds
Single Speed
Order Multiple
1 piece
Output Power
30 Hp
Power Factor
90 %
Product Name
Shaft Ground
Product Net Depth / Length
31.5 in
Product Net Height
21 in
Product Net Weight
419 lb
Product Net Width
24 in
Product Type
Undefined
Quote Only
No
Rated Current (In)
68 A | 34 A
Rated Efficiency
91.70 %
Rated Speed
3525 r/min
Replaced Product ID (OLD)
7B10-0000588
Selling Unit of Measure
piece
Service Factor
1.15
Shaft Diameter
1.63 in
Shaft Grounding
Shaft Grounding
Short Description
30 HP, 3600 RPM, Frame Size 286Tsc, C-Face, 3 PH, TEFC, 230/460 V
Standards
NEMA
Starting of Motor
Direct On Line
Stocked At (Warehouses)
China | Alabama, United States | Alaska, United States
Synchronous Speed (vsyn)
3600 r/min
Type of Duty
Continuous
UNSPSC
26101105
Voltage Rating
230 V | 460 V
Feature to Business Impact to Application: The motor provides dual voltage capability of 230/460 V at 60 Hz, enabling flexible deployment across multiple facilities and minimizing site-specific electrical rework; this translates to reduced commissioning time and lower total cost of ownership when powering conveyors, pumps, and machine tools. The TEFC enclosure and NEMA B design protect internal components from dust and moisture, extending mean time between maintenance events and improving reliability in harsh factory environments, such as material handling lines and process machines. The 286TSC frame with C-Face drive-end flange and foot mounting enables straightforward installation on standard bases, reducing mounting adaptation work and enabling quick retrofits for existing gearboxes and reducers. With a 30 HP rating and a 2P 4-pole configuration, the motor delivers consistent torque for continuous-duty applications, supporting stable production throughput in line conveyors and packaging equipment. Efficiency at 91.70% and a service factor of 1.15 deliver measurable energy savings and headroom for short-term overloads, lowering energy costs and improving system reliability in high-duty cycles. Shaft grounding reduces bearing wear and electrical noise, improving bearing life and reducing maintenance intervals in fans, pumps, and cooling systems. Certifications including CSA, CSA EEV, and UR offer procurement confidence and regulatory compliance for US manufacturing environments, while stock availability and US-based warehouses support fast project starts and minimized downtime for critical line upgrades.
Get a Quick Quote for a ABB 7BCEM4108T-G
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 7BCEM4108T-G?
Enquire Now
FAQs
This motor features foot mounting with horizontal orientation and a C-Face drive end flange, combined with a TEFC enclosure for rugged environments. It aligns with standard 286TSC frames, enabling straightforward retrofits to most conveyor and pump assemblies without extensive modification.
The 7BCEM4108T-G is a 3‑phase motor rated for 230/460 V at 60 Hz, delivering 30 HP with an efficiency of 91.70% and a service factor of 1.15. It is designed for continuous duty, making it suitable for long-running applications like conveyors and cooling fans.
Yes. With a continuous-duty rating, a 2P/4-pole configuration, and a robust TEFC enclosure, this motor provides reliable torque and endurance for conveyor systems, while shaft grounding helps extend bearing life in demanding production environments.
The motor carries CSA, CSA EEV, and UR certifications, along with compliance to NEMA design standards. These approvals help satisfy regulatory procurement requirements in US facilities and support safer, auditable installations.
Lead time is listed as 0 day, with multiple stock locations including US warehouses. This arrangement supports fast fulfillment for urgent projects and minimizes downtime when replacing or upgrading motors in critical lines.
