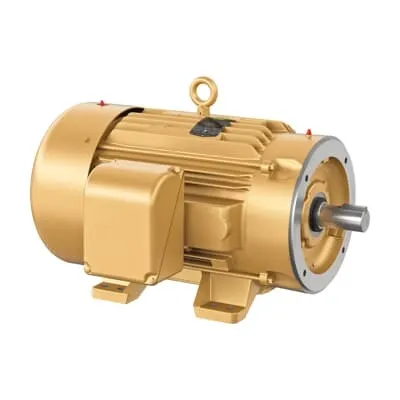

ABB 7BCEM4109T General Purpose Motor - TEFC 40HP
Part Number: 7BCEM4109T
Quick Summary
General Purpose Motor 7BCEM4109T by ABB delivers reliable 40 HP performance for three‑phase industrial drives. Engineers need a replacement that minimizes downtime and fits existing footprints, not a reengineering project. This model meets IE3 premium efficiency and NEMA Premium standards, with CSA and UR certifications ensuring global compliance. Its footprint includes a 324TSC frame, C‑Face mounting, and TEFC enclosure, making installation straightforward in current equipment. The balanced combination of efficiency, reliability, and compatibility translates into lower energy costs, easier sourcing, and faster maintenance cycles for processors, pumps, fans, and conveyors. Designed for continuous operation, it supports 60 Hz service and 230/460 V networks, reducing integration risk across facilities.
Product Information
Extended Description
7BCEM4109T ABB: General Purpose Motor 40 Hp 230 V (CEM4109T)
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
EGAUT001EXPU
Warranty Return
Product under warranty must be returned
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
GBINS001EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
SGIND004EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
USABB014EXPU
Warranty Return
Product under warranty must be returned
ABB Type Designation
40HP,3530RPM,3PH,60HZ,324TSC,1058M,
Altitude
1000 m
Ambient Temperature
40 °C
Bearing
6312 | Ball
Bearing NDE
6309 | Ball
Brake Present
No
Brand / Label
Baldor-Reliance
Catalog Number
CEM4109T
Certification Agency
CSA | CSA EEV | UR
Country of Origin
United States (US)
Customs Tariff Number
85015230
Design
B
Dimension Diagram
10LYF423: Dimension Sheet
Direction of Rotation
Both sides
Drive End Flange Type
C-Face
Duty Time
60 Min
ETIM 7
EC001851 - Electric motor
Efficiency Level
IE3 | Not Regulated / Exempt | Premium Efficiency (NEMA 12-12)
Electrical Data
Enclosure Type
TEFC
Frame Material
Iron
Frame Size
324
Frequency (f)
60 Hz
Global Commercial Alias
CEM4109T
Gross Volume
18748.226 inÂł
Gross Weight
600 lb
Horsepower Rating UL/CSA
40.000 Hp
IC Class
TEFC
IDEA Granular Category Code (IGCC)
1328 >> Multi phase motor AC
IE Class Data (50 Hz)
IE Class NA
IE Class Data (60 Hz)
IE Class NA
IM Class
NEMA Foot with Face
Insulation Class
F
Invoice Description
40HP,3530RPM,3PH,60HZ,324TSC,1058M,TEFC
Lubrication
Regreasable
Made To Order
No
Medium Description
General Purpose 3PH Enclosed, 40 HP, 3600 RPM, Frame Size 324Tsc, C-Face Mounting, 3 Phase, TEFC Enclosure, 230/460 V, 60 Hz (CEM410
Minimum Order Quantity
1 piece
Motor Base Type
Foot Mounted
Motor Frame Size
324TSC
Motor Frame Suffix
TSC
Mounting Orientation
Horizontal
Mounting Position
F1
NEMA Design Code
A
Number of Phases
3
Number of Poles
2P
Number of Poles (High)
2
Number of Speeds
Single Speed
Order Multiple
1 piece
Output Power
40 Hp
Power Factor
90 %
Product Name
General Purpose 3PH Enclosed
Product Net Depth / Length
33.75 in
Product Net Height
21.625 in
Product Net Weight
600 lb
Product Net Width
25.688 in
Product Type
NEMA_PREMIUM
Quote Only
No
Rated Current (In)
90 A | 45 A
Rated Efficiency
92.40 %
Rated Speed
3530 r/min
Selling Unit of Measure
piece
Service Factor
1.15
Service Factor Percentage
1.15 %
Shaft Diameter
1.88 in
Short Description
40 HP, 3600 RPM, Frame Size 324Tsc, C-Face, 3 PH, TEFC, 230/460 V
Standards
NEMA
Starting of Motor
Direct On Line
Stocked At (Warehouses)
Menden, Germany | China | Alabama, United States | Alaska, United States
Synchronous Speed (vsyn)
3600 r/min
Temperature Class Default
--
Two Speed Motor
No
Type of Duty
Continuous
UNSPSC
26101115
Voltage Code
G
Voltage Rating
230 V | 460 V
The motor features a 40 HP output with a rated speed of 3530 r/min at 60 Hz, delivering consistent torque for continuous duty across pumps, fans, and conveyors. The business impact is clear: higher efficiency reduces energy bills while IE3 and NEMA Premium compliance help meet sustainability and procurement targets, lowering total cost of ownership. In practical applications, the TEFC enclosure protects critical windings in demanding environments, while C-Face mounting and 324TSC frame simplify retrofits and new installations in existing footprints. Foot-mounted design and a 1.88 inch shaft diameter improve alignment with standard couplings and gearboxes, enabling faster installation and reduced commissioning time. Built for reliability, bearings (6312 Ball) and insulation class F support long service intervals, while a direct-on-line start minimizes electrical complexity during startup. This combination translates to lower maintenance costs and improved uptime across industrial automation workflows.
