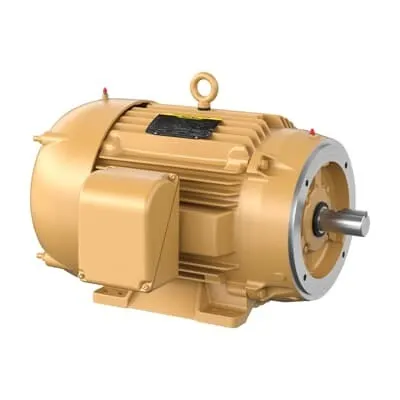

ABB 7BCEM4109T-G Shaft Ground Motor - 40HP TEFC
Part Number: 7BCEM4109T-G
Quick Summary
Shaft Ground motor from ABB provides robust 40 HP drive for industrial conveyors, pumps, and processing lines. It addresses grounding reliability, reducing shaft voltage risks that cause downtime and bearing wear. The design carries CSA, CSA EEV, and UR safety certifications and is built to NEMA performance expectations with a TEFC enclosure for harsh environments. Operating at 230/460 V, 3-phase, and 60 Hz, it supports a wide facility voltage footprint while maintaining high efficiency. This combination drives uptime, predictable maintenance planning, and lower lifecycle costs, delivering measurable value for manufacturing, packaging, and material-handling workflows.
Product Information
Extended Description
7BCEM4109T-G ABB: Shaft Ground 40 Hp 230 V (CEM4109T-G)
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
EGAUT001EXPU
Warranty Return
Product under warranty must be returned
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
GBINS001EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
SGIND004EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
USABB014EXPU
Warranty Return
Product under warranty must be returned
ABB Type Designation
40HP,3530RPM,3PH,60HZ,324TSC,TEFC,F
Ambient Temperature
40 °C
Bearing
6312 | Ball
Bearing NDE
6311 | Ball
Brake Present
No
Brand / Label
Baldor-Reliance
Catalog Number
CEM4109T-G
Certification Agency
CSA | CSA EEV | UR
Country of Origin
United States (US)
Customs Tariff Number
85015230
Dimension Diagram
12LYG381
Drive End Flange Type
C-Face
Duty Time
60 Min
ETIM 7
EC001851 - Electric motor
Efficiency Level
Premium Efficiency (NEMA 12-12)
Electrical Data
Enclosure Type
TEFC
Frame Material
Iron
Frame Size
324
Frequency (f)
60 Hz
Global Commercial Alias
CEM4109T-G
Gross Volume
18748.226 in³
Gross Weight
532 lb
IDEA Granular Category Code (IGCC)
1318 >> Heating and cooling system motor AC
Insulation Class
H
Invoice Description
40HP,3530RPM,3PH,60HZ,324TSC,TEFC,F1
Made To Order
No
Medium Description
Shaft Ground, 40 HP, 3600 RPM, Frame Size 324Tsc, C-Face Mounting, 3 Phase, TEFC Enclosure, 230/460 V, 60 Hz (CEM4109T-G)
Minimum Order Quantity
1 piece
Motor Base Type
Foot Mounted
Motor Frame Size
324TSC
Motor Frame Suffix
TSC
Mounting Orientation
Horizontal
Mounting Position
F1
NEMA Design Code
B
Number of Phases
3
Number of Poles
2P
Number of Poles (High)
2
Number of Speeds
Single Speed
Order Multiple
1 piece
Output Power
40 Hp
Power Factor
91 %
Product Name
Shaft Ground
Product Net Depth / Length
33.75 in
Product Net Height
21.625 in
Product Net Weight
532 lb
Product Net Width
25.688 in
Product Type
Undefined
Quote Only
No
Rated Current (In)
88 A | 44 A
Rated Efficiency
92.40 %
Rated Speed
3530 r/min
Replaced Product ID (OLD)
7B12-0000589
Selling Unit of Measure
piece
Service Factor
1.15
Shaft Diameter
1.88 in
Shaft Grounding
Shaft Grounding
Short Description
40 HP, 3600 RPM, Frame Size 324Tsc, C-Face, 3 PH, TEFC, 230/460 V
Standards
NEMA
Starting of Motor
Direct On Line
Stocked At (Warehouses)
China | Alabama, United States | Alaska, United States
Synchronous Speed (vsyn)
3600 r/min
Type of Duty
Continuous
UNSPSC
26101105
Voltage Rating
230 V | 460 V
Feature → Business Impact → Application: Shaft Ground design provides enhanced electrical safety by grounding the shaft, reducing shaft voltage and bearing wear, which translates to lower maintenance and longer motor life for continuous-duty lines such as conveyors and pumps. Feature → Compatibility → Application: 324TSC frame with C-Face mounting and TEFC enclosure ensures straightforward installation and reliable sealing in dirty or harsh environments, minimizing retrofit costs in existing plant layouts. Feature → Efficiency → Application: Premium Efficiency (NEMA 12-12) and 92.40% rated efficiency deliver energy savings on long-running processes, supporting cost-per-ton reductions in packaging lines and material handling. Feature → Voltage & Power → Application: Dual voltage 230/460 V, 3-phase, 60 Hz, 40 HP delivers flexible deployment across facilities with varying electrical infrastructure, easing procurement and spare-part planning. Feature → Starting & Duty → Application: Direct On Line starting and Continuous duty rating provide simple startup and steady performance for fans and pumps in manufacturing environments. Feature → Mechanical Fit → Application: Foot Mounted with 324TSC frame and 1.88 in shaft diameter aligns with standard OEM baselines, reducing custom machining and downtime during installation.
