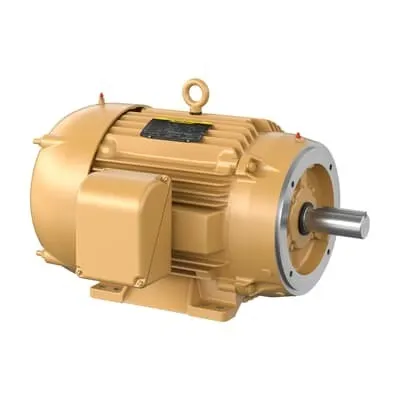

ABB 7BCEM4111T-G Shaft Ground 25HP - CSA/UR
Part Number: 7BCEM4111T-G
Quick Summary
Shaft Ground 25 HP motor is designed for reliable industrial drives in heavy equipment. Engineers often wrestle with mounting fit, space constraints, and downtime; this model addresses those by offering a compact TEFC package and robust bearings. It carries CSA, CSA EEV, and UR listings, ensuring regulatory compliance in North American markets while aligning with relevant NEMA guidelines. With 60 Hz operation and versatile 230/460 V supply, it enables scalable, energy-efficient upgrades across plants while supporting premium efficiency expectations.
Product Information
Extended Description
7BCEM4111T-G ABB: Shaft Ground 25 Hp 230 V (CEM4111T-G)
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
EGAUT001EXPU
Warranty Return
Product under warranty must be returned
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
GBINS001EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
SGIND004EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
USABB014EXPU
Warranty Return
Product under warranty must be returned
ABB Type Designation
25HP,1180RPM,3PH,60HZ,324TC,TEFC,F1
Ambient Temperature
40 °C
Bearing
6312 | Ball
Bearing NDE
6311 | Ball
Brake Present
No
Brand / Label
Baldor-Reliance
Catalog Number
CEM4111T-G
Certification Agency
CSA | CSA EEV | UR
Country of Origin
United States (US)
Customs Tariff Number
85015230
Dimension Diagram
12LYH471: Dimension Sheet
Drive End Flange Type
C-Face
Duty Time
60 Min
ETIM 7
EC001851 - Electric motor
Efficiency Level
Premium Efficiency (NEMA 12-12)
Electrical Data
Enclosure Type
TEFC
Frame Material
Iron
Frame Size
324
Frequency (f)
60 Hz
Global Commercial Alias
CEM4111T-G
Gross Volume
18748.226 in³
Gross Weight
507 lb
IDEA Granular Category Code (IGCC)
1318 >> Heating and cooling system motor AC
Insulation Class
H
Invoice Description
25HP,1180RPM,3PH,60HZ,324TC,TEFC,F1
Made To Order
No
Medium Description
Shaft Ground, 25 HP, 1200 RPM, Frame Size 324Tc, C-Face Mounting, 3 Phase, TEFC Enclosure, 230/460 V, 60 Hz (CEM4111T-G)
Minimum Order Quantity
1 piece
Motor Base Type
Foot Mounted
Motor Frame Size
324TC
Motor Frame Suffix
TC
Mounting Orientation
Horizontal
Mounting Position
F1
NEMA Design Code
A
Number of Phases
3
Number of Poles
6P
Number of Poles (High)
6
Number of Speeds
Single Speed
Order Multiple
1 piece
Output Power
25 Hp
Power Factor
79 %
Product Name
Shaft Ground
Product Net Depth / Length
33.75 in
Product Net Height
21.625 in
Product Net Weight
507 lb
Product Net Width
25.688 in
Product Type
Undefined
Quote Only
No
Rated Current (In)
63 A | 32 A
Rated Efficiency
93 %
Rated Speed
1180 r/min
Replaced Product ID (OLD)
7B12-0000-1537
Selling Unit of Measure
piece
Service Factor
1.15
Shaft Diameter
2.13 in
Shaft Grounding
Shaft Grounding
Short Description
25 HP, 1200 RPM, Frame Size 324Tc, C-Face, 3 PH, TEFC, 230/460 V
Standards
NEMA
Starting of Motor
Direct On Line
Stocked At (Warehouses)
China | Alabama, United States | Alaska, United States
Synchronous Speed (vsyn)
1200 r/min
Type of Duty
Continuous
UNSPSC
26101105
Voltage Rating
230 V | 460 V
The motor delivers a 25 HP output at 1180 rpm in a 324TC frame, housed in a robust TEFC enclosure. This feature provides reliable torque and improved protection against dust and moisture, reducing maintenance cycles and downtime in conveyors, pumps, and fans. The dual voltage capability of 230/460 V at 60 Hz offers installation flexibility, simplifying wiring configurations and reducing stocking costs for mixed-power facilities. With a 93% rated efficiency and a 1.15 service factor, the drive delivers meaningful energy savings and a greater margin for peak-load scenarios for continuous-duty operations, including material handling and processing lines. The direct-on-line starting enables simple control schemes and fast acceleration, minimizing start-up time and potential process interruptions. A heavy-duty bearing set (6312) and insulation class H support extended life in demanding environments, while the 2.13 in shaft diameter and C-Face mounting with 324TC/TC suffix ensure compatibility with common motors and gearbox interfaces in industrial plants. Overall, this shaft-ground solution pairs NEMA-aligned design with reliable Baldor-Reliance heritage for easy installation and proven performance in US facilities, especially where premium efficiency and regulatory compliance drive ROI.
Get a Quick Quote for a ABB 7BCEM4111T-G
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 7BCEM4111T-G?
Enquire Now
FAQs
This motor is designed for dual voltage operation of 230V or 460V in a 3-phase 60 Hz system. Its 324TC frame and C-Face mounting simplify alignment with standard frames and gearboxes, while the TEFC enclosure provides rugged protection for harsh plant environments. Ensure suitable wiring and protective devices are in place for safe startup.
Expect 25 HP output at 1180 rpm with a 1.15 service factor, 93% efficiency, and a direct-on-line start. The 324TC frame and 2.13 in shaft diameter support reliable coupling to standard conveyors, while the 60 Hz operation maintains consistent speed control and torque across load variations.
Yes. The motor carries CSA, CSA EEV, and UR listings, aligning with North American electrical safety and energy compliance. It follows NEMA design guidelines and is built for durable, long-life service in industrial environments, making it suitable for regulated facilities and traceable maintenance programs.
Maintenance is simplified by the TEFC enclosure and robust bearings (6312). The motor’s premium efficiency reduces energy costs, while the durable frame and insulation class H support extended intervals between servicing. ROI is driven by lower energy usage, reduced downtime, and longer motor life in continuous-duty applications such as pumps and mixers.
Ideal for continuous-duty, high-torque loads in US plants— conveyors, fans, pumps, and processing equipment. The C-Face mounting and horizontal orientation support straightforward installation in existing line layouts, while dual voltage capability accommodates diverse plant electrical distributions.
