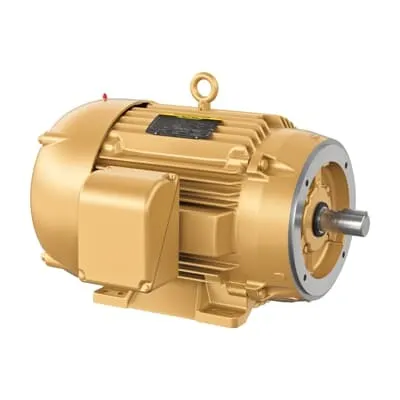

ABB 7BCEM4114T General Purpose Motor - TEFC IE3
Part Number: 7BCEM4114T
Quick Summary
ABB 7BCEM4114T is a general purpose motor delivering 50 HP for continuous-duty industrial drives. Users often contend with mismatched voltage, downtime, and maintenance complexity, which this model helps address with versatile 230/460 V operation and a rugged TEFC enclosure. This unit carries CSA, CSA EEV, and UR certifications, reinforcing safety, energy compliance, and traceability across diverse facilities. Coupled with a 326TSC frame and premium efficiency, it helps reduce energy costs, streamline spare-part stocking, and simplify integration with automation systems, making it a reliable choice for modern manufacturing and processing environments.
Product Information
Extended Description
7BCEM4114T ABB: General Purpose Motor 50 Hp 230 V (CEM4114T)
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
EGAUT001EXPU
Warranty Return
Product under warranty must be returned
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
GBINS001EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
SGIND004EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
USABB014EXPU
Warranty Return
Product under warranty must be returned
ABB Type Designation
50HP,3540RPM,3PH,60HZ,326TSC,1252M,
Altitude
1000 m
Ambient Temperature
40 °C
Bearing
6312 | Ball
Bearing NDE
6311 | Ball
Brake Present
No
Brand / Label
Baldor-Reliance
Catalog Number
CEM4114T
Certification Agency
CSA | CSA EEV | UR
Country of Origin
United States (US)
Customs Tariff Number
85015230
Design
A
Dimension Diagram
12LYH041: Dimension Sheet
Direction of Rotation
Both sides
Drive End Flange Type
C-Face
Duty Time
60 Min
ETIM 7
EC001851 - Electric motor
Efficiency Level
IE3 | Not Regulated / Exempt | Premium Efficiency (NEMA 12-12)
Electrical Data
Enclosure Type
TEFC
Frame Material
Iron
Frame Size
326
Frequency (f)
60 Hz
Global Commercial Alias
CEM4114T
Gross Volume
18748.226 in³
Gross Weight
591 lb
Horsepower Rating UL/CSA
50.000 Hp
IC Class
TEFC
IDEA Granular Category Code (IGCC)
1328 >> Multi phase motor AC
IE Class Data (50 Hz)
IE Class NA
IE Class Data (60 Hz)
IE Class NA
IM Class
NEMA Foot with Face
Insulation Class
F
Invoice Description
50HP,3540RPM,3PH,60HZ,326TSC,1252M,TEFC
Lubrication
Regreasable
Made To Order
No
Medium Description
General Purpose 3PH Enclosed, 50 HP, 3600 RPM, Frame Size 326Tsc, C-Face Mounting, 3 Phase, TEFC Enclosure, 230/460 V, 60 Hz (CEM411
Minimum Order Quantity
1 piece
Motor Base Type
Foot Mounted
Motor Frame Size
326TSC
Motor Frame Suffix
TSC
Mounting Orientation
Horizontal
Mounting Position
F1
NEMA Design Code
A
Number of Phases
3
Number of Poles
2P
Number of Poles (High)
2
Number of Speeds
Single Speed
Order Multiple
1 piece
Output Power
50 Hp
Power Factor
90 %
Product Name
General Purpose 3PH Enclosed
Product Net Depth / Length
33.75 in
Product Net Height
21.625 in
Product Net Weight
591 lb
Product Net Width
25.688 in
Product Type
NEMA_PREMIUM
Quote Only
No
Rated Current (In)
112 A | 56 A
Rated Efficiency
93 %
Rated Speed
3540 r/min
Selling Unit of Measure
piece
Service Factor
1.15
Service Factor Percentage
1.15 %
Shaft Diameter
1.88 in
Short Description
50 HP, 3600 RPM, Frame Size 326Tsc, C-Face, 3 PH, TEFC, 230/460 V
Standards
NEMA
Starting of Motor
Direct On Line
Stocked At (Warehouses)
Menden, Germany | China | Alabama, United States | Alaska, United States
Synchronous Speed (vsyn)
3600 r/min
Temperature Class Default
--
Two Speed Motor
No
Type of Duty
Continuous
UNSPSC
26101115
Voltage Code
H
Voltage Rating
230 V | 460 V
Feature → Business Impact → Application: Voltage flexibility and 3PH operation at 230/460 V reduces wiring variants and spare parts stock, delivering cost savings and faster deployment on conveyors, pumps, and fans. This translates to quicker install and lower total cost of ownership in continuous-process lines. Feature → Business Impact → Application: TEFC enclosure and frame 326TSC enable robust performance in harsh environments, extending motor life and lowering maintenance cycles for demanding industrial spaces like chemical processing or packaging lines. Feature → Business Impact → Application: IE3 efficiency and 93% rated efficiency cut energy consumption by reducing heat and power draw, improving operating costs across long-running systems such as HVAC, irrigation pumps, and extrusion units. Feature → Business Impact → Application: Direct On Line starting and 60 Hz, 2-pole design provide straightforward start-up and predictable torque for fans, pumps, and presses, minimizing downtime during start-up. Feature → Business Impact → Application: Regreasable bearings and 1.15 service factor offer reliability with easier maintenance planning and longer service intervals, benefiting maintenance teams in distributed manufacturing sites. Feature → Business Impact → Application: C-Face mounting and foot-mounted options simplify installation in retrofit projects or new builds, compatible with standard NEMA bases and Baldor-Reliance catalogs (CEM4114T), reducing integration risk across automation systems.
Get a Quick Quote for a ABB 7BCEM4114T
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 7BCEM4114T?
Enquire Now
FAQs
This motor supports C-Face drive-end mounting and foot-mounted configurations on a 326TSC frame, matching standard NEMA bases and Baldor-Reliance catalog conventions for easy retrofits and new builds.
It delivers 50 HP at 3540 r/min with a rated current of 112 A (or 56 A under certain conditions), operates at 60 Hz, and achieves IE3 premium efficiency, helping reduce energy costs and heat generation in continuous-duty applications.
Yes. With a continuous duty rating, 3-phase operation, and a service factor of 1.15, it provides reliable torque and endurance for pumps, fans, and conveyors in manufacturing environments.
The motor is certified by CSA, CSA EEV, and UR, ensuring compliance with electrical safety and energy standards across North American facilities.
Lead time is 0 days, and the product is stocked at multiple warehouses worldwide, including Menden (Germany), China, Alabama (USA), and Alaska (USA), supporting quick fulfillment.
