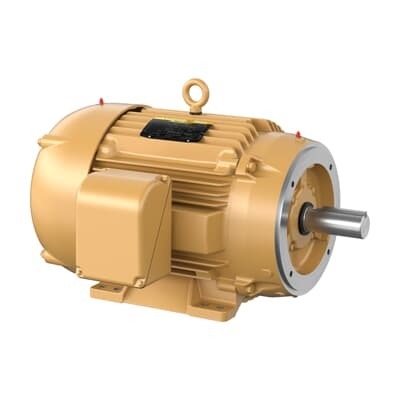

ABB 7BCEM4115T General Purpose Motor - TEFC
Part Number: 7BCEM4115T
Quick Summary
ABB 7BCEM4115T is a general purpose motor designed for three-phase industrial drives and heavy-duty applications across manufacturing and processing environments. This selection helps address downtime and inconsistent performance when sourcing generic motors for mixed loads. Certifications include CSA, CSA EEV, and UR for safety and compliance, complemented by IE3 premium efficiency and NEMA design standards to maximize energy savings. With a TEFC enclosure and a rugged 326TC frame, it integrates smoothly with modern automation systems, delivering reliable torque and ease of installation while reducing total cost of ownership through longer service intervals and simpler spare parts management.
Product Information
Extended Description
7BCEM4115T ABB: General Purpose Motor 50 Hp 230 V (CEM4115T)
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
EGAUT001EXPU
Warranty Return
Product under warranty must be returned
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
GBINS001EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
SGIND004EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
USABB014EXPU
Warranty Return
Product under warranty must be returned
ABB Type Designation
50HP,1775RPM,3PH,60HZ,326TC,1272M,T
Altitude
1000 m
Ambient Temperature
40 °C
Bearing
6312 | Ball
Bearing NDE
6311 | Ball
Brake Present
No
Brand / Label
Baldor-Reliance
Catalog Number
CEM4115T
Certification Agency
CSA | CSA EEV | UR
Country of Origin
United States (US)
Customs Tariff Number
85015230
Design
A
Dimension Diagram
12LYC052: Dimension Sheet
Direction of Rotation
Both sides
Drive End Flange Type
C-Face
Duty Time
60 Min
ETIM 7
EC001851 - Electric motor
Efficiency Level
IE3 | Not Regulated / Exempt | Premium Efficiency (NEMA 12-12)
Electrical Data
Enclosure Type
TEFC
Frame Material
Iron
Frame Size
326
Frequency (f)
60 Hz
Global Commercial Alias
CEM4115T
Gross Volume
18748.226 inÂł
Gross Weight
585 lb
Horsepower Rating UL/CSA
50.000 Hp
IC Class
TEFC
IDEA Granular Category Code (IGCC)
1328 >> Multi phase motor AC
IE Class Data (50 Hz)
IE Class NA
IE Class Data (60 Hz)
IE Class NA
IM Class
NEMA Foot with Face
Insulation Class
F
Invoice Description
50HP,1775RPM,3PH,60HZ,326TC,1272M,TEFC,F
Lubrication
Regreasable
Made To Order
No
Medium Description
General Purpose 3PH Enclosed, 50 HP, 1800 RPM, Frame Size 326Tc, C-Face Mounting, 3 Phase, TEFC Enclosure, 230/460 V, 60 Hz (CEM4115
Minimum Order Quantity
1 piece
Motor Base Type
Foot Mounted
Motor Frame Size
326TC
Motor Frame Suffix
TC
Mounting Orientation
Horizontal
Mounting Position
F1
NEMA Design Code
A
Number of Phases
3
Number of Poles
4P
Number of Poles (High)
4
Number of Speeds
Single Speed
Order Multiple
1 piece
Output Power
50 Hp
Power Factor
85 %
Product Name
General Purpose 3PH Enclosed
Product Net Depth / Length
33.75 in
Product Net Height
21.625 in
Product Net Weight
585 lb
Product Net Width
25.688 in
Product Type
NEMA_PREMIUM
Quote Only
No
Rated Current (In)
116 A | 58 A
Rated Efficiency
94.50 %
Rated Speed
1775 r/min
Replaced Product ID (OLD)
7B12C052Z279G1
Selling Unit of Measure
piece
Service Factor
1.15
Service Factor Percentage
1.15 %
Shaft Diameter
2.13 in
Short Description
50 HP, 1800 RPM, Frame Size 326Tc, C-Face, 3 PH, TEFC, 230/460 V
Standards
NEMA
Starting of Motor
Direct On Line
Stocked At (Warehouses)
Menden, Germany | China | Alabama, United States | Alaska, United States
Synchronous Speed (vsyn)
1800 r/min
Temperature Class Default
--
Two Speed Motor
No
Type of Duty
Continuous
UNSPSC
26101115
Voltage Code
H
Voltage Rating
230 V | 460 V
Feature: Three-phase, 50 HP motor rated for 60 Hz and dual voltage of 230 V / 460 V. Business Impact: Delivers robust torque and speed for conveyors, pumps, and fans while simplifying electrical system design with a single catalog item. Application: Use on mixed-load lines requiring dependable start-up and steady operation in factory floor environments. Feature: TEFC enclosure (Totally Enclosed Fan C cooled). Business Impact: Protects windings and bearings from dust, moisture, and contaminants, extending life in demanding industrial spaces. Application: Suitable for dusty environments, washdown areas, and outdoor installations with limited climate control. Feature: 326TC frame, foot-mounted with C-face drive end. Business Impact: Enables straightforward mounting and compatibility with a wide range of couplings, bases, and vibration-mitigating supports. Application: Retrofit or new installation on existing 326TC footprint machines and equipment. Feature: IE3 premium efficiency and 94.50% rated efficiency. Business Impact: Reduces energy costs over the motor’s lifetime and supports sustainability programs, improving total cost of ownership. Application: Ideal for continuously running loads with substantial duty cycles in modern plants. Feature: Direct-On-Line starting, 4-pole, 1775 r/min nominal speed, 60 Min duty. Business Impact: Simplifies control schemes and reduces soft-start requirements while meeting continuous duty needs. Application: Suitable for conveyors, mixers, and process equipment requiring reliable on/off control. Feature: 585 lb gross weight, shaft diameter 2.13 in, and 63XX bearings. Business Impact: Indicates strong mechanical robustness and long bearing life with predictable maintenance windows. Application: Heavy-duty mechanical interfaces in long-life manufacturing lines. Feature: Dual voltage 230/460 V and 3-phase operation with NEMA design code A. Business Impact: Drops wiring complexity and enables flexible installation across different plant electrical systems. Application: Global plants with varying voltage standards; easy spares and serviceability.
Get a Quick Quote for a ABB 7BCEM4115T
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 7BCEM4115T?
Enquire Now
FAQs
The ABB 7BCEM4115T uses a 326TC frame with foot-mounted installation and a C-Face drive end. This combination provides straightforward mounting on standard bases and compatible couplings, simplifying retrofits and new builds while maintaining alignment and vibration control in typical industrial environments.
This is a 3-phase, 4-pole motor rated for 60 Hz with dual voltage capability of 230 V or 460 V. It delivers 50 HP at approximately 1775 r/min with a service factor of 1.15 and an efficiency of about 94.5% (IE3 premium). Direct-on-line starting is supported for simple control schemes.
Yes. The motor is designed for continuous duty with a 60-minute duty rating, 3-phase operation, and a robust TEFC enclosure. Its 1.15 service factor provides an additional margin for brief overloads, making it well-suited to conveyors, pumps, and similar continuous-load applications.
This model lists CSA, CSA EEV, and UR as certification agencies, supporting safe operation and compliance in North American and international settings. The IE3 premium efficiency designation and NEMA design features further reinforce reliability, energysaving performance, and regulatory alignment.
Lubrication is rated as regreasable, and bearings are specified as robust ball bearings (6312), supporting longer service intervals. The TEFC enclosure protects internal components from contaminants, reducing maintenance frequency. Regular inspection of shaft seals, mounting integrity, and alignment will further extend bearing life and minimize downtime.
