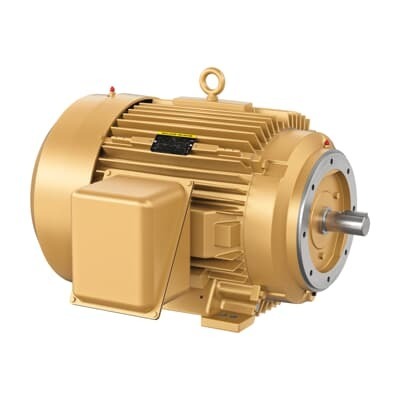

ABB 7BCEM4310T General Purpose Motor - NEMA Premium
Part Number: 7BCEM4310T
Quick Summary
ABB 7BCEM4310T General Purpose Motor drives large equipment in industrial settings. The main challenge engineers face is balancing upfront motor cost with long-term energy use and downtime. This motor meets NEMA Premium efficiency, UR listing, and CSA-US certifications, helping reduce energy bills and ensure regulatory compliance. With a TEFC enclosure, 230/460 V operation, and a rugged 364TSC frame, it delivers reliable performance for pumps, conveyors, and fans in harsh environments. Coupled with its 60 HP rating and 3-phase 60 Hz design, it supports scalable, maintenance-friendly installations.
Product Information
Extended Description
7BCEM4310T ABB: General Purpose Motor 60 Hp 230 V (CEM4310T)
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
EGAUT001EXPU
Warranty Return
Product under warranty must be returned
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
GBINS001EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
SGIND004EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
USABB014EXPU
Warranty Return
Product under warranty must be returned
ABB Type Designation
60HP,3560RPM,3PH,60HZ,364TSC,A36056
Altitude
1000 m
Ambient Temperature
40 °C
Bearing
6313, Ball
Bearing NDE
6313
Brake Present
No
Brand / Label
Baldor-Reliance®
Catalog Number
CEM4310T
Certification Agency
CCSAUSEEV | NEMA_PREMIUM | UR
Country of Origin
United States (US)
Customs Tariff Number
85015230
Design
B
Dimension Diagram
A36C-0000000032
Direction of Rotation
Both sides
Drive End Flange Type
C-Face
Duty Time
60 Min
ETIM 7
EC001851 - Electric motor
Efficiency Level
Premium Efficiency (NEMA 12-12)
Electrical Data
Enclosure Type
TEFC
Frame Material
Iron
Frame Size
364
Frequency (f)
60 Hz
Global Commercial Alias
CEM4310T
Gross Volume
33833.008 inÂł
Gross Weight
376.482 kg
Horsepower Rating UL/CSA
60.000 Hp
IC Class
TEFC
IDEA Granular Category Code (IGCC)
1325 >> General purpose motor AC
IE Class Data (50 Hz)
IE Class NA
IE Class Data (60 Hz)
IE Class NA
IM Class
NEMA Foot with Face
Insulation Class
F
Invoice Description
60HP,3560RPM,3PH,60HZ,364TSC,A36056M,TEF
Lubrication
Regreasable
Made To Order
No
Maximum Speed
2700 r/min
Medium Description
General Purpose 3PH Enclosed, 60 HP, 3600 RPM, Frame Size 364Tsc, C-Face Mounting, 3 Phase, TEFC Enclosure, 230/460 V, 60 Hz (CEM431
Minimum Order Quantity
1 piece
Motor Base Type
Foot Mounted
Motor Frame Size
364TSC
Motor Frame Suffix
TSC
Mounting Orientation
Horizontal
Mounting Position
F1
NEMA Design Code
B
Number of Phases
3
Number of Poles
2P
Number of Poles (High)
2
Number of Speeds
single_speed
Order Multiple
1 piece
Output Power
60 Hp
Power Factor
91 %
Product Name
General Purpose 3PH Enclosed
Product Net Depth / Length
40.625 in
Product Net Height
25.625 in
Product Net Weight
376.482 kg
Product Net Width
32.5 in
Product Type
NEMA_PREMIUM
Quote Only
No
Rated Current (In)
135 A | 67.3 A
Rated Efficiency
94.50 %
Rated Speed
3555 r/min
Selling Unit of Measure
piece
Service Factor
1.15
Service Factor Percentage
1.15 %
Shaft Diameter
1.88 in
Short Description
60 HP, 3600 RPM, Frame Size 364Tsc, C-Face, 3 PH, TEFC, 230/460 V
Standards
NEMA
Starting of Motor
Direct on line
Stocked At (Warehouses)
Menden, Germany | China | Alabama, United States | Alaska, United States
Synchronous Speed (vsyn)
3600 r/min
Temperature Class Default
--
Two Speed Motor
No
Type of Duty
Continuous
UNSPSC
26101112
Voltage Code
F
Voltage Rating
230 V | 460 V
Feature → Business Impact → Application: 60 HP output at 3555 r/min delivers robust mechanical power for belt-driven conveyors, pumps, and fans, reducing cycle times and improving throughput in manufacturing environments. This aligns with energy-saving goals through Premium Efficiency (NEMA Premium), lowering operating costs while maintaining performance in continuous duty applications. Application: general purpose motor for industrial processes requiring reliable torque and speed consistency. Feature → Business Impact → Application: TEFC enclosure provides weather and dust protection, minimizing contamination risks and extending service life in harsh plant floors. This enables easier installation in dusty or humid facilities and reduces maintenance downtime. Feature → Business Impact → Application: C-face mounting and 364TSC frame with foot mounting supports straightforward retrofit and new builds, enabling quick alignment with existing equipment and standardized componentry. Application: retrofits and new line installations across pumps, fans, and mixers. Feature → Business Impact → Application: Regreasable bearings and a 60-minute duty rating offer long intervals between servicing, lowering maintenance costs and reducing unplanned downtime. Application: continuous operation in conveyor drives and processing lines. Feature → Business Impact → Application: NEMA design code B and 3-phase, 60 Hz operation ensure compatibility with common industrial controls and VFDs, simplifying wiring and startup. Application: PLC-controlled motor systems in automated lines. Feature → Business Impact → Application: 230/460 V dual voltage capability supports flexible supply strategies and easier integration into mixed-voltage facilities, reducing inventory and simplifying procurement. Application: multi-site deployments and OEM integrations.
Get a Quick Quote for a ABB 7BCEM4310T
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 7BCEM4310T?
Enquire Now
FAQs
For installation, use the foot-mounted, horizontal orientation with the C-face mounting options on a solid base. Ensure proper alignment with the driven equipment, provide adequate clearance for cooling, and follow standard TEFC enclosure installation practices. The 364TSC frame should match your mounting footprint to minimize modification work and downtime.
The motor carries NEMA Premium efficiency rating and is built for continuous duty with a 60-minute duty time specification. Its robust 60 HP rating at 60 Hz, combined with a TEFC enclosure and durable bearings, reduces energy consumption, lowers operational costs, and supports long, uninterrupted run times in conveyors and pump lines.
Yes. With 230/460 V dual voltage capability, 3-phase 60 Hz operation, and a 364TSC frame, it integrates smoothly with standard VFDs and motor controls. Its NEMA design and insulation class F further ensure compatibility with typical plant control architectures while maintaining reliability in demanding environments.
The 7BCEM4310T carries NEMA Premium efficiency, UR listing, and CSA-US compatibility. These certifications support regulatory compliance for energy efficiency, electrical safety, and market approvals in North American markets and regulated industrial environments.
Regreasable bearings and a robust TEFC design reduce maintenance frequency and extend service life, lowering maintenance costs. The energy efficiency of the NEMA Premium rating translates to reduced electricity usage, delivering measurable ROI over equipment uptime, especially in continuous-duty applications like pumping and material handling.
