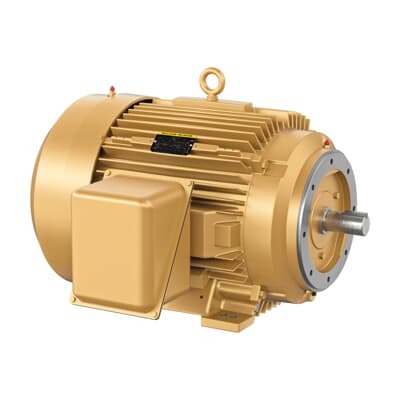

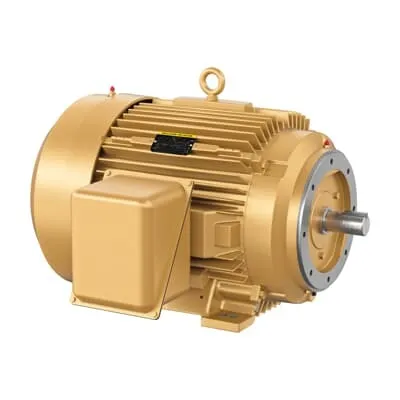

ABB 7BCEM4313T General Purpose Motor - NEMA Premium
Part Number: 7BCEM4313T
Quick Summary
ABB 7BCEM4313T General Purpose Motor delivers reliable 75 HP performance for industrial drives in manufacturing facilities. This design helps minimize downtime and motor wear by relying on a robust TEFC enclosure and precision components under heavy loads. It carries NEMA Premium efficiency standards and UR recognition to support regulatory compliance and energy savings. With a 230/460 V, 60 Hz, 3-phase configuration and a standardized 365TSC frame, it integrates smoothly into existing lineups, reducing stocking complexity. For procurement teams, the model offers predictable lead times and proven compatibility with common drive systems, supporting optimized maintenance budgets and faster project timelines.
Product Information
Extended Description
7BCEM4313T ABB: General Purpose Motor 75 Hp 230 V (CEM4313T)
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
EGAUT001EXPU
Warranty Return
Product under warranty must be returned
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
GBINS001EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
SGIND004EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
USABB014EXPU
Warranty Return
Product under warranty must be returned
ABB Type Designation
75HP,3555RPM,3PH,60HZ,365TSC,A36068
Altitude
1000 m
Ambient Temperature
40 °C
Bearing
6313, Ball
Bearing NDE
6313
Brake Present
No
Brand / Label
Baldor-Reliance®
Catalog Number
CEM4313T
Certification Agency
CCSAUSEEV | NEMA_PREMIUM | UR
Country of Origin
United States (US)
Customs Tariff Number
85015230
Design
B
Dimension Diagram
A36C-0000000033
Direction of Rotation
Both sides
Drive End Flange Type
C-Face
Duty Time
60 Min
ETIM 7
EC001851 - Electric motor
Efficiency Level
Premium Efficiency (NEMA 12-12)
Electrical Data
Enclosure Type
TEFC
Frame Material
Iron
Frame Size
365
Frequency (f)
60 Hz
Global Commercial Alias
CEM4313T
Gross Volume
33833.008 in³
Gross Weight
905 lb
Horsepower Rating UL/CSA
75.000 Hp
IC Class
TEFC
IDEA Granular Category Code (IGCC)
1325 >> General purpose motor AC
IE Class Data (50 Hz)
IE Class NA
IE Class Data (60 Hz)
IE Class NA
IM Class
NEMA Foot with Face
Insulation Class
F
Invoice Description
75HP,3555RPM,3PH,60HZ,365TSC,A36068M,TEF
Lubrication
Regreasable
Made To Order
No
Maximum Speed
4500 r/min
Medium Description
General Purpose 3PH Enclosed, 75 HP, 3600 RPM, Frame Size 365Tsc, C-Face Mounting, 3 Phase, TEFC Enclosure, 230/460 V, 60 Hz (CEM431
Minimum Order Quantity
1 piece
Motor Base Type
Foot Mounted
Motor Frame Size
365TSC
Motor Frame Suffix
TSC
Mounting Orientation
Horizontal
Mounting Position
F1
NEMA Design Code
B
Number of Phases
3
Number of Poles
2P
Number of Poles (High)
2
Number of Speeds
single_speed
Order Multiple
1 piece
Output Power
75 Hp
Power Factor
92 %
Product Name
General Purpose 3PH Enclosed
Product Net Depth / Length
40.625 in
Product Net Height
25.625 in
Product Net Weight
905 lb
Product Net Width
32.5 in
Product Type
NEMA_PREMIUM
Quote Only
No
Rated Current (In)
167 A | 83.4 A
Rated Efficiency
93.60 %
Rated Speed
3555 r/min
Selling Unit of Measure
piece
Service Factor
1.15
Service Factor Percentage
1.15 %
Shaft Diameter
1.88 in
Short Description
75 HP, 3600 RPM, Frame Size 365Tsc, C-Face, 3 PH, TEFC, 230/460 V
Standards
NEMA
Starting of Motor
Direct on line
Stocked At (Warehouses)
Menden, Germany | China | Alabama, United States | Alaska, United States
Synchronous Speed (vsyn)
3600 r/min
Temperature Class Default
--
Two Speed Motor
No
Type of Duty
Continuous
UNSPSC
26101112
Voltage Code
E
Voltage Rating
230 V | 460 V
75 HP 3PH motor with 230/460 V rating optimizes energy use for mixed-voltage installations, delivering consistent torque and reliable operation across pumps, fans, and conveyors. Feature → Business Impact → Application: TEFC enclosure provides dust, moisture, and grime resistance, reducing maintenance cycles and prolonging motor life in harsh environments like manufacturing floors and material handling lines. Application: heavy-duty conveyors and process equipment benefit from lower downtime and longer service life. Feature → Business Impact → Application: NEMA Premium efficiency (93.60%) lowers energy costs and supports sustainability goals in facilities running continuous loads such as compressors or cooling fans. Application: energy-conscious pump packs and HVAC-driven processes. Feature → Business Impact → Application: 1.15 service factor enables safer operation during short overloads or startup surges, improving process stability in mills, mixers, and material transport systems. Application: reduces nuisance tripping and enhances production uptime. Feature → Business Impact → Application: Regreasable bearings and Ball bearing (6313) design extend bearing life and simplify maintenance planning. Application: maintenance teams schedule lubrication intervals and optimize uptime. Feature → Business Impact → Application: Foot mounting with C-face drive end flange (365TSC) simplifies installation and replacement, minimizing downtime during retrofits and new builds. Application: retrofit projects and OEM equipment installations. The motor’s 2-pole, 3555 r/min nominal speed aligns with common conveyor and pump driven lines operating at 60 Hz, enabling straightforward drivetrain matching and reduced mechanical redesigns. Application: standard industrial drives and process automation.
Get a Quick Quote for a ABB 7BCEM4313T
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 7BCEM4313T?
Enquire Now
FAQs
The 7BCEM4313T uses a 365TSC frame with a TEFC enclosure and C-Face drive end flange, designed for horizontal foot-mounted installations. It fits standard OEM motor mounts and couplings, enabling seamless retrofit into existing equipment and short lead times for spares. Ensure alignment with the 1.88 in shaft and 2P, 3Ø, 60 Hz electrical requirements to maintain peak efficiency and torque delivery.
Key specs include 75 HP, 3555 r/min rated speed (60 Hz), 230/460 V voltage, 3 phases, 2 poles, service factor 1.15, insulation class F, efficiency 93.60%, and TEFC enclosure. The shaft diameter is 1.88 in, and the motor uses a ball bearing design (6313). These specs support reliable startup, steady torque, and compatibility with common industrial drives.
Yes. The TEFC enclosure protects internal windings from dust, moisture, and contaminants typical in pumps and conveyors. Coupled with NEMA Premium efficiency and a regreasable bearing system, it delivers reliable performance with longer maintenance intervals, supporting continuous operation in mixed-process plants and material handling lines.
The 7BCEM4313T carries NEMA Premium efficiency and UR recognition, with additional certification references such as CCUSA. These credentials support energy compliance, reliability, and safety requirements for U.S. manufacturing and industrial installations, easing procurement audits and project approvals.
Regreasable bearings and a robust TEFC design minimize unexpected downtime, while high efficiency reduces energy costs. With a 1.15 service factor and durable frame (365TSC), you can expect lower lifecycle costs, improved uptime, and a favorable payback period on projects involving pumps, fans, and conveyors.
