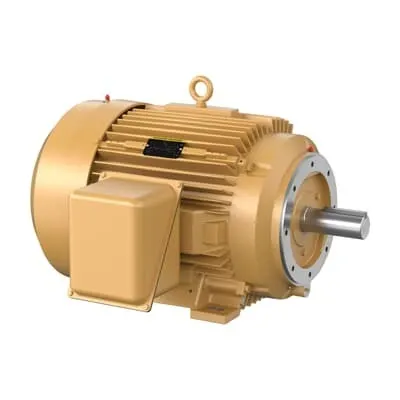

ABB 7BCEM4314T General Purpose Motor - Premium Efficiency
Part Number: 7BCEM4314T
Quick Summary
ABB 7BCEM4314T General Purpose Motor delivers reliable 60 HP performance for demanding industrial equipment such as pumps, conveyors, and fans. This motor addresses downtime, energy waste, and misapplication by providing a robust TEFC housing and precise 364TC frame fit. It carries key certifications that matter in industrial settings, including NEMA Premium efficiency, UL/UR recognition, and CCSAUSEEV listings, which support compliance and documentation during audits. With United States origin and zero lead time, the product supports lean procurement. Designed for direct-on-line startups and easy maintenance, this motor combines excellent efficiency with strong stock availability across multiple warehouses, helping engineers reduce total cost of ownership while keeping line uptime high.
Product Information
Extended Description
7BCEM4314T ABB: General Purpose Motor 60 Hp 230 V (CEM4314T)
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
EGAUT001EXPU
Warranty Return
Product under warranty must be returned
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
GBINS001EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
SGIND004EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
USABB014EXPU
Warranty Return
Product under warranty must be returned
ABB Type Designation
60HP,1780RPM,3PH,60HZ,364TC,A3658M,
Altitude
1000 m
Ambient Temperature
40 °C
Bearing
6313, Ball
Bearing NDE
6313
Brake Present
No
Brand / Label
Baldor-Reliance®
Catalog Number
CEM4314T
Certification Agency
CCSAUSEEV | NEMA_PREMIUM | UR
Country of Origin
United States (US)
Customs Tariff Number
85015230
Design
B
Dimension Diagram
A36C-0000000030
Direction of Rotation
Both sides
Drive End Flange Type
P-Base
Duty Time
60 Min
ETIM 7
EC001851 - Electric motor
Efficiency Level
Premium Efficiency (NEMA 12-12)
Electrical Data
Enclosure Type
TEFC
Frame Material
Iron
Frame Size
364
Frequency (f)
60 Hz
Global Commercial Alias
CEM4314T
Gross Volume
33833.008 inÂł
Gross Weight
415.037 kg
Horsepower Rating UL/CSA
60.000 Hp
IC Class
TEFC
IDEA Granular Category Code (IGCC)
1325 >> General purpose motor AC
IE Class Data (50 Hz)
IE Class NA
IE Class Data (60 Hz)
IE Class NA
IM Class
NEMA Foot with Face
Insulation Class
F
Invoice Description
60HP,1780RPM,3PH,60HZ,364TC,A3658M,TEFC
Lubrication
Regreasable
Made To Order
No
Maximum Speed
2700 r/min
Medium Description
General Purpose 3PH Enclosed, 60 HP, 1800 RPM, Frame Size 364Tc, PBase Mounting, 3 Phase, TEFC Enclosure, 230/460 V, 60 Hz (CEM4314T
Minimum Order Quantity
1 piece
Motor Base Type
Foot Mounted
Motor Frame Size
364TC
Motor Frame Suffix
TC
Mounting Orientation
Horizontal
Mounting Position
F1
NEMA Design Code
B
Number of Phases
3
Number of Poles
4P
Number of Poles (High)
4
Number of Speeds
single_speed
Order Multiple
1 piece
Output Power
60 Hp
Power Factor
84 %
Product Name
General Purpose 3PH Enclosed
Product Net Depth / Length
40.625 in
Product Net Height
25.625 in
Product Net Weight
415.037 kg
Product Net Width
32.5 in
Product Type
NEMA_PREMIUM
Quote Only
No
Rated Current (In)
136 A | 68 A
Rated Efficiency
95 %
Rated Speed
1780 r/min
Selling Unit of Measure
piece
Service Factor
1.15
Service Factor Percentage
1.15 %
Shaft Diameter
2.38 in
Short Description
60 HP, 1800 RPM, Frame Size 364Tc, PBase, 3 PH, TEFC, 230/460 V
Standards
NEMA
Starting of Motor
Direct on line
Stocked At (Warehouses)
Menden, Germany | China | Alabama, United States | Alaska, United States
Synchronous Speed (vsyn)
1800 r/min
Temperature Class Default
--
Two Speed Motor
No
Type of Duty
Continuous
UNSPSC
26101112
Voltage Code
G
Voltage Rating
230 V | 460 V
Feature → Business Impact → Application: TEFC enclosure provides a robust, dust- and moisture-resistant exterior, reducing contamination and extending motor life, which translates to lower maintenance costs and reduced downtime on critical lines such as packaging or material handling. Application: conveyors, pumps, and fans operating in harsh environments benefit from longer service intervals and predictable performance. Feature → Business Impact → Application: 364TC frame with P-Base mounting enables straightforward retrofit or replacement in existing equipment footprints, minimizing installation complexity and downtime during upgrades. Application: OEM machinery and retrofits on machines with space-constrained footprints. Feature → Business Impact → Application: Premium Efficiency (NEMA) and a 1.15 service factor deliver energy savings and reliable torque under load, cutting operating costs while maintaining performance for continuous duty processes such as cooling pumps and extruders. Application: continuous-duty conveyors and process equipment. Feature → Business Impact → Application: Dual voltage 230/460 V and 60 Hz compatibility simplify electrical design and stock management, reducing wiring variants and spare parts inventory. Application: mixed-voltage facilities and multi-site installations. Feature → Business Impact → Application: Direct-on-line starting and regreasable lubrication minimize startup torque concerns and maintenance intervals, offering predictable startup behavior and easy lubrication cycles. Application: automated lines, blowers, and water handling systems.
Get a Quick Quote for a ABB 7BCEM4314T
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 7BCEM4314T?
Enquire Now
FAQs
For installation, plan foot-mounted, P-Base mounting to match the 364TC frame and horizontal mounting orientation. Verify shaft diameter of 2.38 in and ensure compatible couplings. Consider direct on line starting to simplify electrical wiring and minimize soft-start requirements. Confirm space for the TEFC enclosure and allowance for proper airflow and service access to support regreasable lubrication.
The motor operates on 230/460 V, 3-phase at 60 Hz with a rated current of 136 A / 68 A. Dual voltage support reduces transformer or interconnect complexity. Plan for DOL starting capability and ensure circuit protection, wiring gauge, and motor starter sizing align with the 60 HP rating and service factor of 1.15 for reliable operation.
Yes. The unit is rated for continuous duty with a service factor of 1.15 and a 60 Minute duty time specification, supporting steady operation in pumping and conveying applications. The TEFC enclosure provides environmental protection, while the Premium Efficiency design helps maintain performance under continuous loading with lower energy costs.
This motor carries NEMA Premium efficiency certification and UR recognition, with listings such as CCSAUSEEV noted in the product data. These certifications support energy compliance, safe operation, and ease of procurement across U.S. and international facilities, easing audits and supplier qualification processes.
ROI benefits come from energy savings due to Premium Efficiency and reduced downtime from a robust TEFC design and low-maintenance lubrication (regreasable). Expect predictable maintenance cycles aligned with the 60-minute duty schedule, straightforward shaft alignment, and durable components such as the 364TC frame and 6313 ball bearings, contributing to lower total cost of ownership over the motor life.
